Name: Teltonika TSW212: Powerful Managed Gigabit Switch | AirPath
Price: 15510.00 INR
Availability: InStock

Teltonika TSW212 is a managed Gigabit Ethernet switch designed for industrial networks that require flexible network management, high-speed connectivity, and reliable wired communication. With eight Gigabit Ethernet ports and two SFP ports, it provides a practical platform for connecting multiple Ethernet devices while supporting fiber-based network links.

Table of Contents

Teltonika TSW212 Key Features

Teltonika TSW212 combines eight 10/100/1000 Mbps Ethernet ports with two SFP ports in an industrial managed switch. It is designed for networks where administrators need more control over connected devices, traffic, VLANs, and network operation than a basic unmanaged switch can provide.

The switch supports managed networking features including VLAN, STP/RSTP, port isolation, port mirroring, link speed control, and QoS. As a result, network administrators can organize traffic and configure the switch according to the requirements of different connected devices and network segments.

Its Gigabit interfaces provide high-speed wired connectivity, while the two SFP ports allow compatible fiber modules to be used for longer network links. Consequently, the switch can support both copper Ethernet connections and fiber-based network infrastructure.

Managed Network Management

Teltonika TSW212 provides Layer 2 management capabilities for controlling how network traffic moves through the switch. Supported features include IEEE 802.1Q VLAN, STP/RSTP, loop protection, port isolation, port mirroring, and link speed configuration.

The switch also supports 802.1x port-based network access control and QoS functionality. Because managed network environments often require traffic separation and controlled access, these features can help administrators structure Ethernet networks more effectively.

For example, VLAN configuration can be used to separate different network segments, while port mirroring can help with network monitoring. Similarly, QoS can be configured where traffic handling requirements make prioritization useful.

Gigabit Ethernet and SFP Connectivity

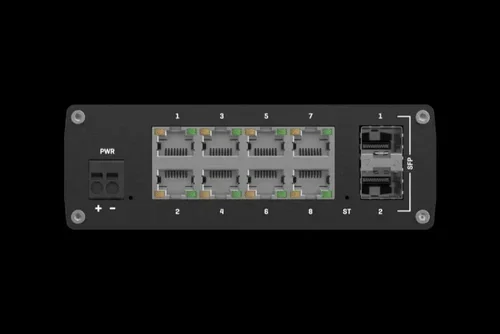

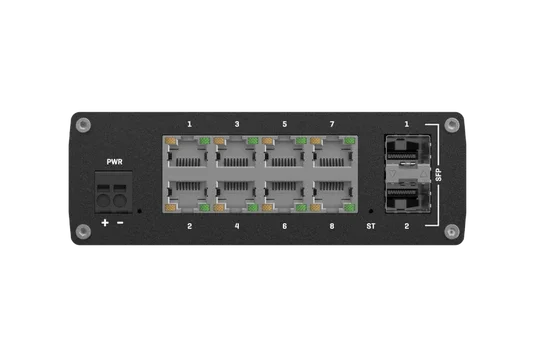

The eight RJ45 Ethernet ports support 10/100/1000 Mbps speeds, allowing the switch to connect Gigabit-capable network equipment. Auto MDI/MDIX support simplifies Ethernet connections by automatically handling the required cable configuration.

Teltonika TSW212 also provides two SFP ports for fiber-optic connectivity. This is useful when network equipment needs to communicate across longer distances or when fiber is preferred for a particular network segment.

The switch provides 20 Gbps non-blocking bandwidth, a 128 KB packet buffer, and a 2K MAC address table. It also supports jumbo frames up to 9216 bytes, providing additional flexibility for compatible network environments.

Industrial Design and Installation

The switch uses an aluminium housing designed for industrial networking environments. It supports DIN rail mounting as well as wall or flat-surface installation with the appropriate mounting arrangement.

Teltonika TSW212 has an operating temperature range of -40 °C to 75 °C and supports 10% to 90% non-condensing humidity. However, the installation environment should still be selected according to the device’s specified operating conditions.

The device uses a 2-pin industrial DC power socket and supports a 9–57 VDC input range. Its compact industrial form factor makes it suitable for network installations where reliable mounting and controlled power input are important.

Applications

Teltonika TSW212 can be used in industrial Ethernet networks, factory infrastructure, automation environments, smart infrastructure, surveillance networks, and other applications that require managed Gigabit connectivity. The combination of RJ45 and SFP ports allows different network connection types to be integrated into one switch.

For example, several industrial Ethernet devices can be connected through the Gigabit RJ45 ports while an SFP port provides a fiber uplink to another network section. Managed features can then be used to separate traffic, control ports, and organize network communication according to the installation requirements.

It can also be useful in installations where network administrators need more visibility and control than an unmanaged switch provides. The available management functions allow the network to be configured rather than simply connecting devices together.

Technical Specifications

Product: TSW212 Managed Gigabit Ethernet Switch
Ethernet ports: 8 × RJ45
Ethernet speed: 10/100/1000 Mbps
SFP ports: 2
Switch type: Managed
Non-blocking bandwidth: 20 Gbps
Packet buffer: 128 KB
MAC address table: 2K entries
Jumbo frame support: 9216 bytes
VLAN: IEEE 802.1Q
Spanning Tree: STP/RSTP
Network features: Loop protection, port isolation, port mirroring, QoS
Access control: 802.1x port-based network access control
Ethernet interface: Auto MDI/MDIX
Power connector: 2-pin industrial DC power socket
Input voltage: 9–57 VDC
Housing: Aluminium
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Mounting: DIN rail, wall, or flat surface

Buy Teltonika TSW212 in India

If you need a managed Gigabit switch with SFP connectivity for an industrial or professional network, Teltonika TSW212 provides multiple Ethernet interfaces and network management capabilities in one device. You can explore related products through AirPath’s industrial Ethernet switches category.

Before selecting the switch, check the required number of Ethernet connections, SFP requirements, power input, mounting arrangement, and management features for your installation. For complete manufacturer information and technical documentation, visit the official Teltonika Networks TSW212 product page.

Frequently Asked Questions

What is Teltonika TSW212?

Teltonika TSW212 is a managed Gigabit Ethernet switch with eight 10/100/1000 Mbps RJ45 ports and two SFP ports for fiber connectivity.

Is Teltonika TSW212 a managed switch?

Yes. Teltonika TSW212 provides managed networking features such as VLAN, STP/RSTP, port isolation, port mirroring, QoS, and 802.1x port-based network access control.

Does Teltonika TSW212 support SFP?

Yes. The switch has two SFP ports that can be used for compatible fiber-optic network connections.

What is the operating temperature of Teltonika TSW212?

The specified operating temperature range is -40 °C to 75 °C, with operating humidity of 10% to 90% non-condensing. Teltonika TSW212 is therefore designed for suitable industrial networking installations within these conditions.
