Name: Teltonika TSW210: Reliable Gigabit Switch with SFP | AirPath
Price: 13570.00 INR
Availability: InStock

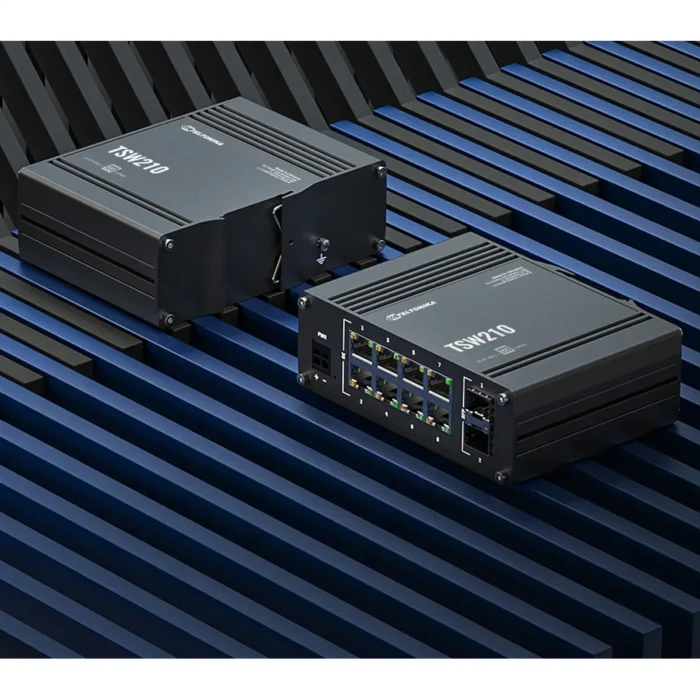

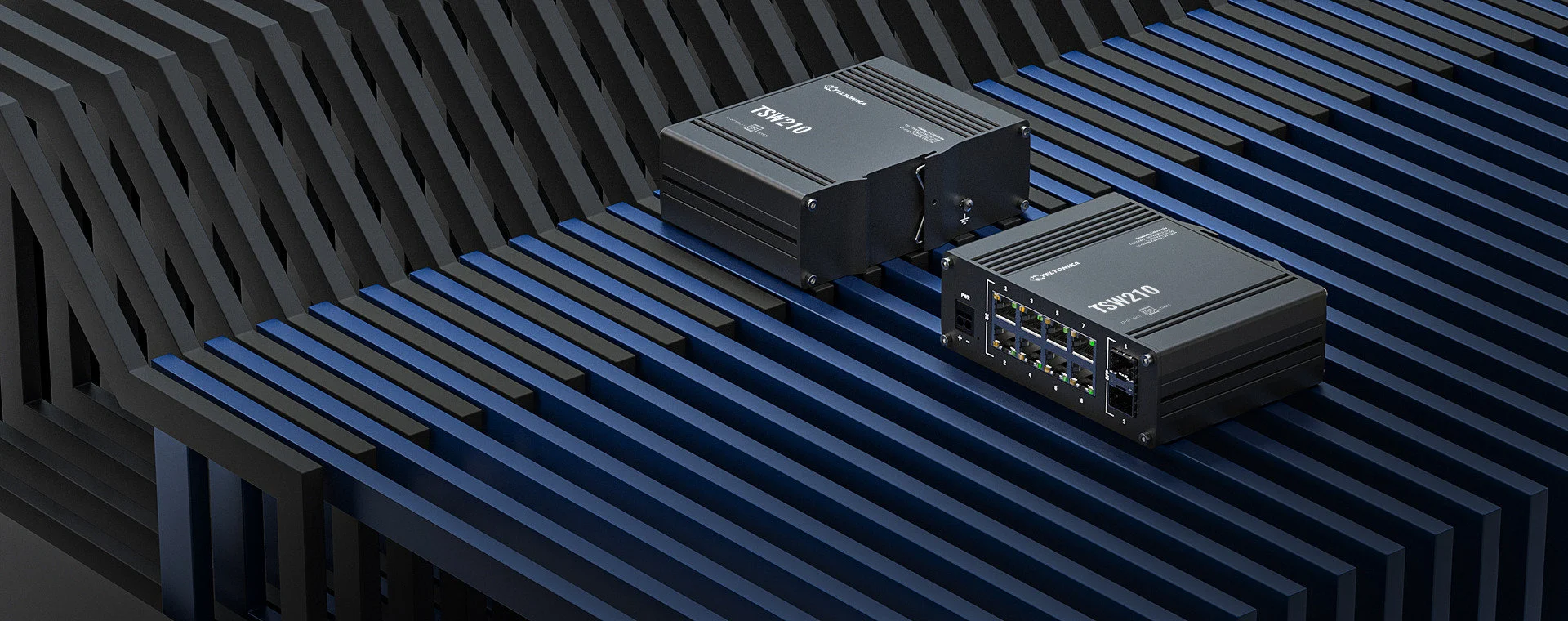

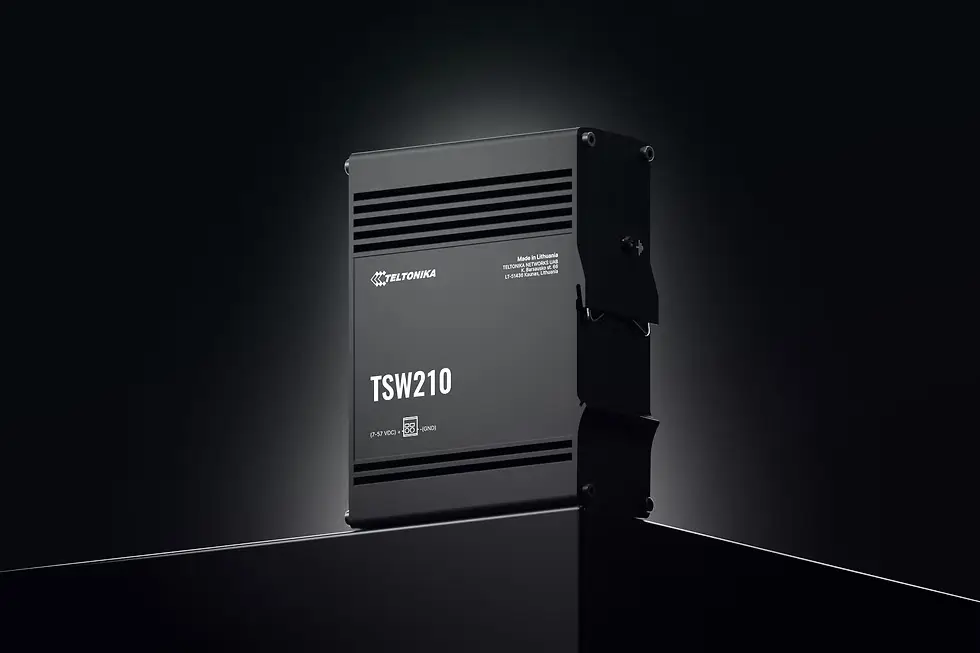

Teltonika TSW210 is an industrial Gigabit Ethernet switch designed to connect multiple network devices while providing SFP connectivity for longer fiber-optic links. With eight Gigabit Ethernet ports, two SFP ports, plug-and-play operation, and industrial mounting options, it provides a straightforward solution for expanding wired networks.

Table of Contents

Teltonika TSW210 Key Features

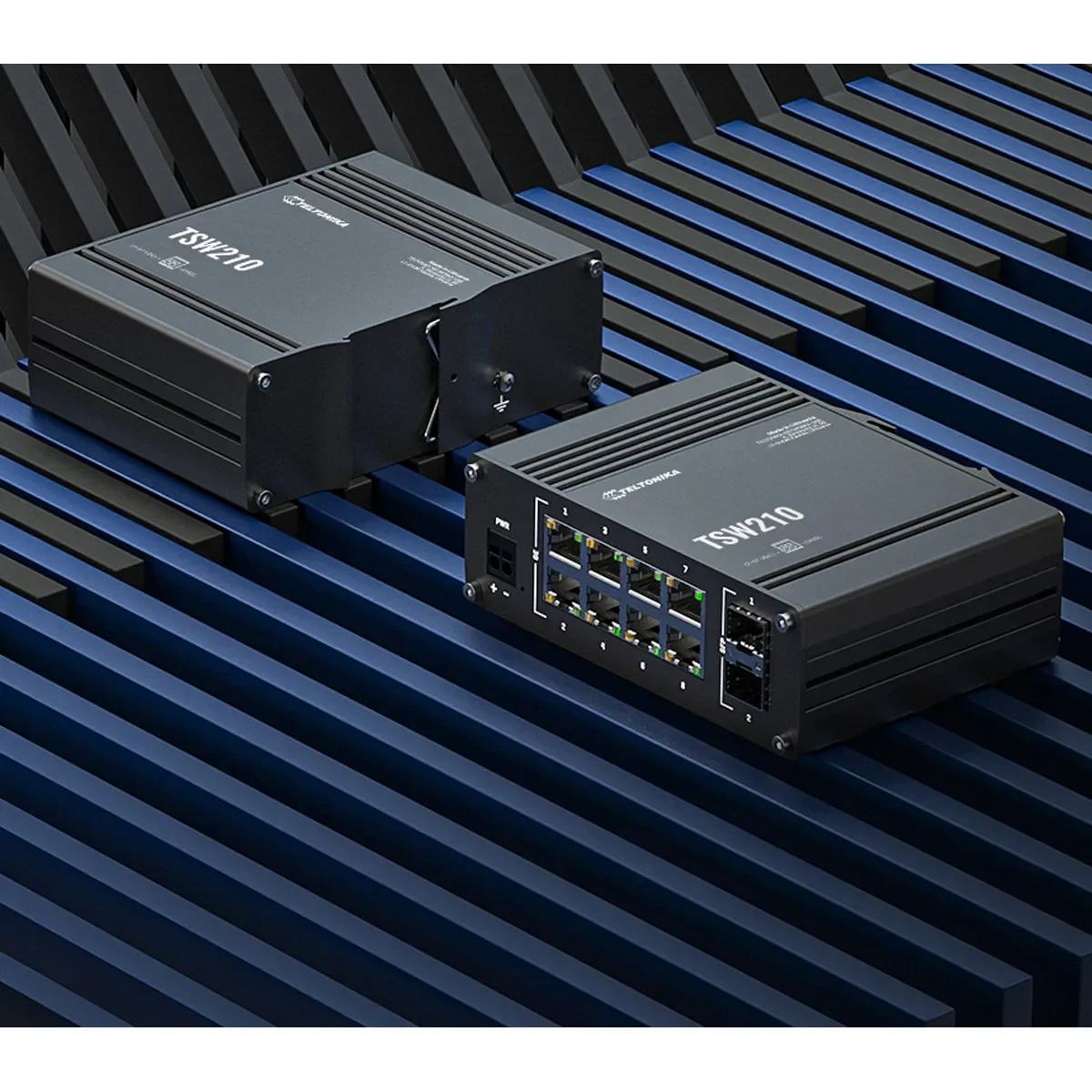

Teltonika TSW210 combines eight Gigabit Ethernet ports with two SFP ports in a compact industrial switch. The Ethernet interfaces support 10/100/1000 Mbps speeds, allowing the device to connect multiple network endpoints while maintaining Gigabit connectivity where supported.

The switch is unmanaged and designed for plug-and-play operation, so no additional configuration is required for basic network connectivity. As a result, it can be added to an existing Ethernet network without introducing complex switch configuration.

Its hardware also includes 20 Gbps non-blocking bandwidth, a 128 KB packet buffer, a 2K MAC address table, and jumbo frame support up to 9216 bytes. These specifications provide the switching capacity required for networks with multiple connected Gigabit devices.

Gigabit Ethernet Connectivity

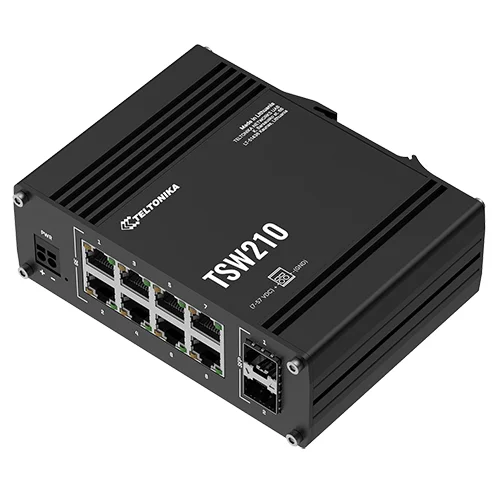

The eight RJ45 Ethernet ports support 10/100/1000 Mbps operation and Auto MDI/MDIX crossover detection. This allows compatible devices to establish Ethernet connections without requiring manual crossover cable selection.

Because the ports support multiple Ethernet speeds, the switch can connect devices operating at different link rates within the same network. The Ethernet interfaces also support IEEE 802.3 series standards, including 802.3i, 802.3u, 802.3ab, 802.3x, and 802.3az.

For example, computers, network equipment, industrial devices, and other Ethernet-enabled endpoints can be connected through the available RJ45 ports. The switch then forwards network traffic between connected devices without requiring additional configuration.

SFP Fiber Connectivity

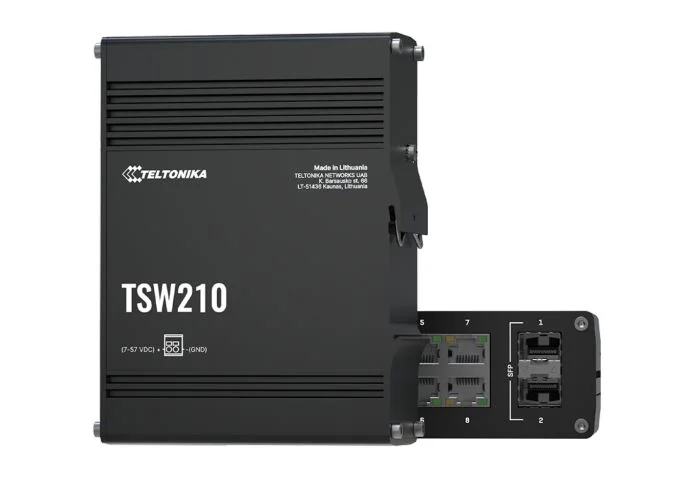

Teltonika TSW210 includes two SFP ports for optical network connections and long-range fiber-optic communication. This is useful when network segments are separated by distances where copper Ethernet cabling may not be the preferred connection method.

The SFP interfaces work alongside the eight Gigabit Ethernet ports, allowing copper and fiber connectivity to be used within the same network infrastructure. Consequently, the switch can help connect local Ethernet devices while also providing fiber-based links between network sections.

The device supports 20 Gbps of non-blocking bandwidth, 128 KB packet buffering, and a 2K-entry MAC address table. Jumbo frames up to 9216 bytes are also supported, providing additional flexibility for compatible network environments.

Industrial Design and Installation

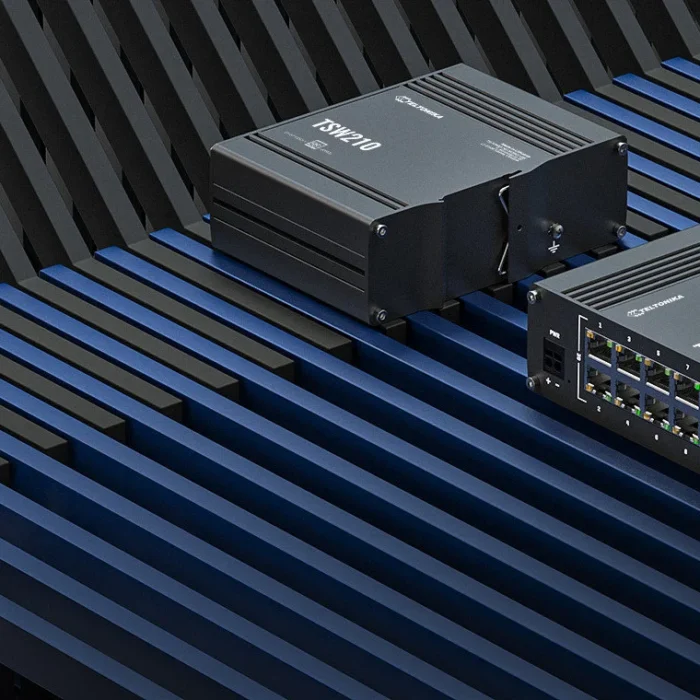

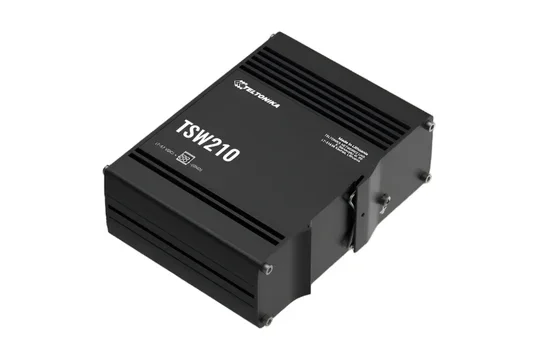

The switch uses a full aluminium housing and is designed for industrial installation. It supports an integrated DIN rail mounting option, while wall mounting and flat-surface placement are also available with the required additional mounting kit.

Teltonika TSW210 operates across a temperature range of -40 °C to 75 °C and supports 10% to 90% non-condensing humidity. It also has an IP30 ingress protection rating, making the device suitable for appropriate indoor industrial network installations.

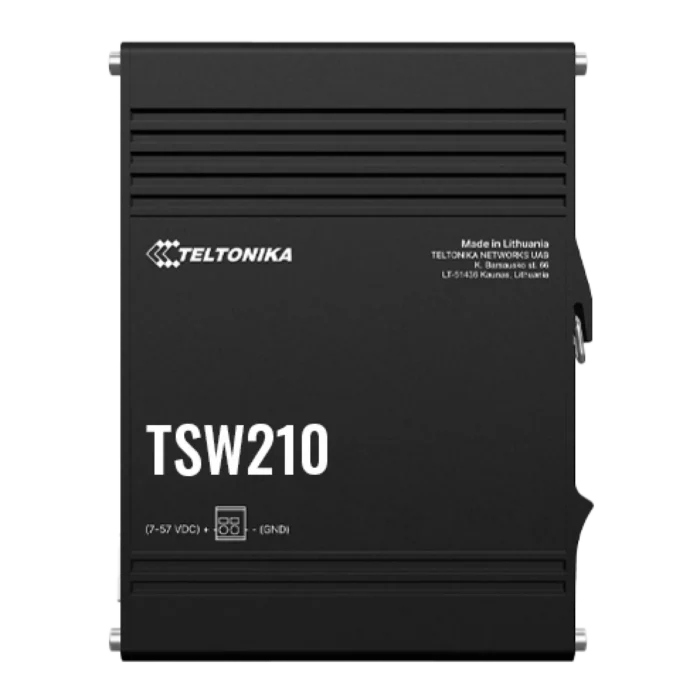

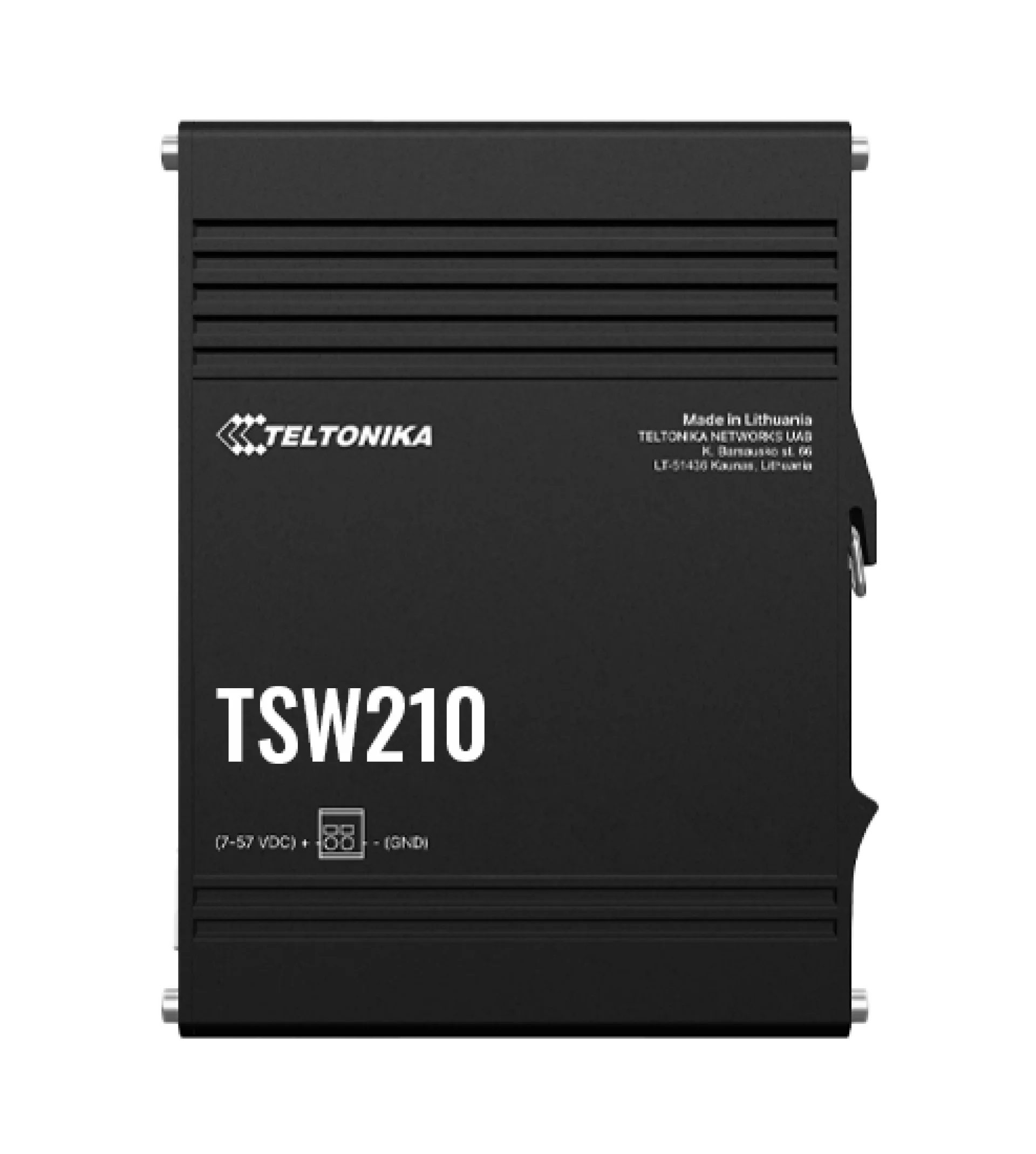

The switch uses a 2-pin industrial DC power socket with an input voltage range of 7–57 VDC. Its compact dimensions of 132 × 44.2 × 95.1 mm and aluminium construction make it practical for installations where equipment space needs to be considered.

Applications

Teltonika TSW210 can be used in industrial Ethernet networks, manufacturing environments, infrastructure projects, building networks, and other installations requiring multiple Gigabit connections. Its combination of RJ45 and SFP interfaces supports both local wired devices and fiber-based network links.

For example, a manufacturing network can connect several Ethernet devices through the eight Gigabit ports while using the SFP ports for fiber links to another network area. Similarly, industrial infrastructure can use DIN rail mounting where equipment is installed inside suitable control or networking enclosures.

Technical Specifications

Product: TSW210 Industrial Ethernet Switch
Ethernet ports: 8 × RJ45
Ethernet speed: 10/100/1000 Mbps
SFP ports: 2
Switch type: Unmanaged
Operation: Plug and play
Ethernet standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Auto MDI/MDIX: Supported
Non-blocking bandwidth: 20 Gbps
Packet buffer: 128 KB
MAC address table: 2K entries
Jumbo frame support: 9216 bytes
Power connector: 2-pin industrial DC power socket
Input voltage: 7–57 VDC
Idle power consumption: Approximately 1.03 W
Maximum power consumption: Approximately 3.71 W
Housing: Full aluminium
Dimensions: 132 × 44.2 × 95.1 mm
Weight: 500 g
Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress protection: IP30
Mounting: DIN rail, wall, or flat surface

Buy Teltonika TSW210 in India

If you need an industrial Ethernet switch with Gigabit ports and SFP connectivity, Teltonika TSW210 provides a simple way to expand a wired network. You can explore other industrial networking options through AirPath’s Ethernet switches category.

However, the required SFP modules, fiber type, mounting method, and power arrangement should be selected according to the actual network installation. For complete product information and technical documentation, visit the official Teltonika Networks TSW210 product page.

Frequently Asked Questions

What is Teltonika TSW210?

Teltonika TSW210 is an unmanaged industrial Ethernet switch with eight Gigabit Ethernet ports and two SFP ports for fiber-optic connectivity.

How many Ethernet ports does the switch have?

The switch has eight RJ45 Ethernet ports supporting 10/100/1000 Mbps speeds. It also provides two SFP ports for optical network connections.

Does Teltonika TSW210 require configuration?

No. The switch is designed for plug-and-play operation, so basic Ethernet connectivity does not require additional switch configuration.

Where can Teltonika TSW210 be installed?

Teltonika TSW210 supports DIN rail, wall, and flat-surface installation options. Its -40 °C to 75 °C operating temperature range and industrial aluminium housing support suitable industrial networking installations.
