Teltonika TSW200: Powerful Gigabit PoE+ Ethernet Switch | AirPath

Teltonika TSW200 is an industrial Gigabit PoE+ Ethernet switch designed for networks that need high-speed wired connectivity, device power delivery, and long-range fiber links. With eight Gigabit Ethernet ports, eight PoE+ ports, and two SFP ports, it can simplify the connection of multiple powered devices in industrial and commercial installations.

Table of Contents

• Key Features
• Gigabit Ethernet and PoE+ Connectivity
• SFP Fiber Connectivity and Network Performance
• Industrial Installation and Reliability
• Applications
• Technical Specifications
• Buy Teltonika TSW200 in India
• Frequently Asked Questions

Teltonika TSW200 Key Features

This industrial switch combines Gigabit Ethernet switching with PoE+ power delivery and SFP fiber connectivity in one industrial device. It provides eight Gigabit Ethernet ports with speeds up to 1000 Mbps, while all eight ports support IEEE 802.3af and IEEE 802.3at PoE standards.

Each PoE+ port can provide up to 30 W at the power sourcing equipment, with a total PoE power budget of up to 240 W. As a result, the switch can connect and power compatible network equipment through Ethernet without requiring a separate power connection for every device.

Gigabit Ethernet and PoE+ Connectivity

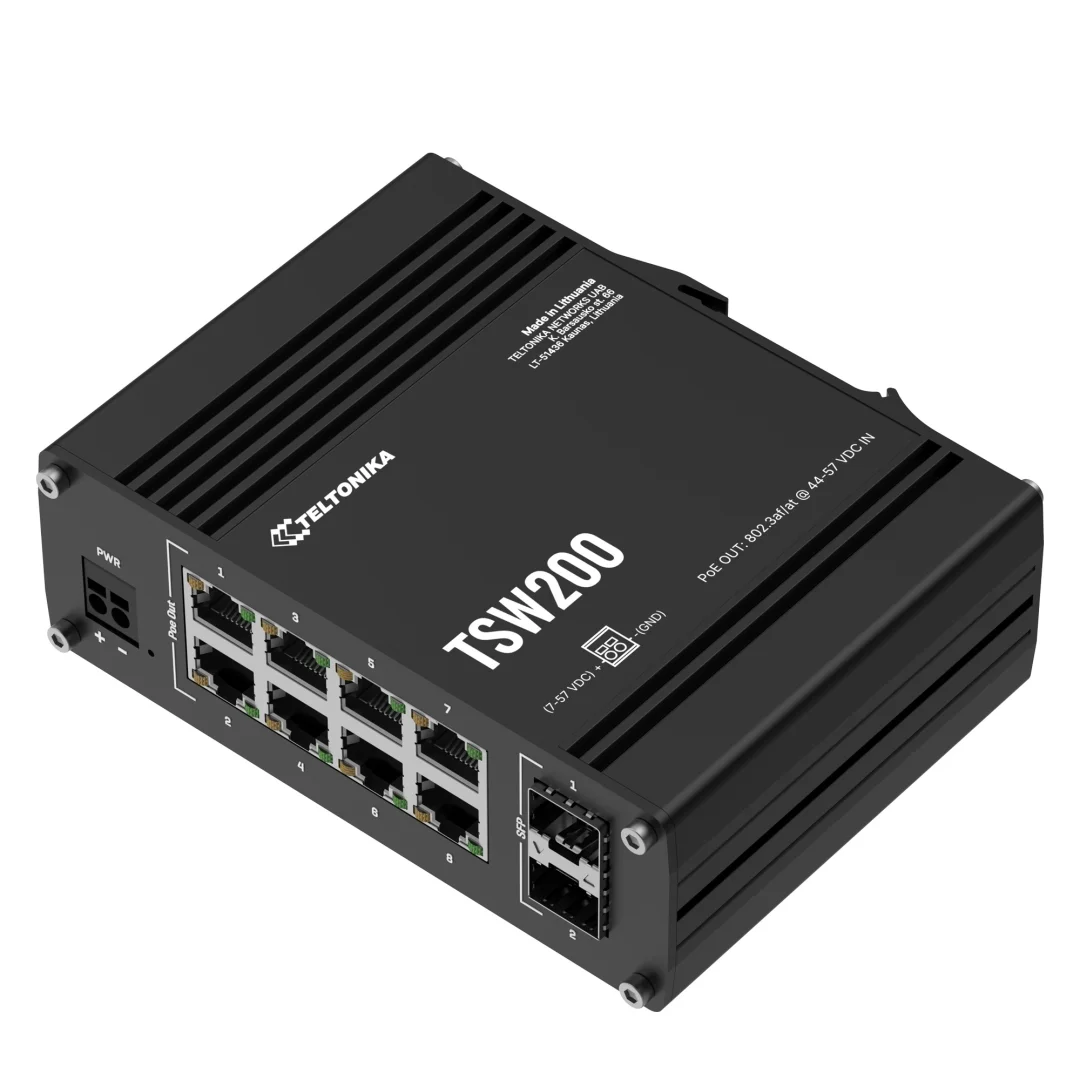

The eight RJ45 Ethernet ports support 10/100/1000 Mbps operation and Auto MDI/MDIX crossover detection. This allows the switch to support different Ethernet link speeds while keeping installation straightforward.

PoE+ is useful when network devices need both data and power from the same Ethernet connection. For example, compatible IP cameras, wireless access points, and other powered network equipment can be connected through the PoE+ ports, subject to their power requirements.

SFP Fiber Connectivity and Network Performance

Teltonika TSW200 includes two SFP ports for long-range fiber-optic communication. This makes the switch suitable for network layouts where copper Ethernet connections alone are not practical for longer links.

The switch provides 20 Gbps of non-blocking bandwidth, a 128 KB packet buffer, a 2K-entry MAC address table, and support for jumbo frames up to 9216 bytes. Consequently, the hardware is designed to handle multiple Gigabit connections while maintaining efficient switching performance.

Industrial Installation and Reliability

The switch uses a full aluminium housing and supports DIN rail mounting, wall mounting, or flat-surface placement with the required mounting arrangement. Its operating temperature range is -40 °C to 75 °C, with 10% to 90% non-condensing operating humidity.

The device uses a 2-pin industrial DC power socket and supports a 7–57 VDC input range, while PoE-out requires a suitable 44–57 VDC input. However, the exact power setup should be selected according to the connected PoE load and installation requirements.

Applications

Teltonika TSW200 can be used in industrial Ethernet networks, IP surveillance installations, factory connectivity, smart infrastructure, and other applications requiring Gigabit switching with PoE+. Its combination of eight PoE+ ports and two SFP ports can help connect powered devices and extend network links over fiber.

For example, a surveillance network can use the PoE+ ports for compatible cameras while using an SFP port for a fiber uplink. Similarly, industrial installations can use Gigabit Ethernet for local devices and fiber connectivity between network segments.

Technical Specifications

• Product: TSW200
• Ethernet ports: 8 × RJ45, 10/100/1000 Mbps
• SFP ports: 2
• PoE ports: 8
• PoE standards: IEEE 802.3af and IEEE 802.3at
• Maximum PoE power per port: 30 W
• Total PoE power budget: 240 W
• Non-blocking bandwidth: 20 Gbps
• Packet buffer: 128 KB
• MAC address table: 2K entries
• Jumbo frame support: 9216 bytes
• Input voltage: 7–57 VDC
• PoE-out input voltage: 44–57 VDC
• Housing: Full aluminium
• Dimensions: 132 × 44.2 × 95.1 mm
• Weight: 517 g
• Operating temperature: -40 °C to 75 °C
• Operating humidity: 10% to 90% non-condensing
• Ingress protection: IP30
• Mounting: DIN rail, wall, or flat surface

Buy Teltonika TSW200 in India

If you need an industrial switch for Gigabit networking, PoE+ power delivery, and fiber connectivity, Teltonika TSW200 is a practical option to consider for your network design. You can explore related industrial Ethernet switches through AirPath’s switches category to compare suitable connectivity options.

For complete manufacturer information, technical documentation, and the latest product details, visit the official Teltonika Networks product page.

Frequently Asked Questions

What is Teltonika TSW200?

It is an industrial Ethernet switch with eight Gigabit Ethernet ports, eight PoE+ ports, and two SFP ports for fiber connectivity.

How much PoE power does the switch provide?

Each PoE+ port can provide up to 30 W, with a total PoE power budget of up to 240 W at the power sourcing equipment.

Does Teltonika TSW200 support fiber connectivity?

Yes. The switch has two SFP ports designed for long-range fiber-optic communication.

What is the operating temperature range?

The switch is specified for operation from -40 °C to 75 °C, making it suitable for industrial environments with a wide temperature range.
