Teltonika TSW030: Compact 8-Port Industrial Ethernet Switch

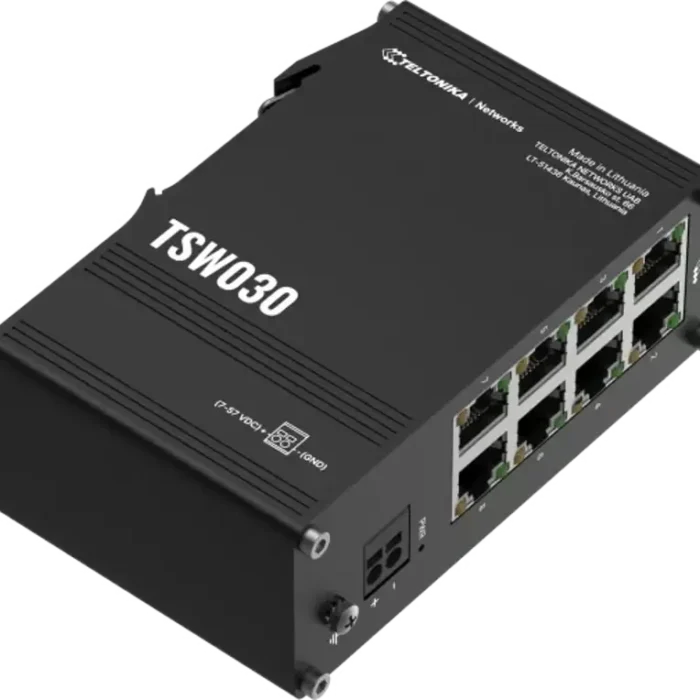

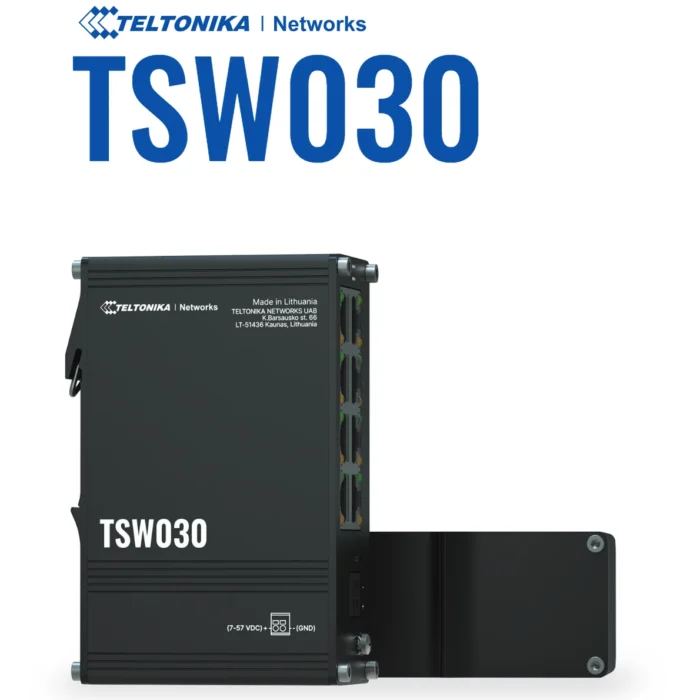

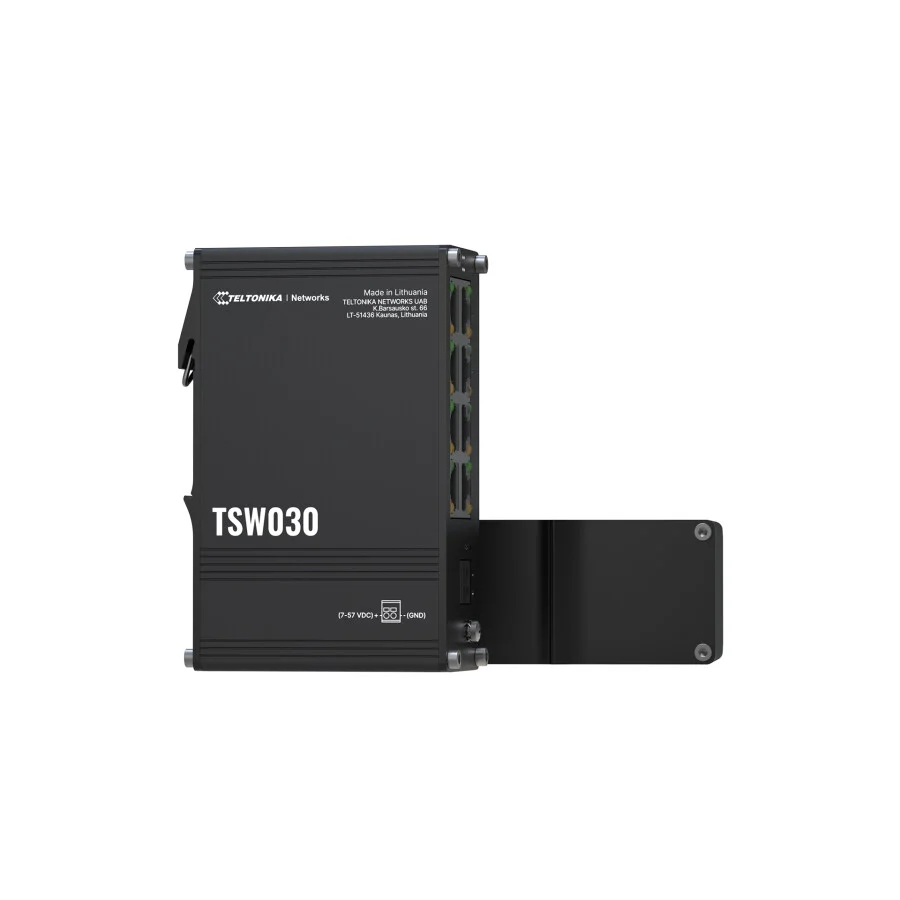

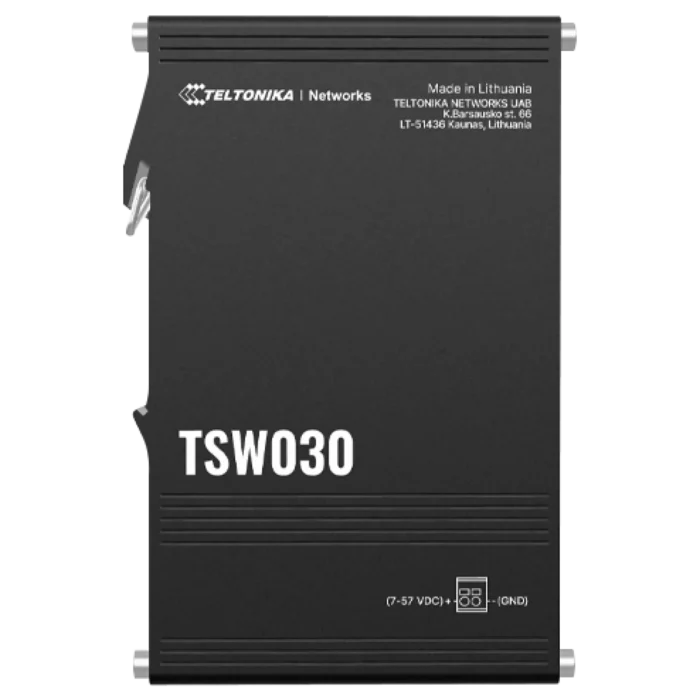

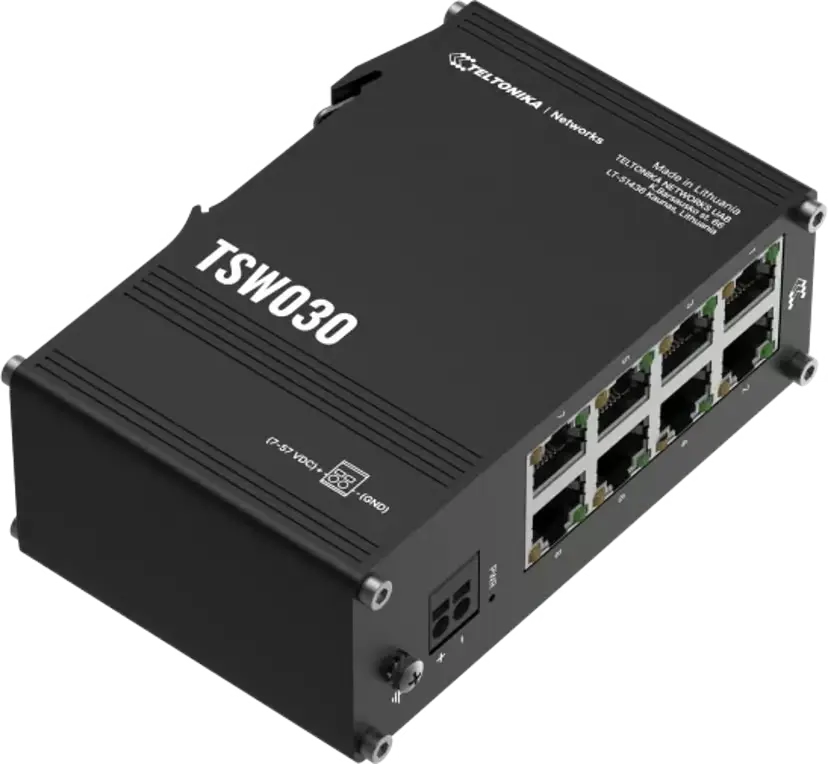

Teltonika TSW030 is a compact industrial Ethernet switch designed to connect multiple Ethernet devices within professional and industrial networks. It provides eight 10/100 Mbps RJ45 ports, plug-and-play operation, and integrated DIN rail mounting for straightforward network expansion.

The switch combines a rugged anodized aluminium housing with low power consumption and a flexible 2-pin power input. Because it is an unmanaged switch, it can be deployed without complex network configuration for suitable applications.

Table of Contents

• Key Features
• 8-Port Ethernet Connectivity
• Industrial Design and Mounting
• Power and Network Performance
• Applications
• Technical Specifications
• Buy Teltonika TSW030 in India
• Frequently Asked Questions

Teltonika TSW030 Key Features

Teltonika TSW030 is an unmanaged Ethernet switch designed for simple and efficient network expansion. It provides eight RJ45 Ethernet ports supporting 10/100 Mbps connectivity and includes automatic Ethernet functions for easier deployment.

The switch supports Auto MDI/MDIX crossover, allowing compatible Ethernet connections without requiring manual crossover cable configuration. As a result, network installation can remain simple when connecting multiple industrial or professional devices.

• 8 × RJ45 Ethernet ports
• 10/100 Mbps Ethernet connectivity
• Unmanaged switch operation
• Plug-and-play deployment
• 20 Gbps non-blocking bandwidth
• 2K MAC address table
• 9216-byte jumbo frame support
• Auto MDI/MDIX crossover
• Integrated DIN rail bracket
• Anodized aluminium housing and panels
• Low power consumption

8-Port Ethernet Connectivity

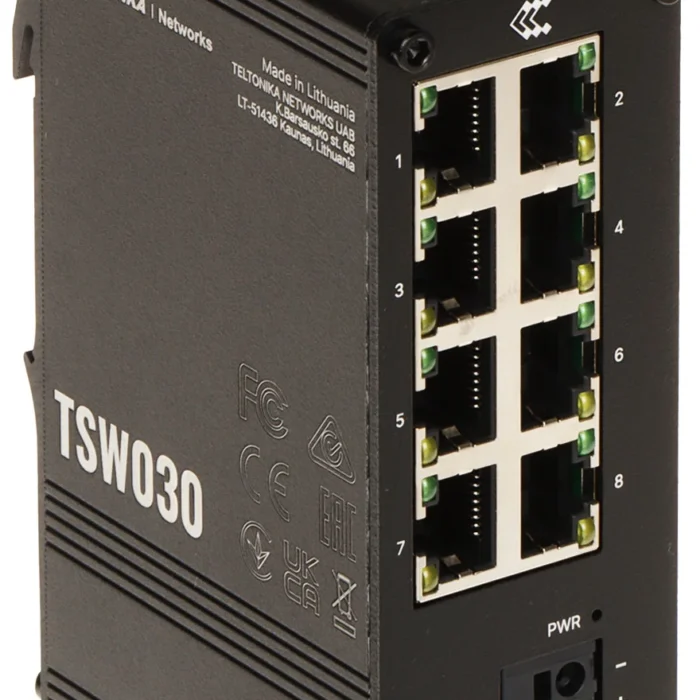

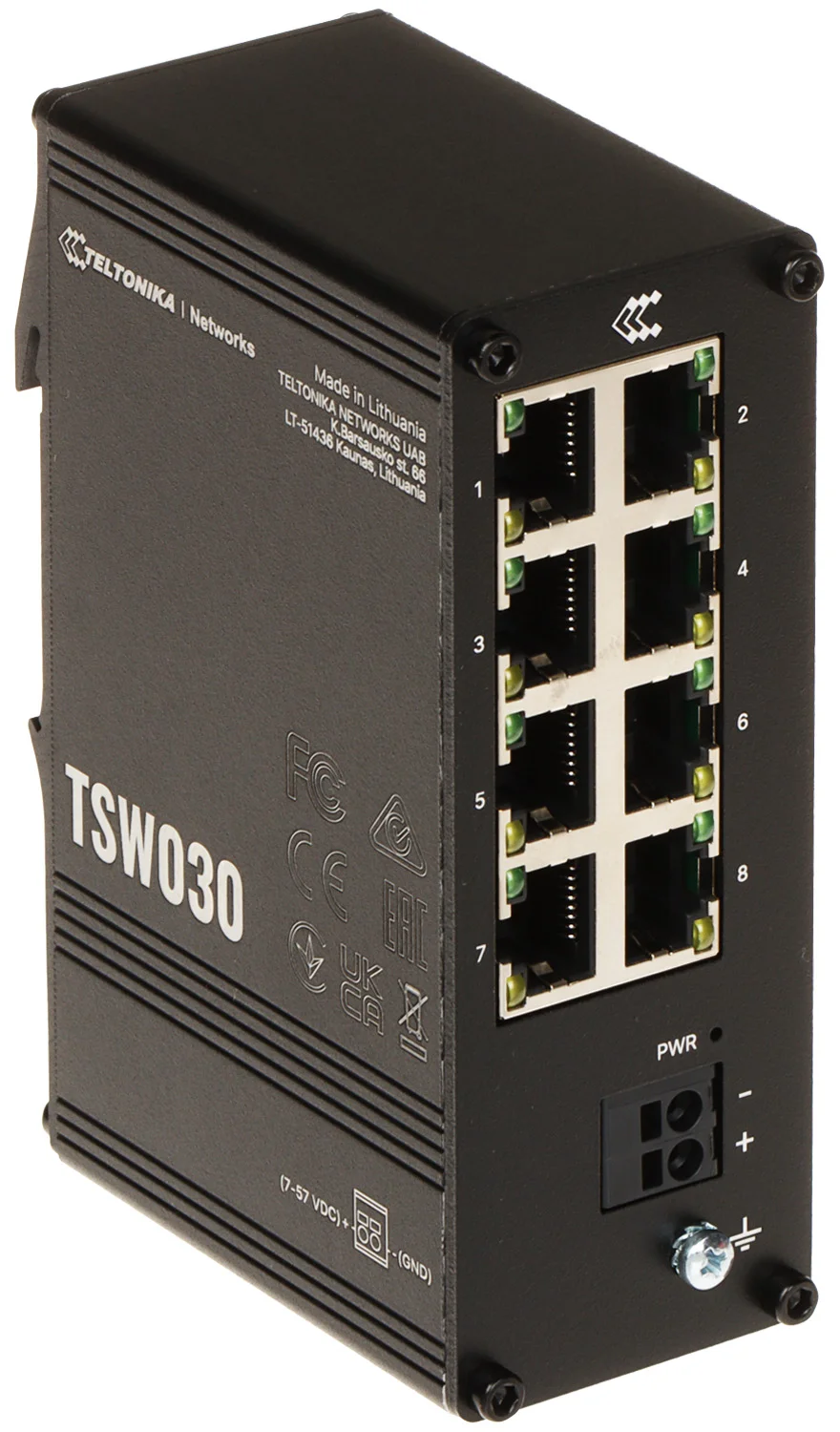

The eight RJ45 Ethernet ports allow multiple devices to connect to the same wired network. Each port supports 10/100 Mbps Ethernet communication, making the switch suitable for applications where Fast Ethernet connectivity is sufficient.

Teltonika TSW030 supports IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, and IEEE 802.3az Ethernet standards. The ports also support Auto MDI/MDIX crossover for convenient connection to compatible networking equipment.

The switch provides 20 Gbps of non-blocking bandwidth, along with a 2K MAC address table and 128 KB packet buffer. For example, connected devices can communicate through the switch while its switching architecture manages Ethernet traffic between the available ports.

Industrial Design and Mounting

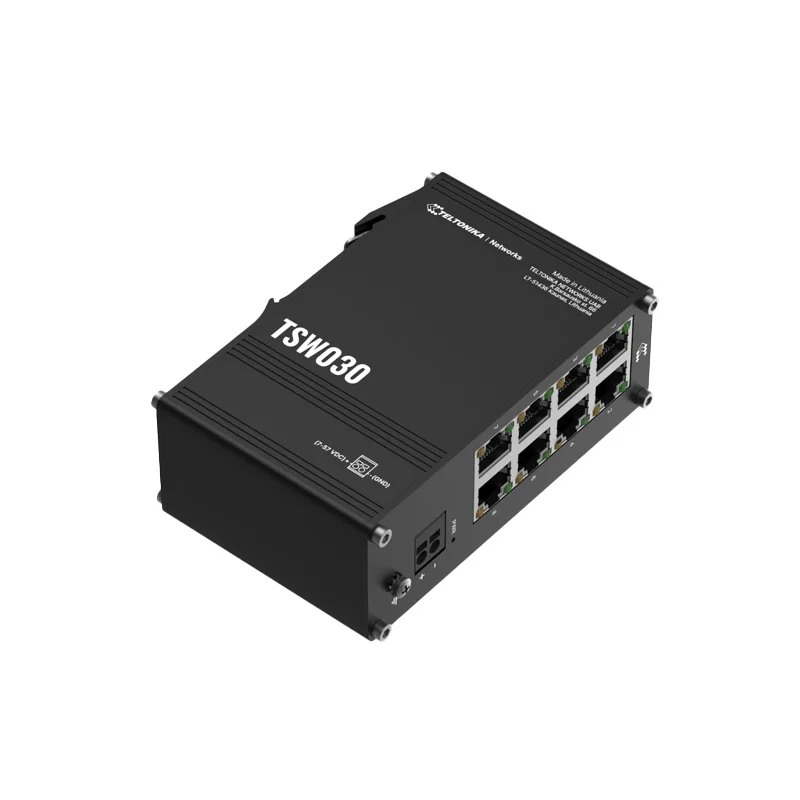

Teltonika TSW030 features an anodized aluminium housing and panels designed for professional industrial networking installations. Its compact construction makes it suitable for equipment cabinets and other locations where available installation space is limited.

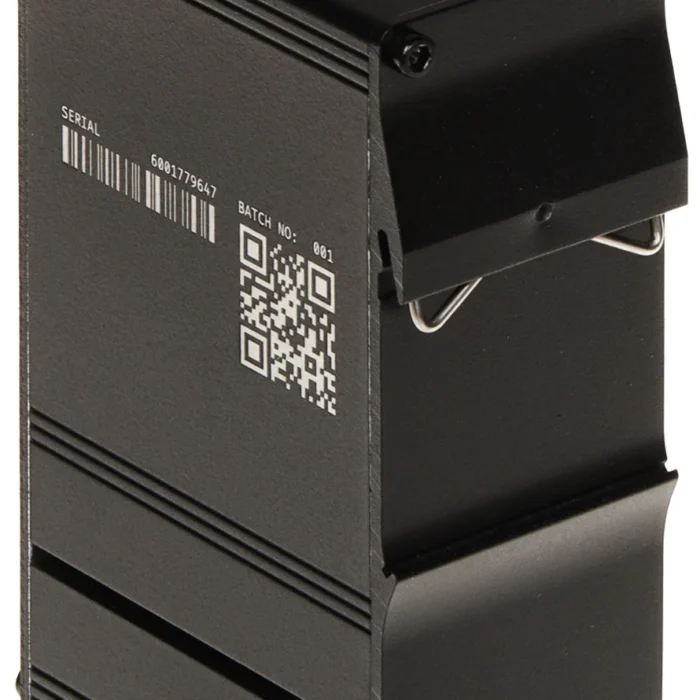

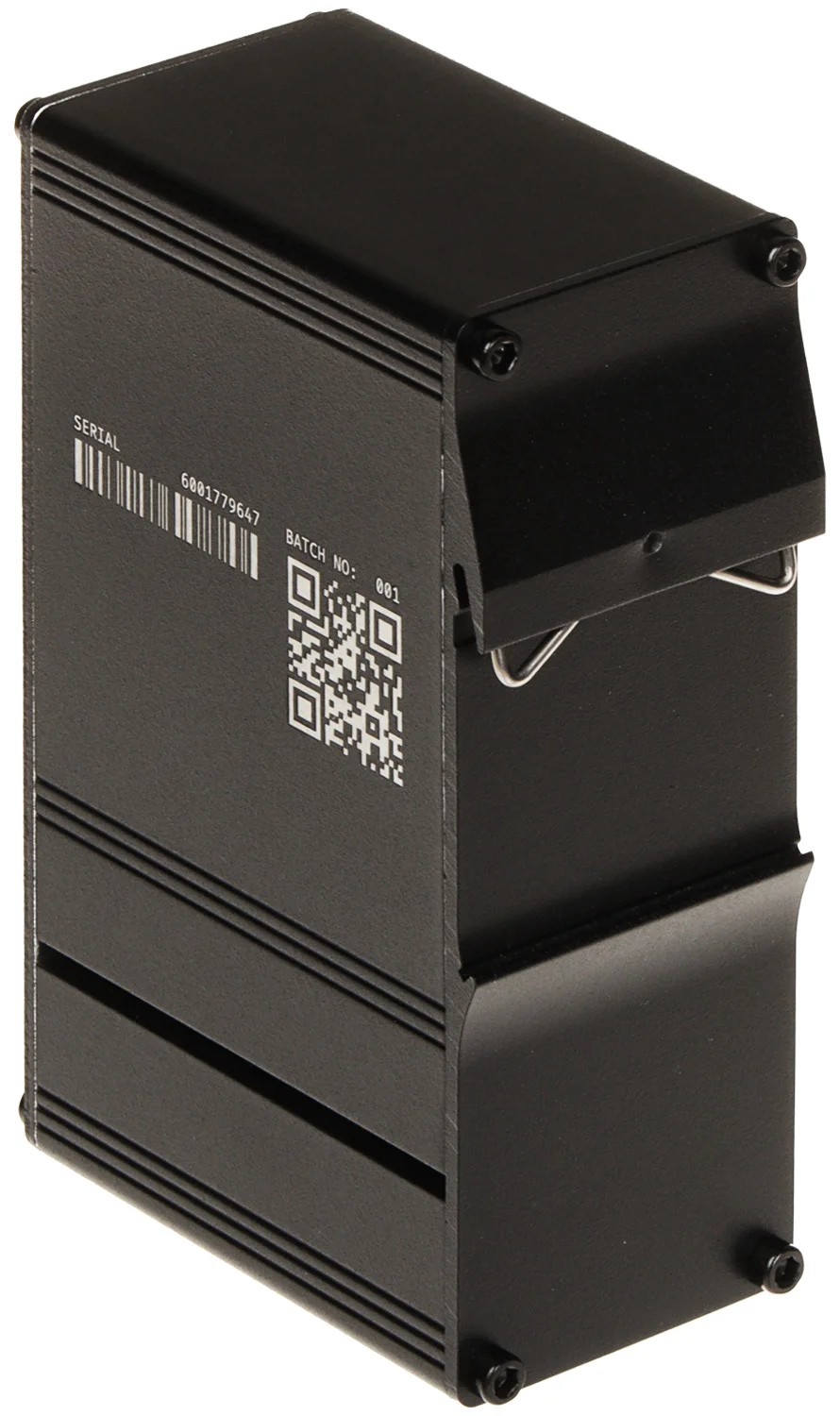

An integrated DIN rail bracket allows the switch to be mounted directly on compatible DIN rail systems. Wall mounting is also available with an additional mounting kit, while flat-surface placement provides another installation option.

The operating temperature range is specified from -40°C to +75°C, while operating humidity is specified from 10% to 90% non-condensing. Consequently, the switch can be deployed in professional environments where operating conditions vary within the manufacturer’s specified limits.

Power and Network Performance

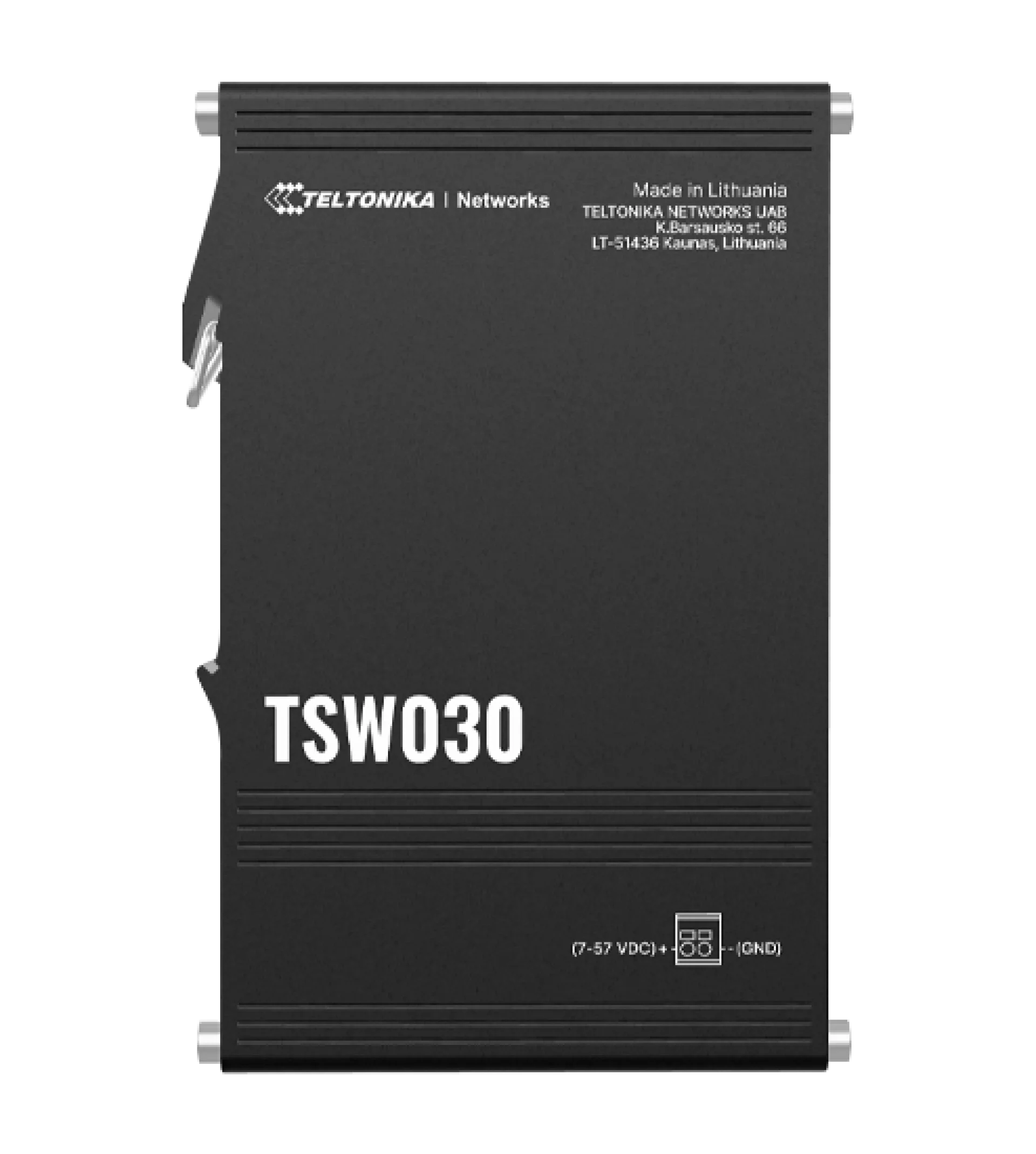

The switch uses a 2-pin industrial DC power socket and supports an input voltage range of 7–57 VDC. The manufacturer also specifies overvoltage, reverse polarity, and surge protection for the power input.

Power consumption is specified at up to 0.5 W when idle and up to 1.5 W maximum. Because the switch is designed for straightforward Ethernet connectivity, its low power requirements can be useful for installations where efficient network equipment is preferred.

Teltonika TSW030 supports store-and-forward switching, a 128 KB packet buffer, and jumbo frames up to 9216 bytes. However, the eight Ethernet interfaces operate at 10/100 Mbps, so the switch is intended for network applications where Fast Ethernet speeds meet the connectivity requirements.

Applications

Teltonika TSW030 can be used to expand wired Ethernet connectivity across industrial and professional environments. Its eight ports, plug-and-play operation, compact housing, and DIN rail mounting make it practical for connecting multiple devices within a network.

• Industrial Ethernet networks
• Factory and automation networks
• Industrial manufacturing
• Control cabinet installations
• Industrial IoT connectivity
• Network device expansion
• Energy and utility networks
• Smart city infrastructure
• Transportation networking
• Enterprise and retail networks

Technical Specifications

• Product Type: Compact Industrial Ethernet Switch
• Switch Type: Unmanaged
• Ethernet Ports: 8 × RJ45
• Ethernet Speed: 10/100 Mbps
• Bandwidth: 20 Gbps non-blocking
• Packet Buffer: 128 KB
• MAC Address Table: 2K entries
• Jumbo Frame Support: 9216 bytes
• Ethernet Standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3x and 802.3az
• Ethernet Feature: Auto MDI/MDIX crossover
• Power Connector: 2-pin industrial DC power socket
• Input Voltage: 7–57 VDC
• Power Consumption: 0.5 W idle / 1.5 W maximum
• Housing: Anodized aluminium housing and panels
• Mounting: Integrated DIN rail bracket, wall mount, flat surface with additional kit
• Operating Temperature: -40°C to +75°C
• Operating Humidity: 10% to 90% non-condensing
• Ingress Protection: IP30
• Dimensions: 113.1 × 41.2 × 74.6 mm
• Weight: Approximately 256 g

Buy Teltonika TSW030 in India

Teltonika TSW030 is designed for industrial and professional installations that need simple Ethernet expansion through eight 10/100 Mbps ports. Its plug-and-play operation, aluminium construction, DIN rail mounting, and flexible DC power input make it suitable for a range of networking deployments.

If you are comparing related industrial networking products, explore Ethernet networking products from AirPath for additional connectivity solutions.

For complete technical specifications, documentation, and manufacturer information, visit the official Teltonika TSW030 product page.

Frequently Asked Questions

What is Teltonika TSW030?

Teltonika TSW030 is a compact unmanaged industrial Ethernet switch with eight 10/100 Mbps RJ45 ports. It is designed to provide simple plug-and-play network expansion for suitable industrial and professional applications.

How many Ethernet ports does Teltonika TSW030 have?

The switch has eight RJ45 Ethernet ports supporting 10/100 Mbps connectivity. These ports can be used to connect multiple Ethernet-enabled devices within the same network.

Does Teltonika TSW030 support DIN rail mounting?

Yes. The switch has an integrated DIN rail bracket. Wall mounting with an additional kit and flat-surface placement are also supported.

What power supply does Teltonika TSW030 use?

Teltonika TSW030 uses a 2-pin industrial DC power socket and supports a 7–57 VDC input range. The power input also includes specified protection against overvoltage, reverse polarity, and surge conditions.
