Name: Teltonika TSW202: Powerful Managed PoE+ Switch | AirPath
Price: 17555.00 INR
Availability: InStock

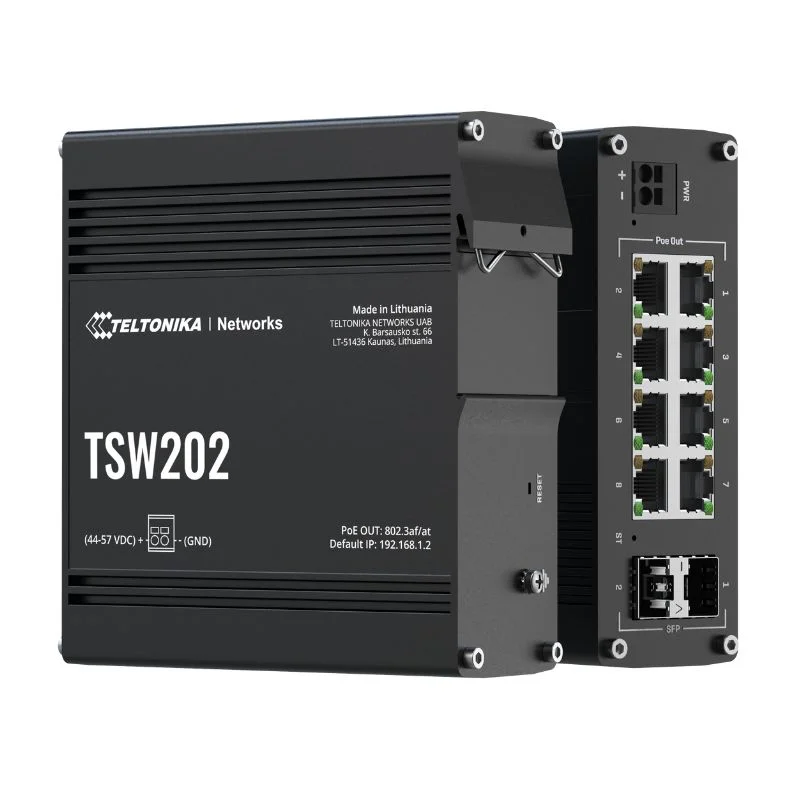

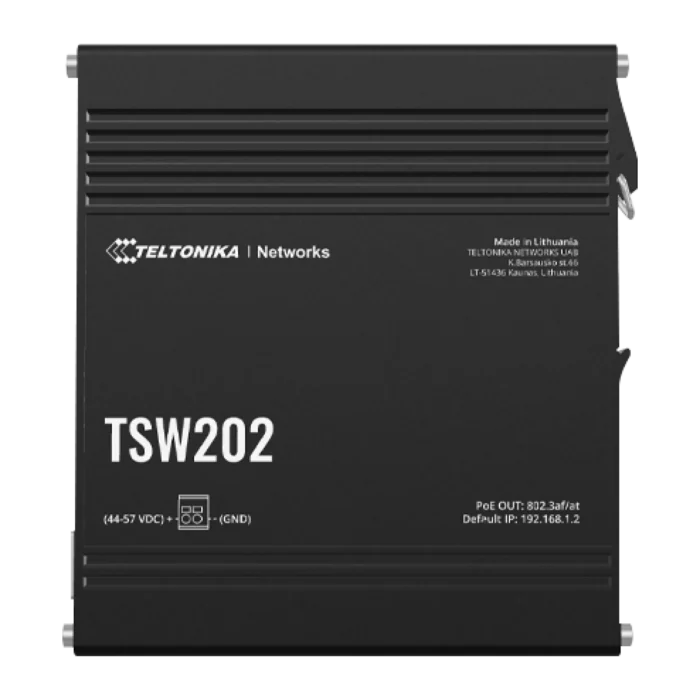

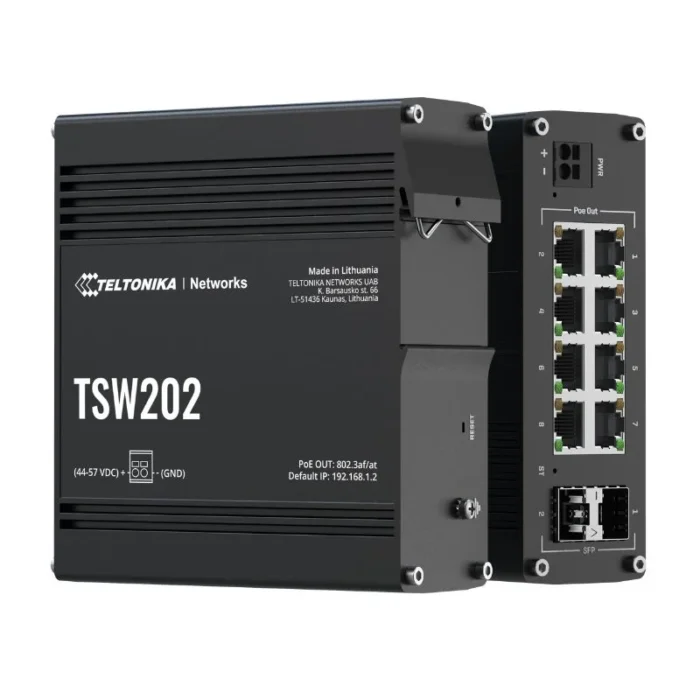

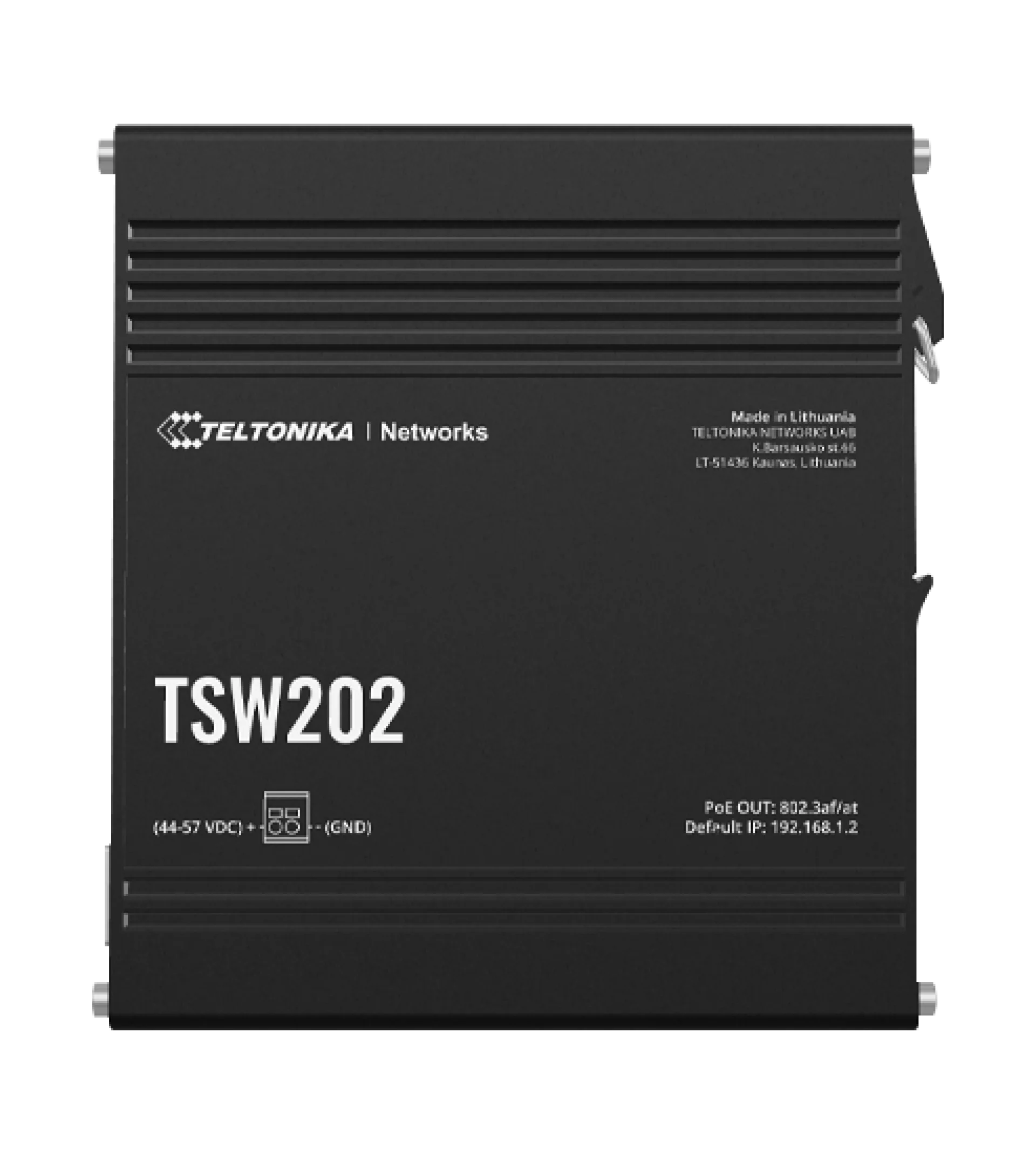

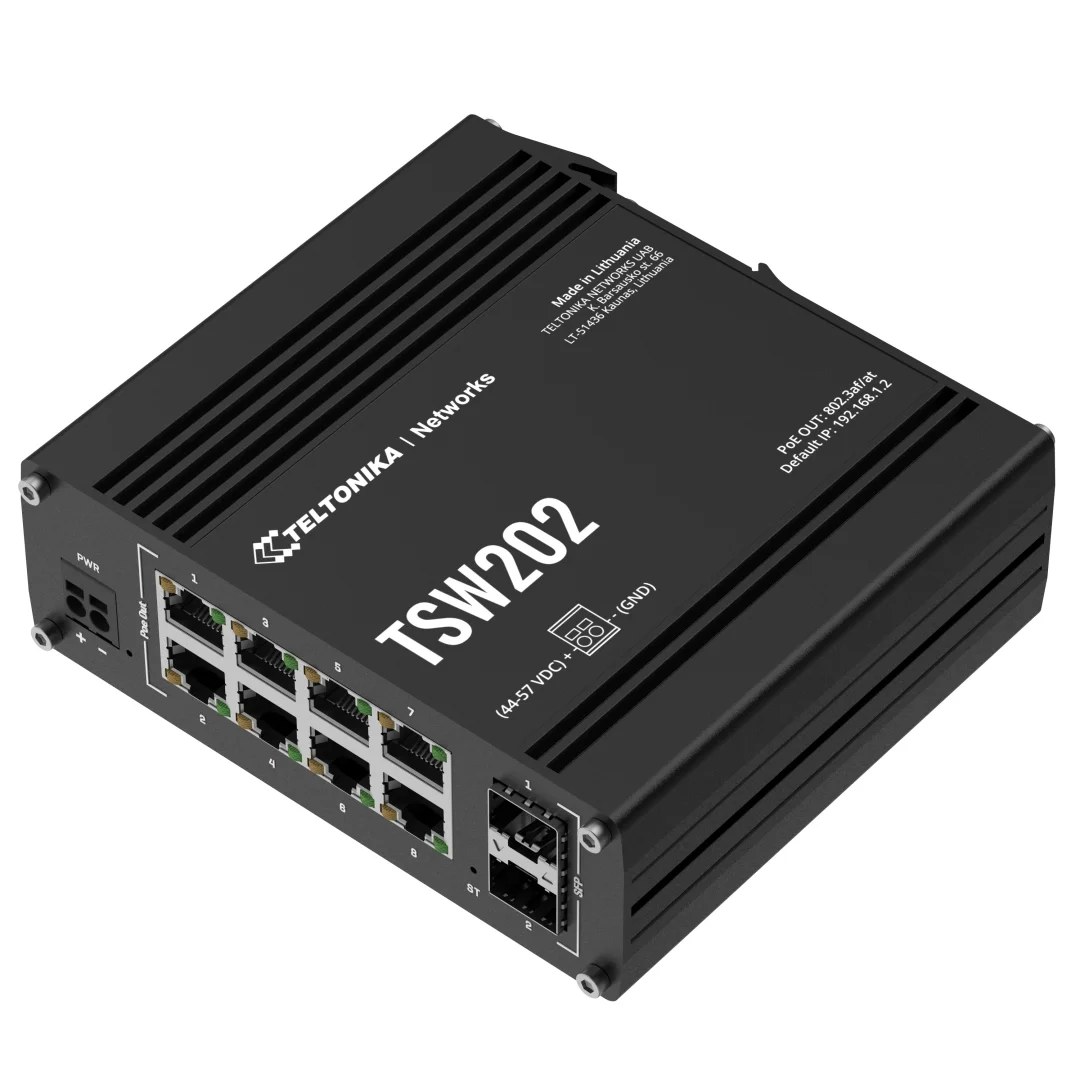

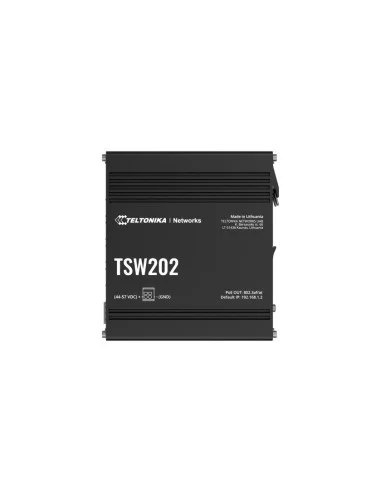

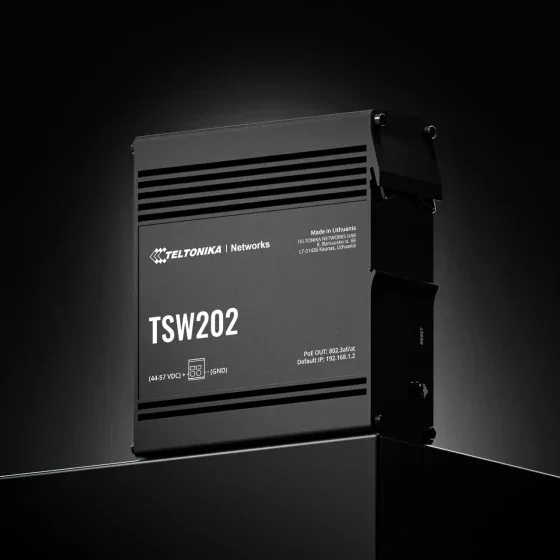

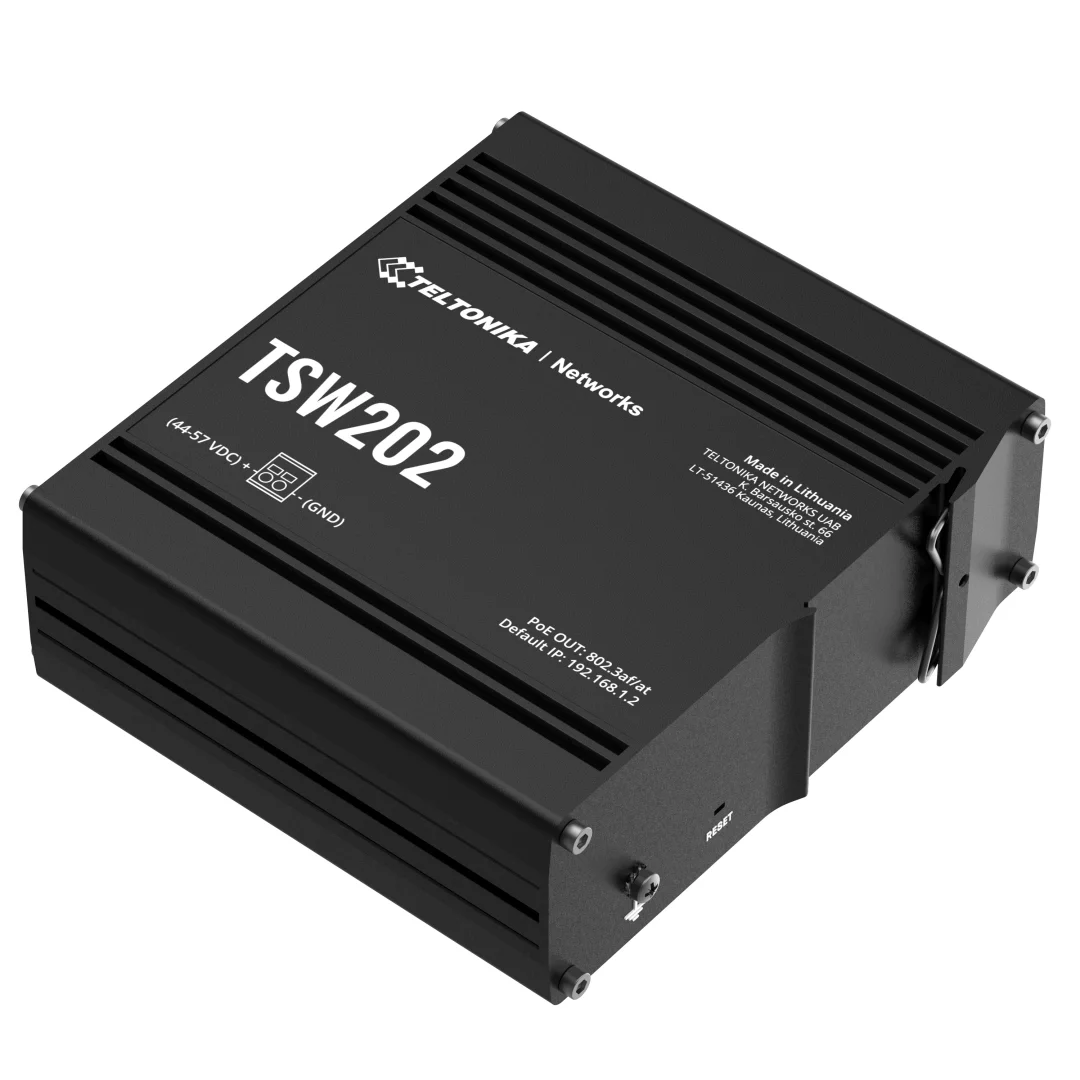

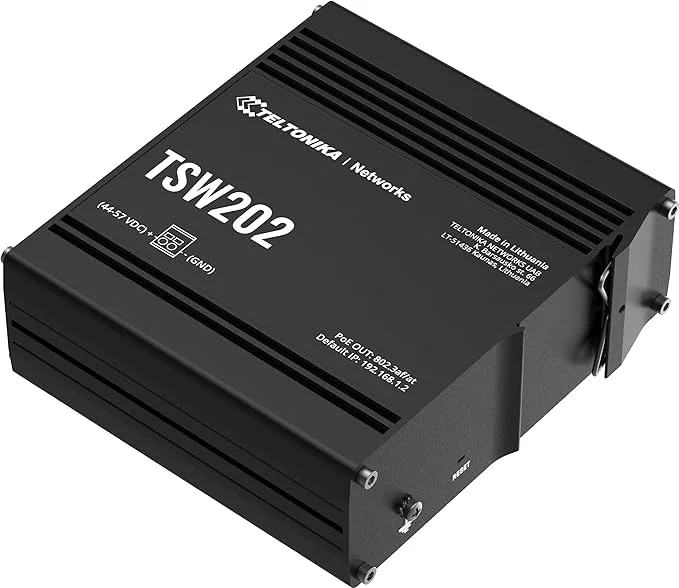

Teltonika TSW202 is a managed Gigabit PoE+ Ethernet switch designed for networks that need centralized power delivery and detailed network management. It combines eight Gigabit Ethernet ports with PoE+ support and two SFP ports, making it suitable for industrial networks where connected devices and longer fiber links need to work together.

Table of Contents

Teltonika TSW202 Key Features

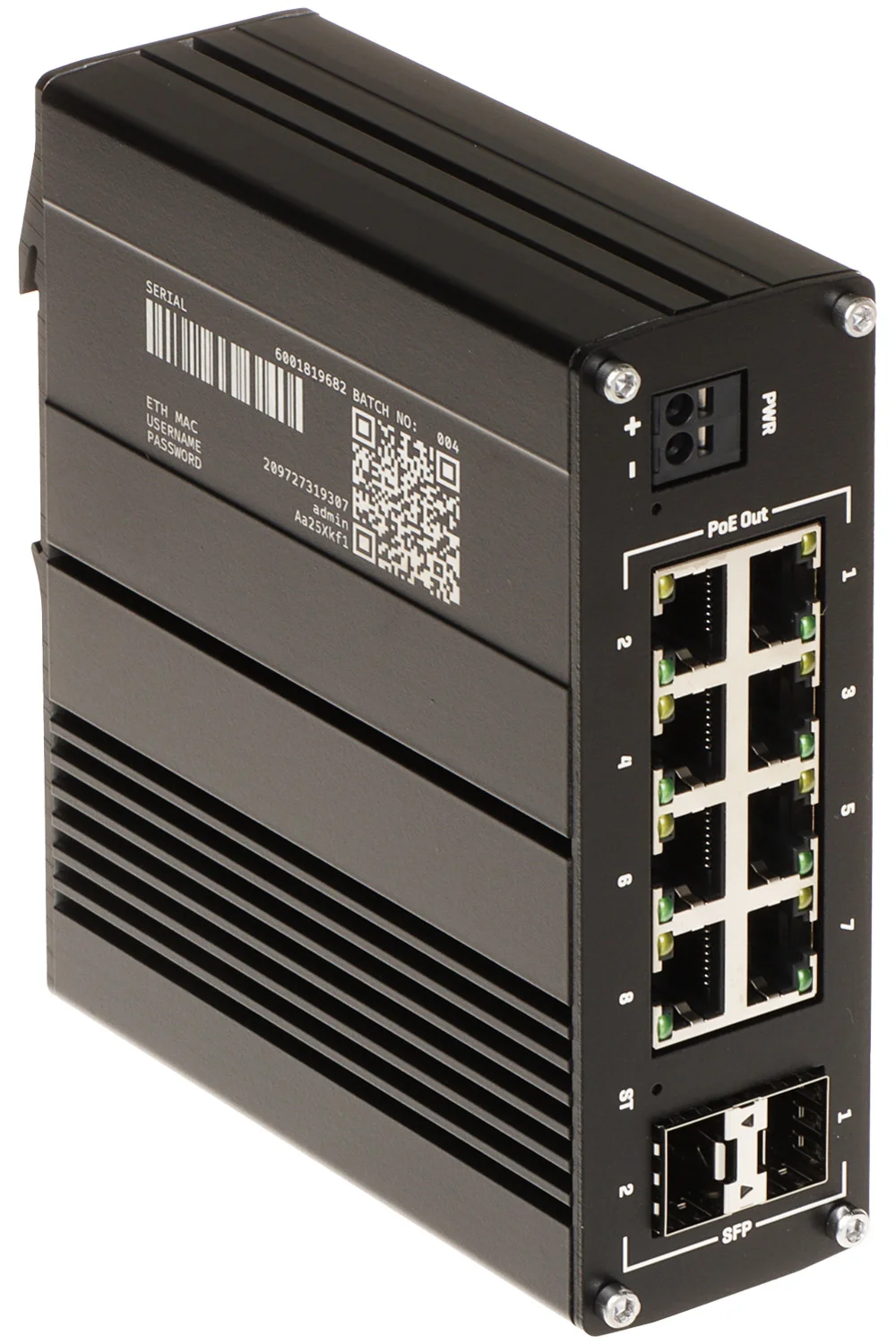

Teltonika TSW202 provides eight 10/100/1000 Mbps Ethernet ports and two SFP ports for fiber-optic communication. The switch is designed as a multi-layer managed device, combining L2 management with additional L3 features for greater control over network traffic and connected devices.

All eight Ethernet ports support IEEE 802.3af and IEEE 802.3at PoE standards. Each PoE port can deliver up to 30 W at the power sourcing equipment, while the total PoE power budget reaches up to 240 W. As a result, compatible powered devices can receive both network connectivity and power through Ethernet.

Managed Network Control

Unlike a basic unmanaged switch, Teltonika TSW202 provides network management functions that allow individual port settings and traffic behavior to be configured. These capabilities include VLAN, STP/RSTP, loop protection, port isolation, port mirroring, link speed control, and PoE management.

The switch also supports 802.1Q VLAN and 802.1x port-based network access control. Because different network environments have different requirements, these controls can help administrators organize traffic and apply suitable access policies.

PoE+ Power and Gigabit Connectivity

The eight Gigabit Ethernet ports support speeds up to 1000 Mbps and provide PoE+ connectivity for compatible devices. The maximum Ethernet cable length is specified as 100 meters, while the PoE power budget is up to 240 W at the PSE.

For example, compatible IP or CCTV cameras, wireless access points, and other powered network devices can be connected through the PoE+ ports. Active PoE management also provides control over power distribution, which can be useful when several powered devices share the same switch.

SFP Fiber and Industrial Protocol Support

Teltonika TSW202 includes two SFP ports for fiber-optic communication and supports a non-blocking bandwidth of 20 Gbps. This combination can help connect local Gigabit devices while providing fiber links between different network sections.

The switch supports industrial communication protocols and services including PROFINET, EtherNet/IP, MRP, SNMP, and LLDP. Consequently, it can be integrated into industrial networking environments where protocol support and managed connectivity are important.

Applications

Teltonika TSW202 can be used in industrial automation, smart infrastructure, logistics facilities, surveillance networks, and other managed Ethernet installations. Its PoE+ ports can connect compatible powered equipment, while SFP ports can provide fiber connectivity between locations.

For example, a warehouse network can use the PoE+ ports for cameras or access points and use SFP connectivity for a longer fiber uplink. Similarly, industrial automation networks can use managed features such as VLAN, QoS, port settings, and supported industrial protocols to organize network traffic.

Technical Specifications

Product: TSW202 Managed PoE+ Ethernet Switch

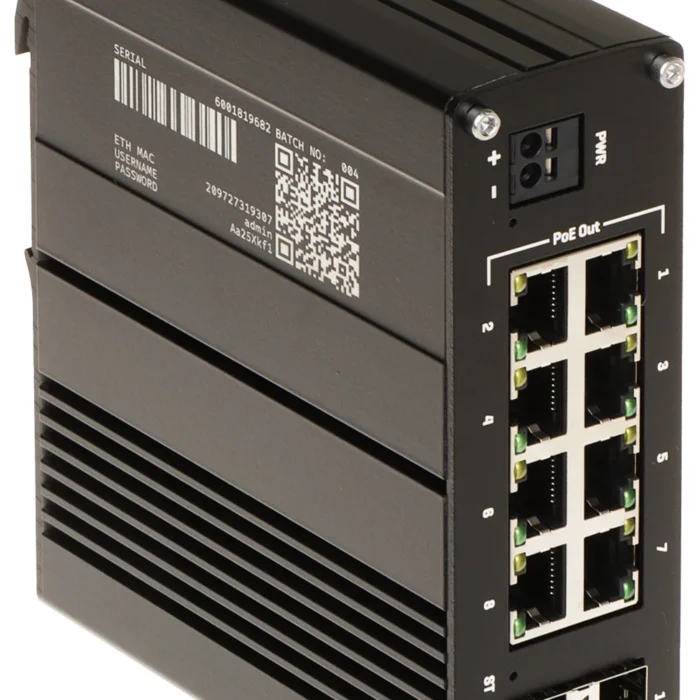

Ethernet: 8 × RJ45, 10/100/1000 Mbps

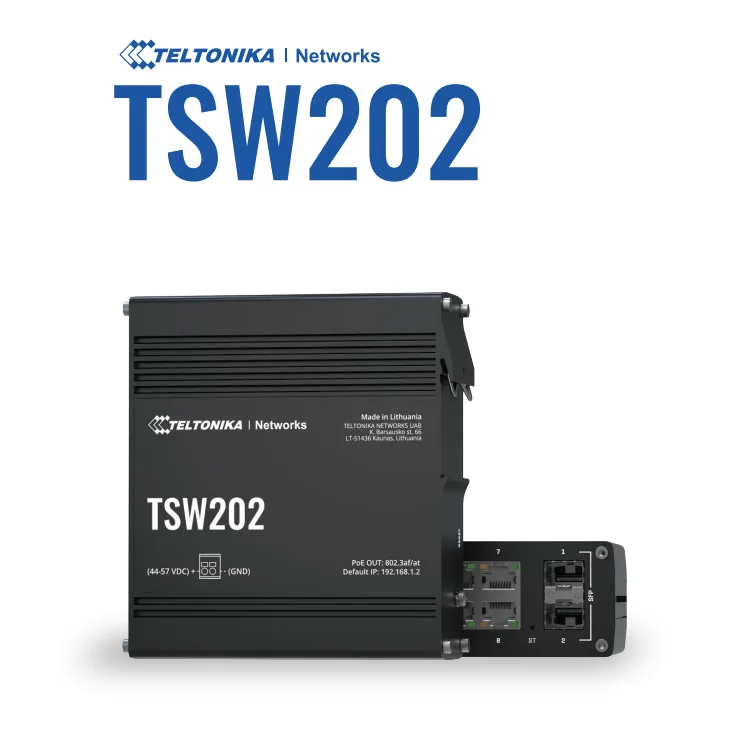

SFP: 2 × SFP ports
PoE standards: IEEE 802.3af and IEEE 802.3at
PoE ports: 8
Maximum PoE power per port: 30 W at PSE
Total PoE power budget: 240 W at PSE
Maximum Ethernet cable length: 100 m
Non-blocking bandwidth: 20 Gbps
Network management: VLAN, STP/RSTP, loop protection, port isolation, port mirroring
L3 features: Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
Industrial protocols: PROFINET, EtherNet/IP, MRP
Management services: SNMP V2/V3, LLDP
Power input: 9–57 VDC
Housing: Anodized aluminium housing and panels
Dimensions: 132 × 44.2 × 122.2 mm
Weight: 610 g
Mounting: DIN rail and surface mounting options

Buy Teltonika TSW202 in India

If you need a managed PoE+ switch for Gigabit networking, centralized power distribution, and fiber connectivity, Teltonika TSW202 provides these capabilities in one industrial device. You can explore related networking products through AirPath’s switches category to find options for different Ethernet requirements.

For complete product information and technical documentation, refer to the official Teltonika Networks TSW202 product page. Always confirm the required PoE power, voltage, mounting arrangement, and network features before selecting the switch for your installation.

Frequently Asked Questions

What is Teltonika TSW202?

Teltonika TSW202 is a managed PoE+ Ethernet switch with eight Gigabit Ethernet ports and two SFP ports for fiber-optic communication. It also provides additional L3 features for network control.

How many devices can the PoE+ ports power?

The switch has eight PoE+ ports. Each port can provide up to 30 W at the PSE, with a total PoE power budget of up to 240 W.

Does Teltonika TSW202 support fiber connectivity?

Yes. The switch has two SFP ports designed for fiber-optic communication, making it suitable for network links where fiber is required.

What management features are available?

The switch supports features including VLAN, STP/RSTP, port isolation, port mirroring, QoS, PoE management, static routing, and port-based network access control. Teltonika TSW202 also supports industrial protocols such as PROFINET, EtherNet/IP, and MRP.
