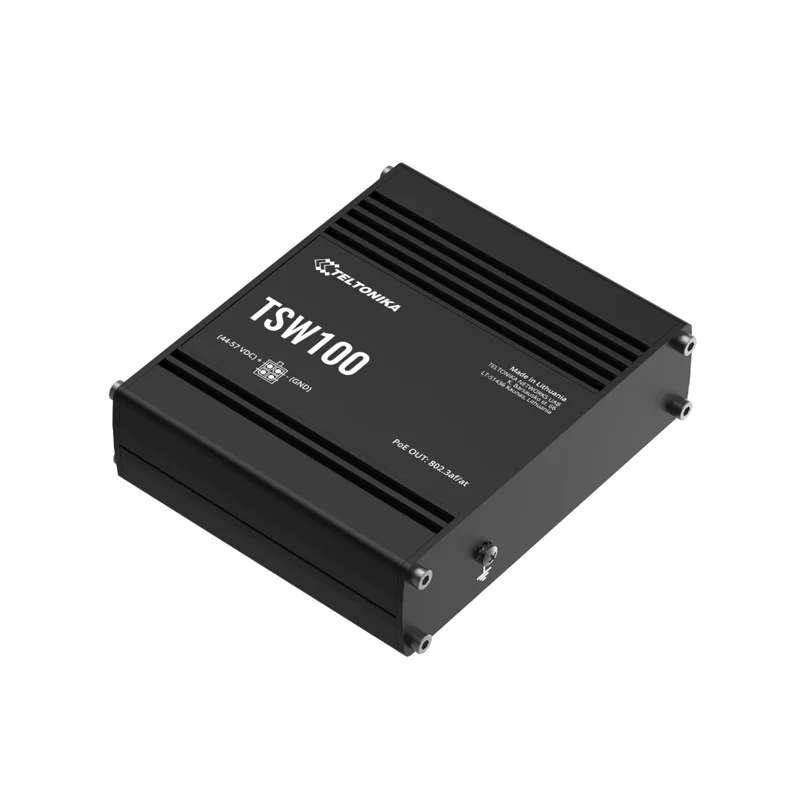

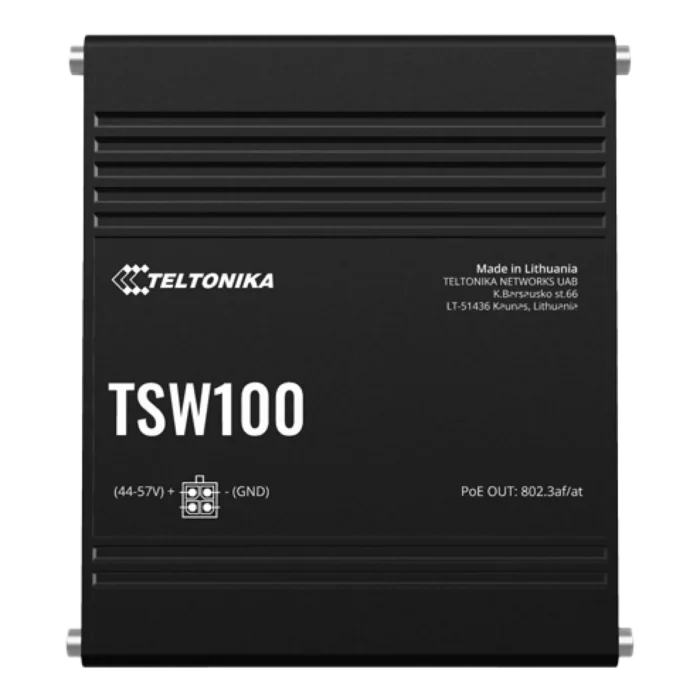

Teltonika TSW100: Industrial 5-Port Gigabit PoE+ Ethernet Switch

Teltonika TSW100 is an industrial Gigabit Ethernet switch designed to provide high-speed network connectivity and Power over Ethernet for professional installations. It features five Gigabit Ethernet ports, including four PoE+ ports, allowing compatible devices to receive both network data and power through Ethernet connections.

The switch uses an aluminium housing and supports flexible mounting options for industrial environments. Because it combines Gigabit Ethernet with PoE+ functionality, it can simplify network installations where connected equipment requires both data connectivity and power.

Table of Contents

• Key Features
• Gigabit Ethernet and PoE+ Connectivity
• PoE+ Power Capacity
• Industrial Design and Installation
• Applications
• Technical Specifications
• Buy Teltonika TSW100 in India
• Frequently Asked Questions

Teltonika TSW100 Key Features

Teltonika TSW100 is an unmanaged industrial PoE+ Ethernet switch designed for high-bandwidth networking applications. It provides five RJ45 Gigabit Ethernet ports, with four ports supporting PoE+ output and one port serving as an additional Ethernet connection.

The switch supports Ethernet speeds of up to 1000 Mbps and provides up to 30 W of PoE power per supported port. As a result, compatible network devices can receive power and data through a single Ethernet cable.

• 5 × Gigabit Ethernet ports
• 4 × PoE+ ports
• IEEE 802.3af and IEEE 802.3at PoE support
• Up to 30 W PoE power per port
• Up to 120 W total PoE power budget
• 10 Gbps non-blocking bandwidth
• 128 KB packet buffer
• 2K MAC address table
• 9216-byte jumbo frame support
• Auto MDI/MDIX crossover
• Full aluminium housing

Gigabit Ethernet and PoE+ Connectivity

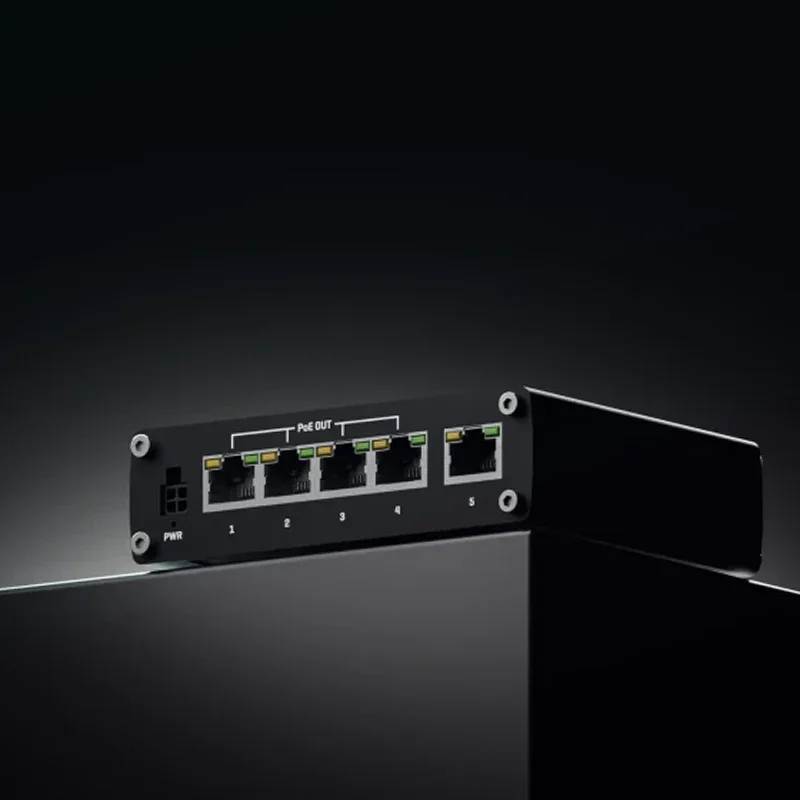

The five Ethernet ports support 10/100/1000 Mbps connections, providing Gigabit networking for compatible equipment. Four of these ports support IEEE 802.3af and IEEE 802.3at PoE+ standards, while the remaining Ethernet port provides standard Gigabit connectivity.

Teltonika TSW100 can therefore connect network equipment while supplying power to compatible PoE devices. For example, a network installation can use the PoE+ ports for cameras or other supported equipment while using the additional Ethernet port for network uplink connectivity.

The switch supports Auto MDI/MDIX crossover, which helps simplify connections between compatible Ethernet devices. Consequently, installation can be more straightforward without requiring manual crossover cable selection.

PoE+ Power Capacity

Teltonika TSW100 provides up to 30 W of PoE power per supported port at the power sourcing equipment level. The total PoE power budget can reach up to 120 W when an appropriate power supply is used.

The PoE functionality supports IEEE 802.3af and IEEE 802.3at standards. Because PoE can carry power and network data through the same Ethernet connection, it can reduce the need for separate power cabling for compatible connected devices.

The manufacturer specifies a 44–57 VDC input range for PoE-out operation. However, the exact available PoE power depends on the power supply used with the switch and the requirements of the connected devices.

Industrial Design and Installation

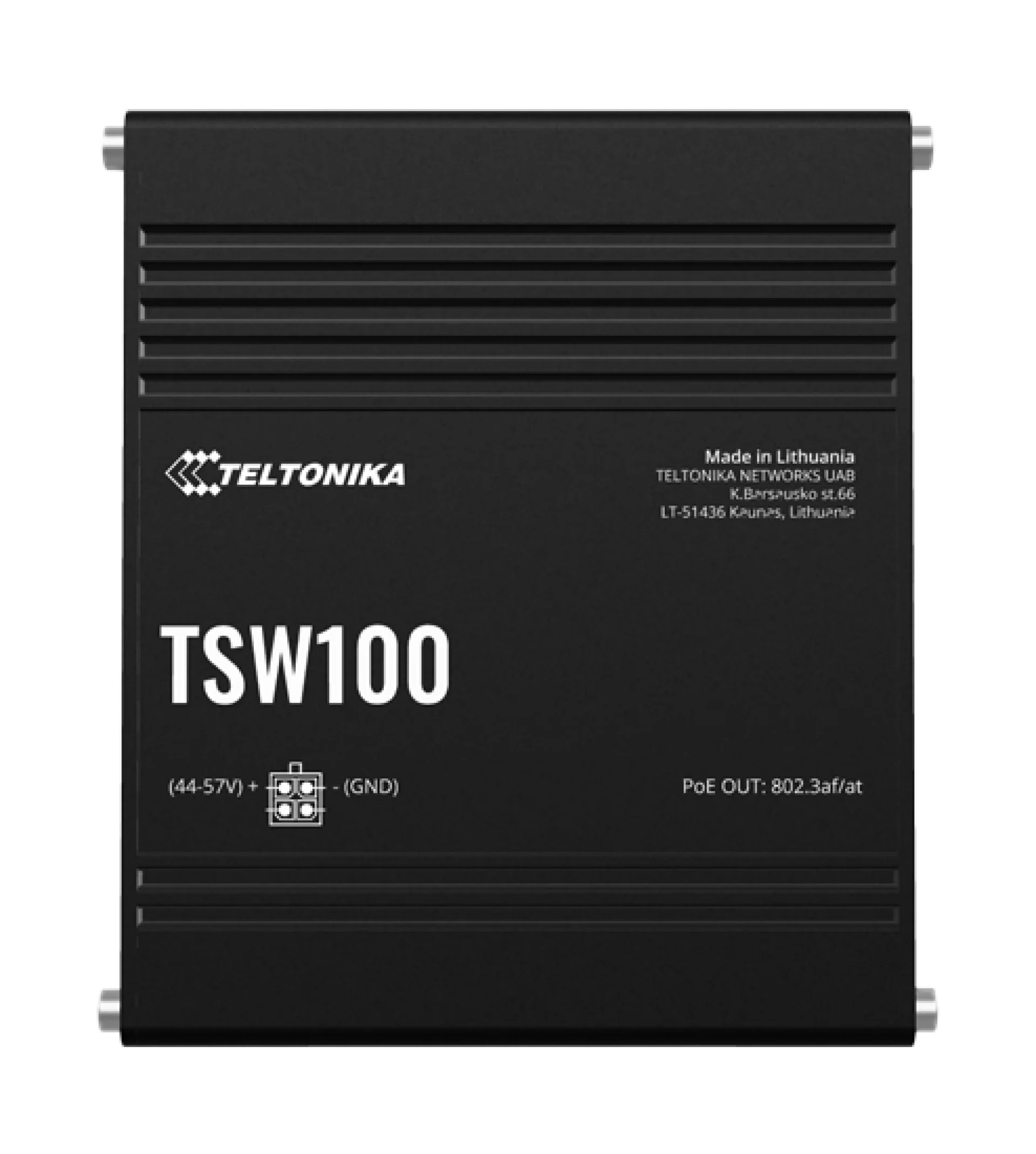

The switch features a full aluminium housing designed for professional industrial networking environments. Its operating temperature range is specified from -40°C to +75°C, while operating humidity is specified from 10% to 90% non-condensing.

Teltonika TSW100 supports DIN rail, wall mounting, and flat-surface placement when the appropriate mounting kit is used. The compact 115 × 32 × 95 mm housing allows the switch to be integrated into different professional installation environments.

The device has an IP30 ingress protection rating and includes a grounding screw. As a result, it can be integrated into suitable industrial networking installations where the specified environmental conditions are maintained.

Applications

Teltonika TSW100 can be used in networking environments where Gigabit Ethernet and PoE+ power delivery are required. Its combination of multiple Ethernet ports, PoE output, industrial construction, and flexible mounting makes it suitable for different professional applications.

• Industrial Ethernet networks
• IP camera and video surveillance networks
• Industrial IoT infrastructure
• Factory and automation networks
• Access control and security equipment
• PoE-powered network device installations
• Enterprise network extensions
• Industrial control and monitoring environments
• Remote networking installations

Technical Specifications

• Product Type: Industrial Unmanaged PoE+ Ethernet Switch
• Ethernet Ports: 5 × RJ45
• Ethernet Speed: 10/100/1000 Mbps
• PoE Ports: Ports 1–4
• PoE Standards: IEEE 802.3af and IEEE 802.3at
• PoE Power per Port: Up to 30 W
• Total PoE Power Budget: Up to 120 W
• Bandwidth: 10 Gbps non-blocking
• Packet Buffer: 128 KB
• MAC Address Table: 2K entries
• Jumbo Frame Support: 9216 bytes
• Ethernet Standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3x and 802.3az
• Power Connector: 4-pin industrial DC power socket
• Input Voltage: 7–57 VDC
• PoE-Out Input Voltage: 44–57 VDC
• Power Consumption: 2 W idle / 9 W maximum without PoE / 129 W at maximum PoE load
• Housing: Full aluminium housing
• Mounting: DIN rail, wall mount and flat-surface placement with appropriate kit
• Operating Temperature: -40°C to +75°C
• Operating Humidity: 10% to 90% non-condensing
• Ingress Protection: IP30
• Dimensions: 115 × 32 × 95 mm
• Weight: Approximately 350 g

Buy Teltonika TSW100 in India

Teltonika TSW100 is designed for industrial and professional networks that need Gigabit Ethernet connectivity with PoE+ power delivery. Its four PoE+ ports, 30 W per-port capacity, and up to 120 W total PoE budget provide flexible options for compatible network equipment.

If you are looking for related industrial networking products, explore Ethernet networking products from AirPath for additional connectivity solutions.

For complete technical specifications, documentation, and current manufacturer information, visit the official Teltonika TSW100 product page.

Frequently Asked Questions

What is Teltonika TSW100?

Teltonika TSW100 is an unmanaged industrial Gigabit Ethernet switch with five Ethernet ports, including four PoE+ ports. It is designed to provide network connectivity and PoE power for compatible professional and industrial devices.

How many PoE+ ports does Teltonika TSW100 have?

The switch has four PoE+ ports supporting IEEE 802.3af and IEEE 802.3at. Each supported port can provide up to 30 W of PoE power at the power sourcing equipment level.

What is the total PoE power budget?

Teltonika TSW100 supports a total PoE power budget of up to 120 W at the power sourcing equipment level when an appropriate power supply is used.

How many Gigabit Ethernet ports does Teltonika TSW100 have?

Teltonika TSW100 has five RJ45 Gigabit Ethernet ports supporting 10/100/1000 Mbps connectivity. Four ports provide PoE+ output, while the additional port provides Gigabit Ethernet connectivity.
