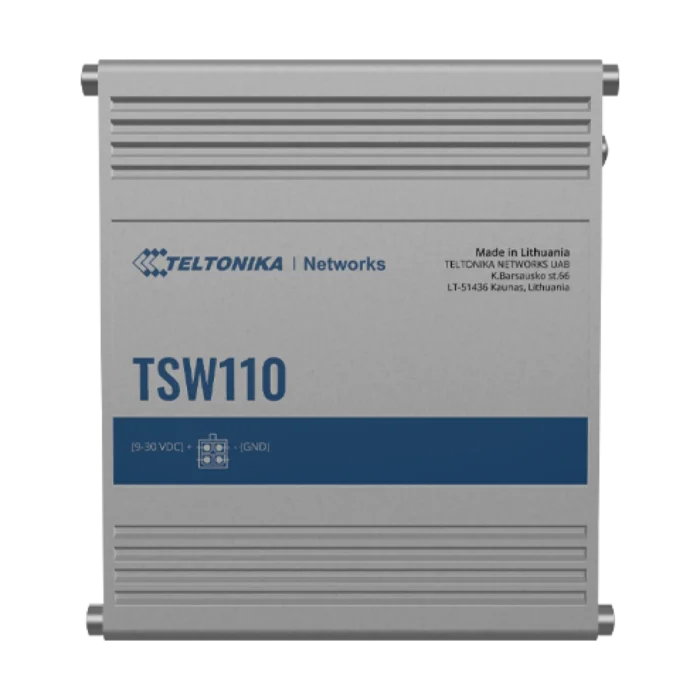

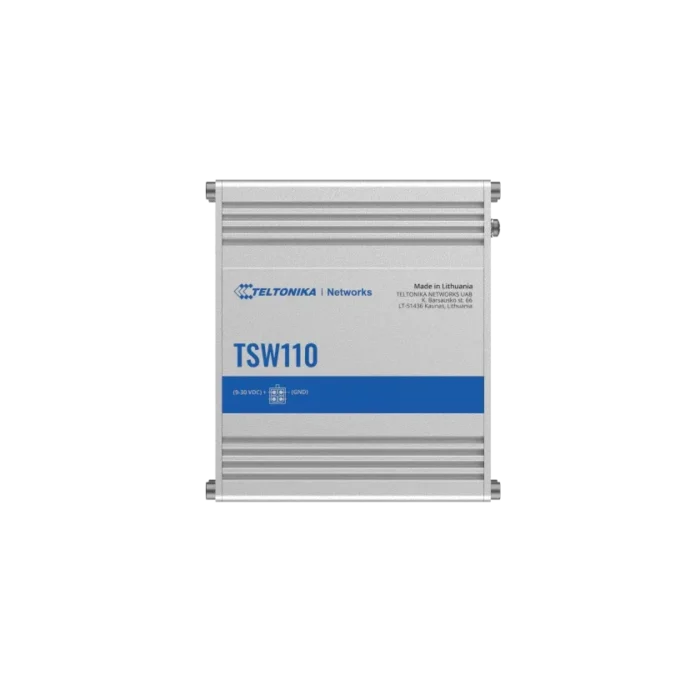

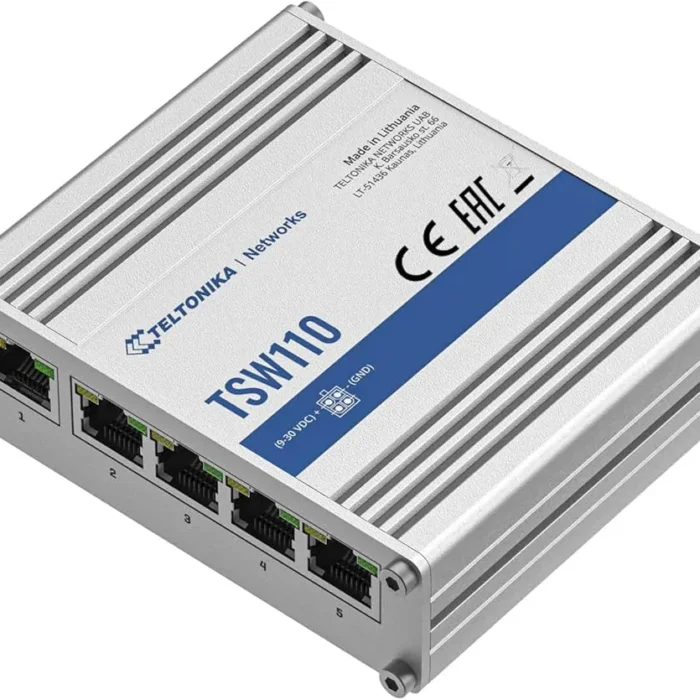

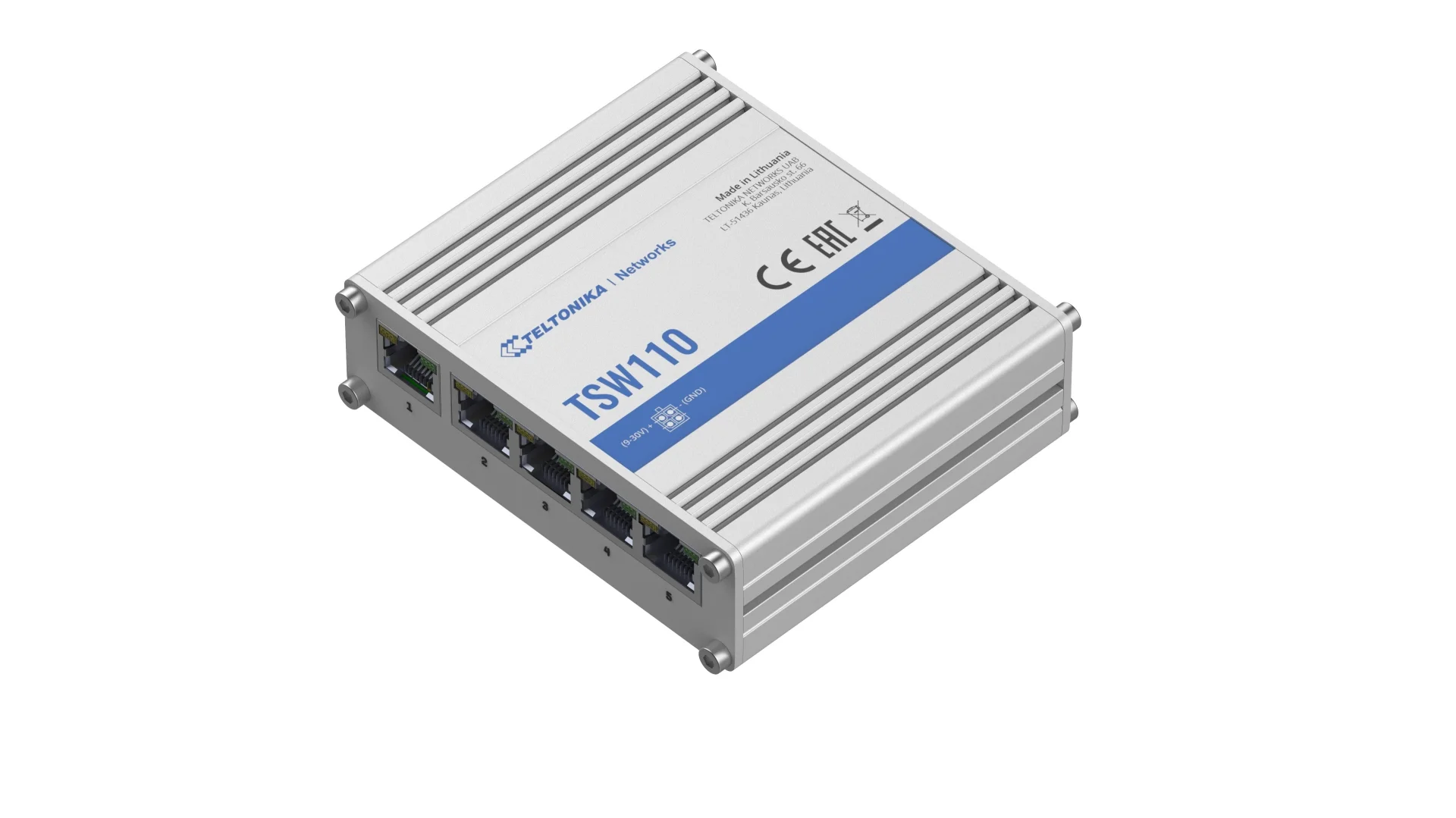

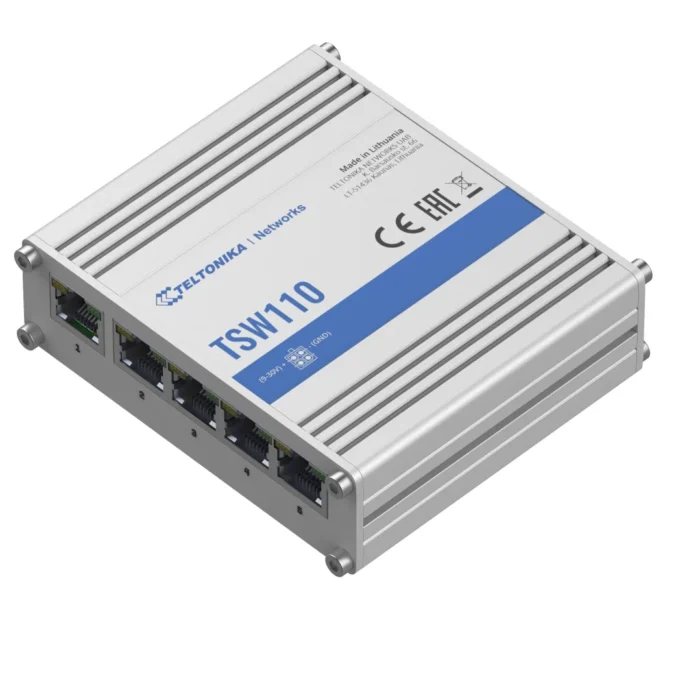

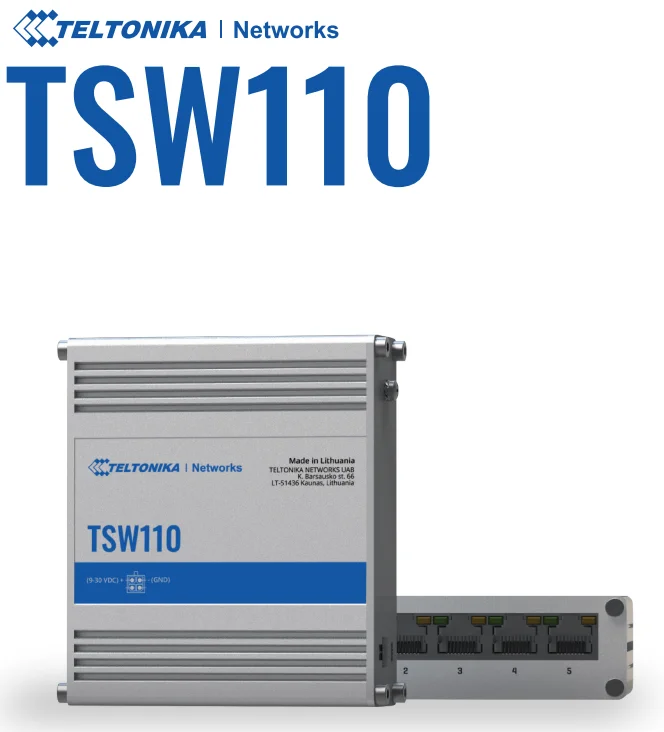

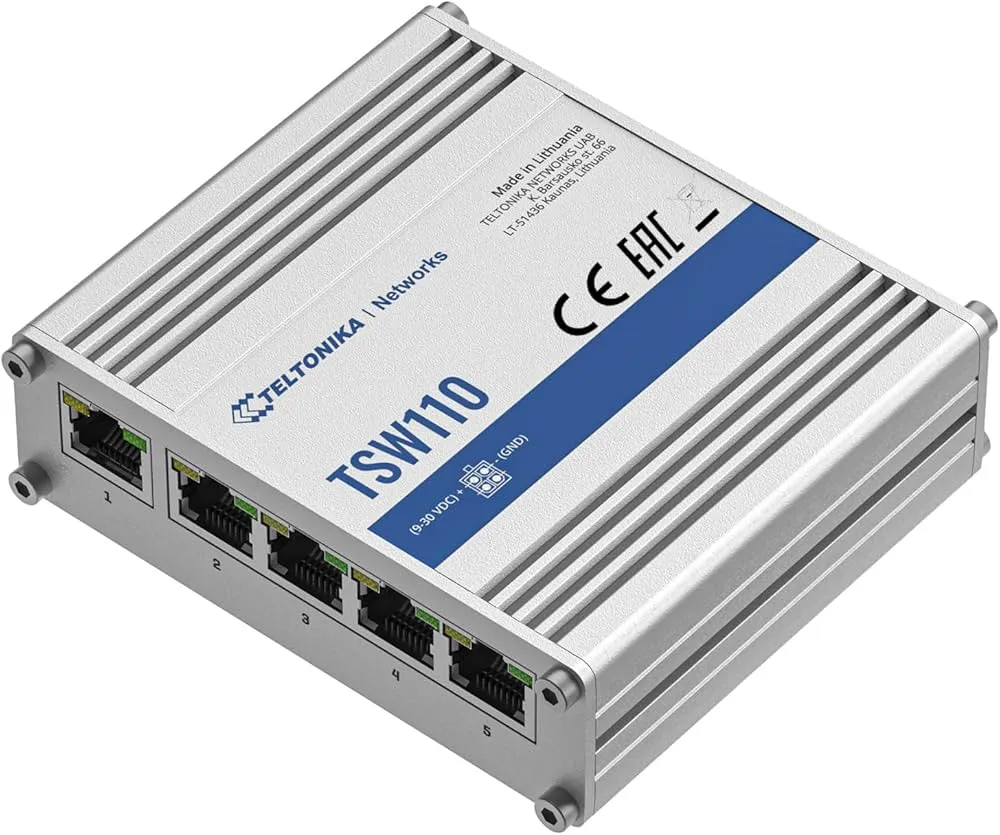

Teltonika TSW110: Industrial 5-Port Gigabit Unmanaged Ethernet Switch

Name: Teltonika TSW110: Reliable Gigabit Unmanaged Switch |AirPath
Price: 10200.00 INR
Availability: InStock

Teltonika TSW110 is a reliable industrial Gigabit Ethernet switch designed to connect multiple network devices in professional and industrial environments. It provides five Gigabit Ethernet ports with speeds up to 1000 Mbps, making it suitable for high-bandwidth wired networking applications.

The switch combines an unmanaged Layer 2 design with a rugged aluminium housing and flexible mounting options. Because it requires no complex configuration, it can be integrated into suitable Ethernet networks quickly and efficiently.

Teltonika TSW110 Key Features

Teltonika TSW110 is an unmanaged Layer 2 Ethernet switch designed for professional networking installations that require Gigabit connectivity. It provides five RJ45 Ethernet ports supporting 10/100/1000 Mbps speeds and automatic MDI/MDIX crossover.

The switch is designed for simple network expansion without requiring additional configuration. As a result, compatible Ethernet equipment can be connected directly to the available ports for straightforward wired networking.

Gigabit Ethernet Connectivity

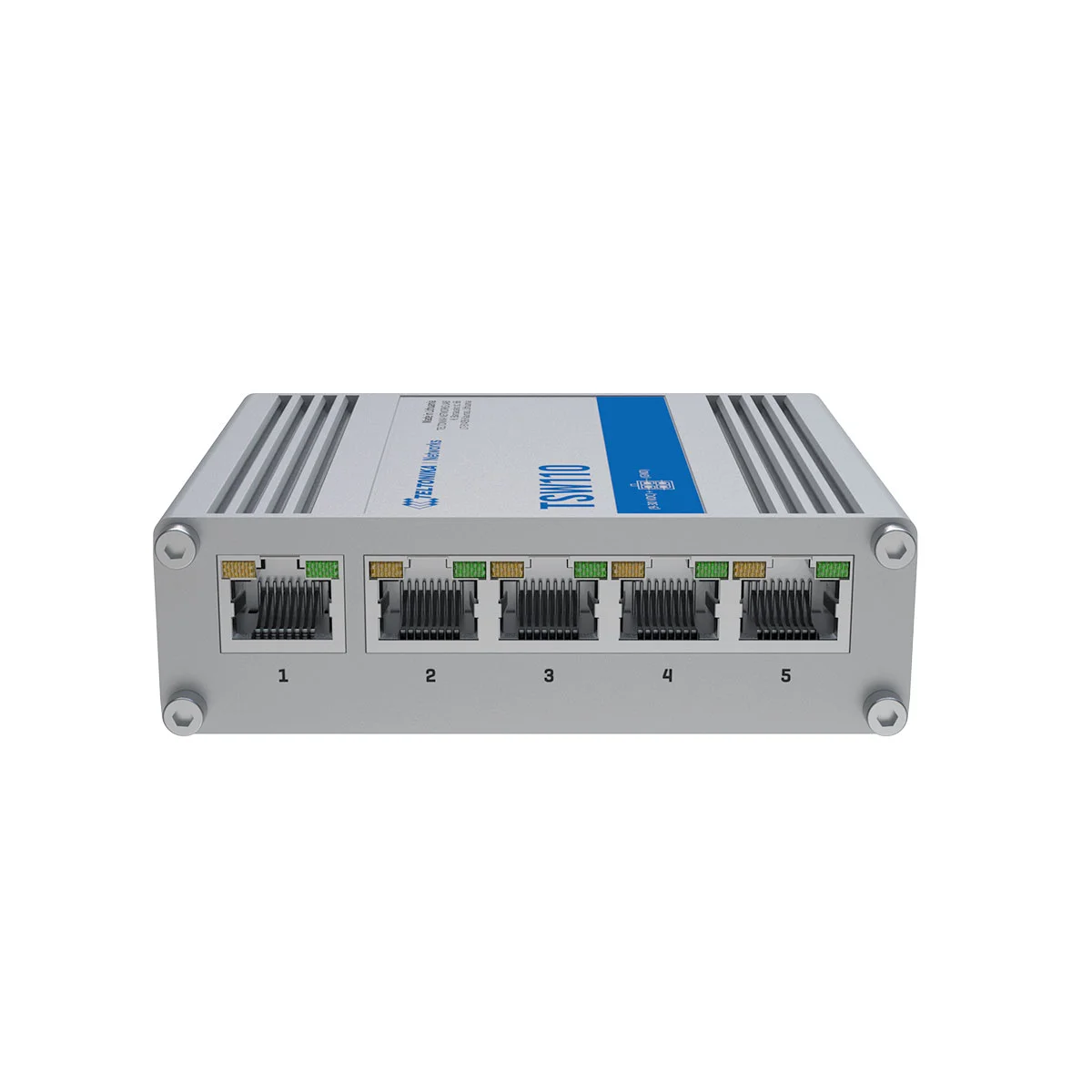

Teltonika TSW110 provides five RJ45 Gigabit Ethernet ports for connecting computers, industrial equipment, network infrastructure, and other Ethernet-enabled devices. Each port supports 10/100/1000 Mbps communication, allowing the switch to automatically operate at the appropriate supported speed.

The Ethernet interfaces support IEEE 802.3 series standards, including IEEE 802.3i, 802.3u, 802.3ab, 802.3x, and 802.3az. Auto MDI/MDIX crossover also simplifies Ethernet connections because compatible devices do not require special crossover cable arrangements.

For example, the five ports can be used to connect several local network devices while maintaining Gigabit Ethernet connectivity. Consequently, the switch can provide a practical wired networking point for industrial and professional installations.

Network Performance and Switching

The switch provides 10 Gbps of non-blocking bandwidth across its Ethernet interfaces. This allows the available Gigabit ports to support high-speed data communication within the limits of the connected equipment and network environment.

Teltonika TSW110 includes a 128 KB packet buffer and a 2K MAC address table. The device also supports jumbo frames up to 9216 bytes, which can be useful in network environments where larger Ethernet frames are supported.

The unmanaged design keeps configuration requirements simple. However, administrators should ensure that connected equipment, cabling, and network settings are compatible with the required Gigabit Ethernet performance.

Industrial Design and Installation

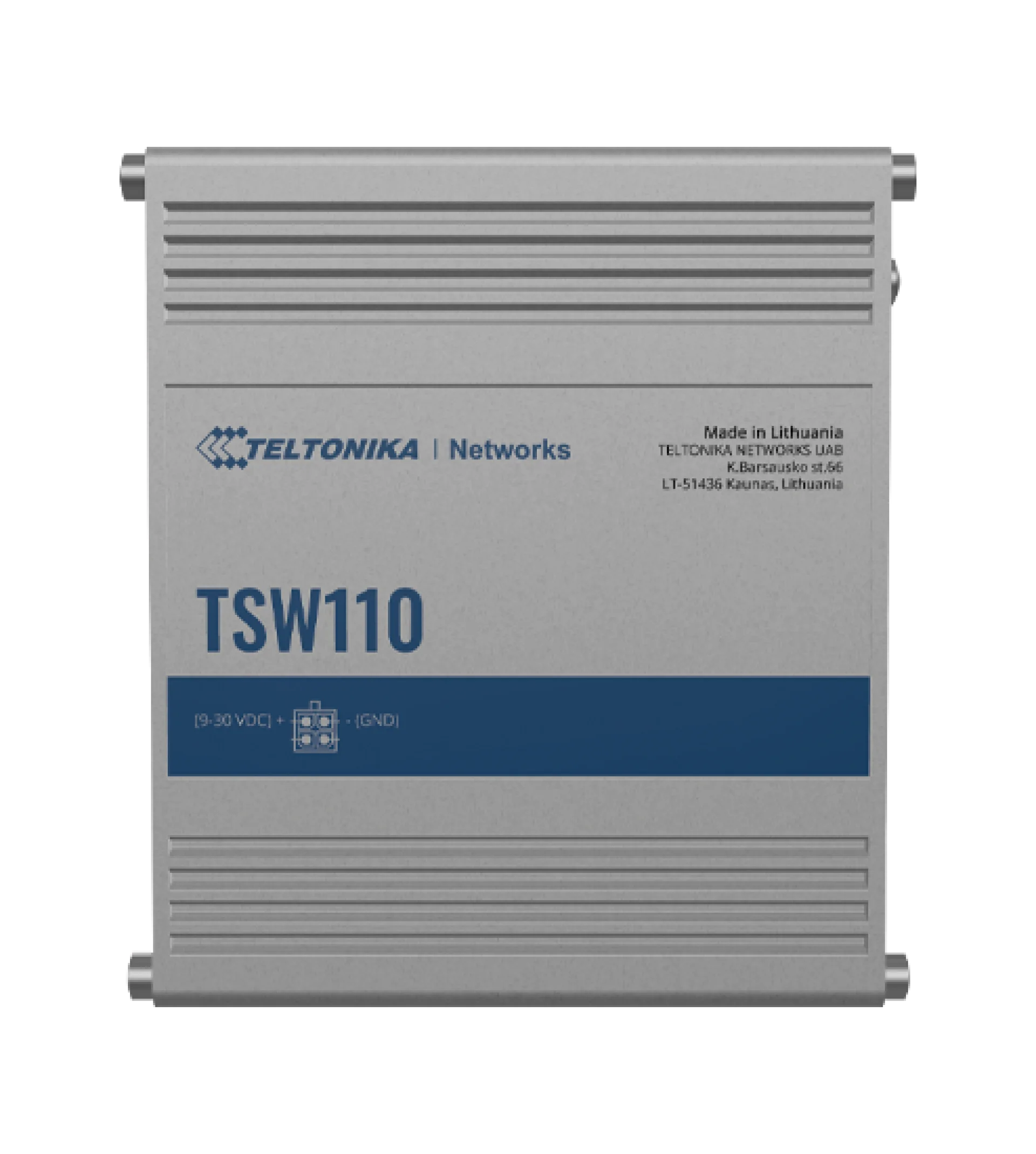

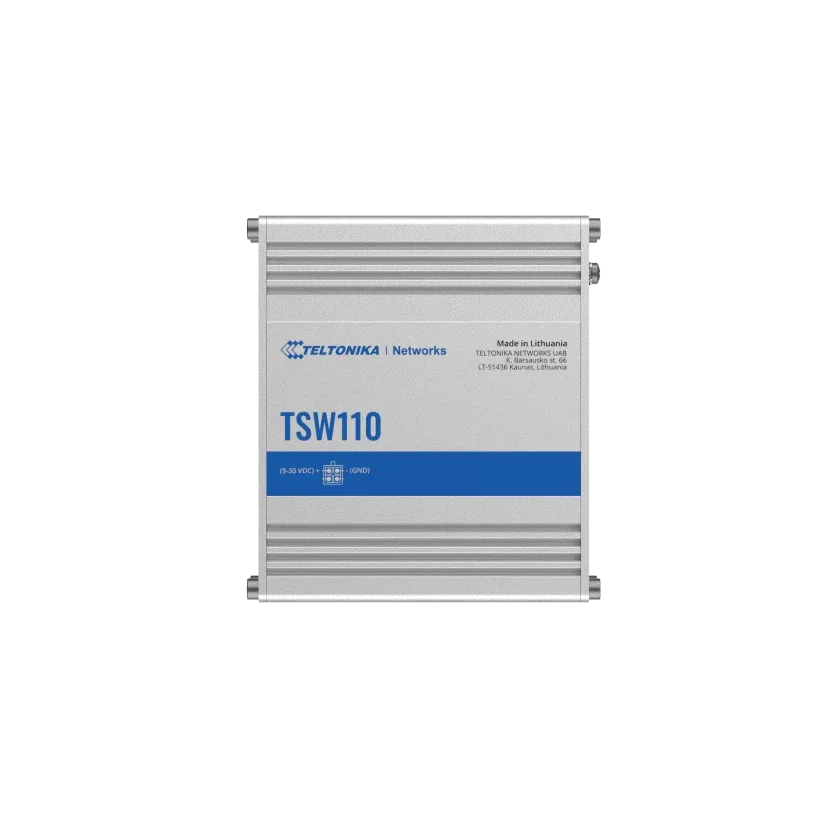

Teltonika TSW110 uses a full aluminium housing designed for professional industrial networking environments. The manufacturer specifies an operating temperature range from -40°C to +75°C and operating humidity from 10% to 90% non-condensing.

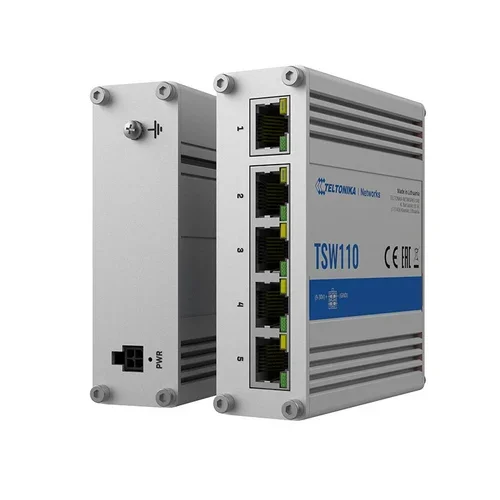

The switch supports DIN rail, wall mounting, and flat-surface placement with the appropriate mounting kit. Its 100 × 30 × 85 mm dimensions provide a compact form factor for suitable equipment cabinets and networking installations.

The device has an IP30 ingress protection rating and includes a grounding screw. Because industrial installations can have different power and mounting requirements, these features provide flexibility when integrating the switch into an appropriate network environment.

Applications

Teltonika TSW110 can be used wherever multiple devices need reliable Gigabit Ethernet connectivity without complex switch management. Its compact industrial construction and wide operating temperature range make it suitable for professional and industrial network deployments.

Technical Specifications

Product Type: L2 Unmanaged Ethernet Switch
Ethernet Ports: 5 × RJ45
Ethernet Speed: 10/100/1000 Mbps
Bandwidth: 10 Gbps non-blocking
Packet Buffer: 128 KB
MAC Address Table: 2K entries
Jumbo Frame Support: 9216 bytes
Ethernet Standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3x and 802.3az
Ethernet Feature: Auto MDI/MDIX crossover
Power Connector: 4-pin industrial DC power socket
Input Voltage: 9–30 VDC
Passive PoE: Power input through ETH1, not compatible with IEEE 802.3af, 802.3at or 802.3bt
Power Consumption: Less than 0.4 W idle / less than 1.8 W maximum
Housing: Full aluminium housing
Mounting: DIN rail, wall mount and flat-surface placement with additional kit
Operating Temperature: -40°C to +75°C
Operating Humidity: 10% to 90% non-condensing
Ingress Protection: IP30
Dimensions: 100 × 30 × 85 mm
Weight: Approximately 227 g

Buy Teltonika TSW110 in India

Teltonika TSW110 is suitable for industrial and professional networks that require five Gigabit Ethernet ports in a compact unmanaged switch. Its aluminium construction, wide operating temperature range, flexible mounting options, and 9–30 VDC input make it suitable for a range of wired networking installations.

If you are looking for related industrial networking products, explore Ethernet switches from AirPath for additional networking solutions.

For complete technical specifications, documentation, and manufacturer information, visit the official Teltonika TSW110 product page.

Frequently Asked Questions

What is Teltonika TSW110?

Teltonika TSW110 is an unmanaged Layer 2 industrial Ethernet switch with five Gigabit Ethernet ports. It is designed to provide high-speed wired network connectivity without requiring complex switch configuration.

How many Gigabit ports does Teltonika TSW110 have?

The switch has five RJ45 Gigabit Ethernet ports supporting 10/100/1000 Mbps speeds. This allows multiple compatible devices to connect through the same wired network.

Does Teltonika TSW110 support passive PoE?

Yes. The device can be powered through the ETH1 port using passive PoE at 9–30 VDC. However, this power input is not compatible with IEEE 802.3af, 802.3at, or 802.3bt standards.

Where can Teltonika TSW110 be used?

Teltonika TSW110 can be used in industrial Ethernet networks, factory environments, control cabinets, IoT infrastructure, and professional wired networking installations where five Gigabit ports are required.
