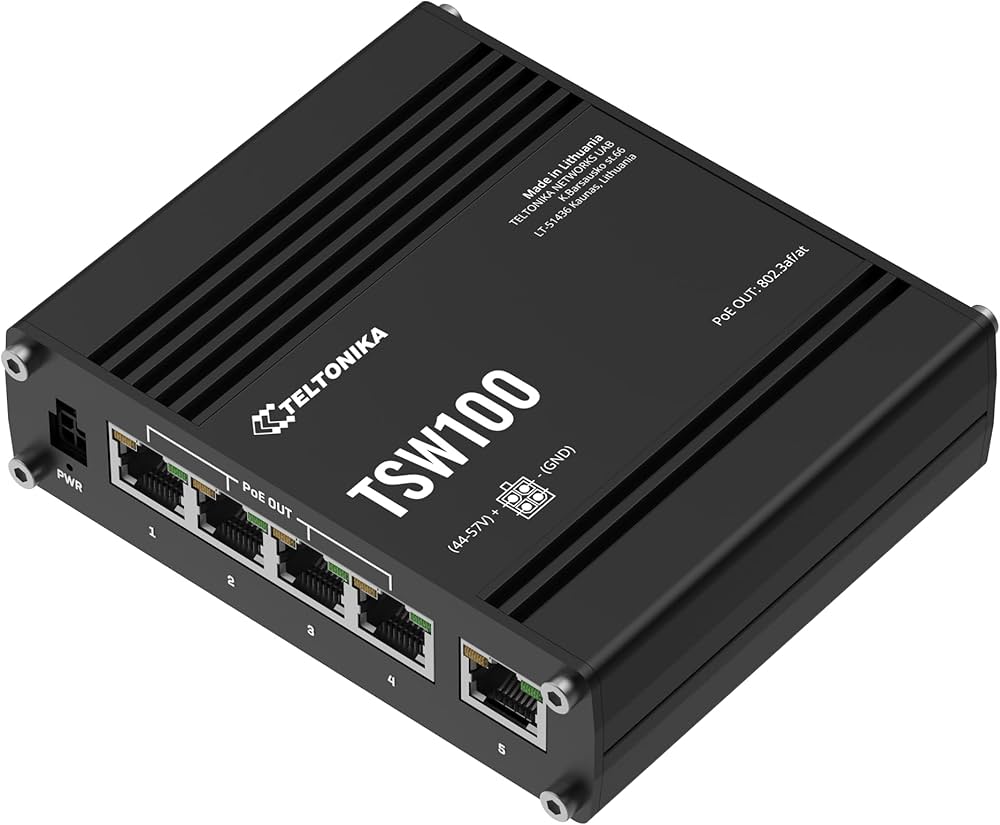

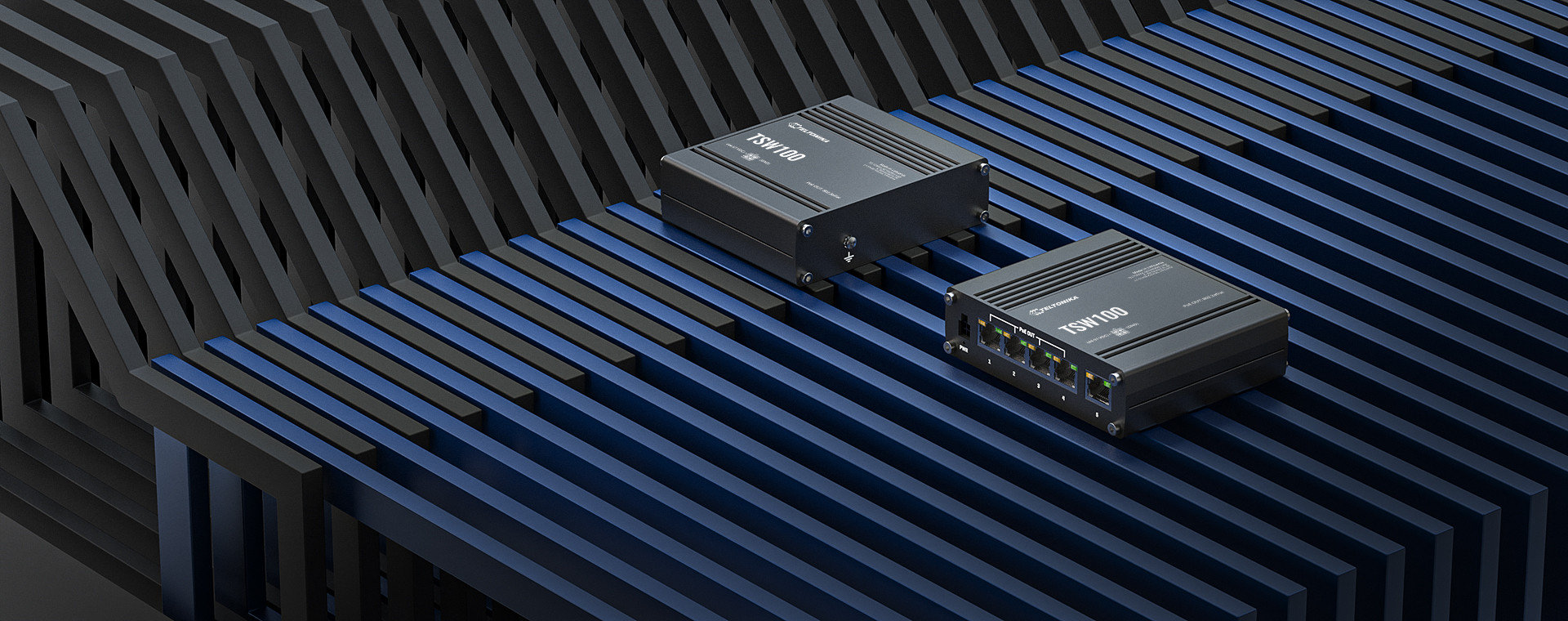

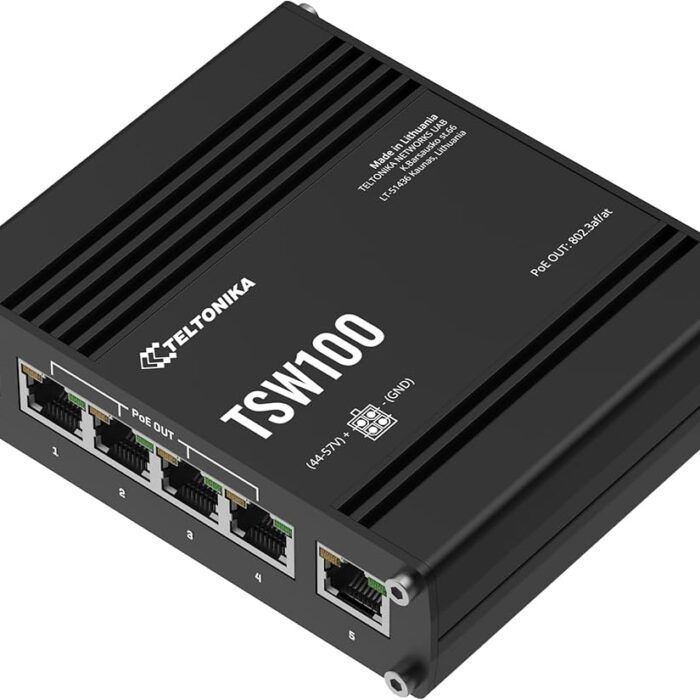

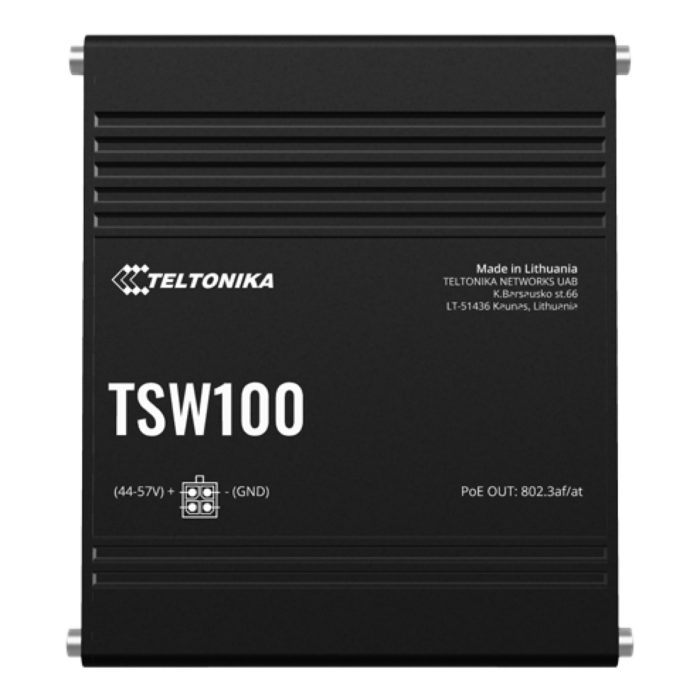

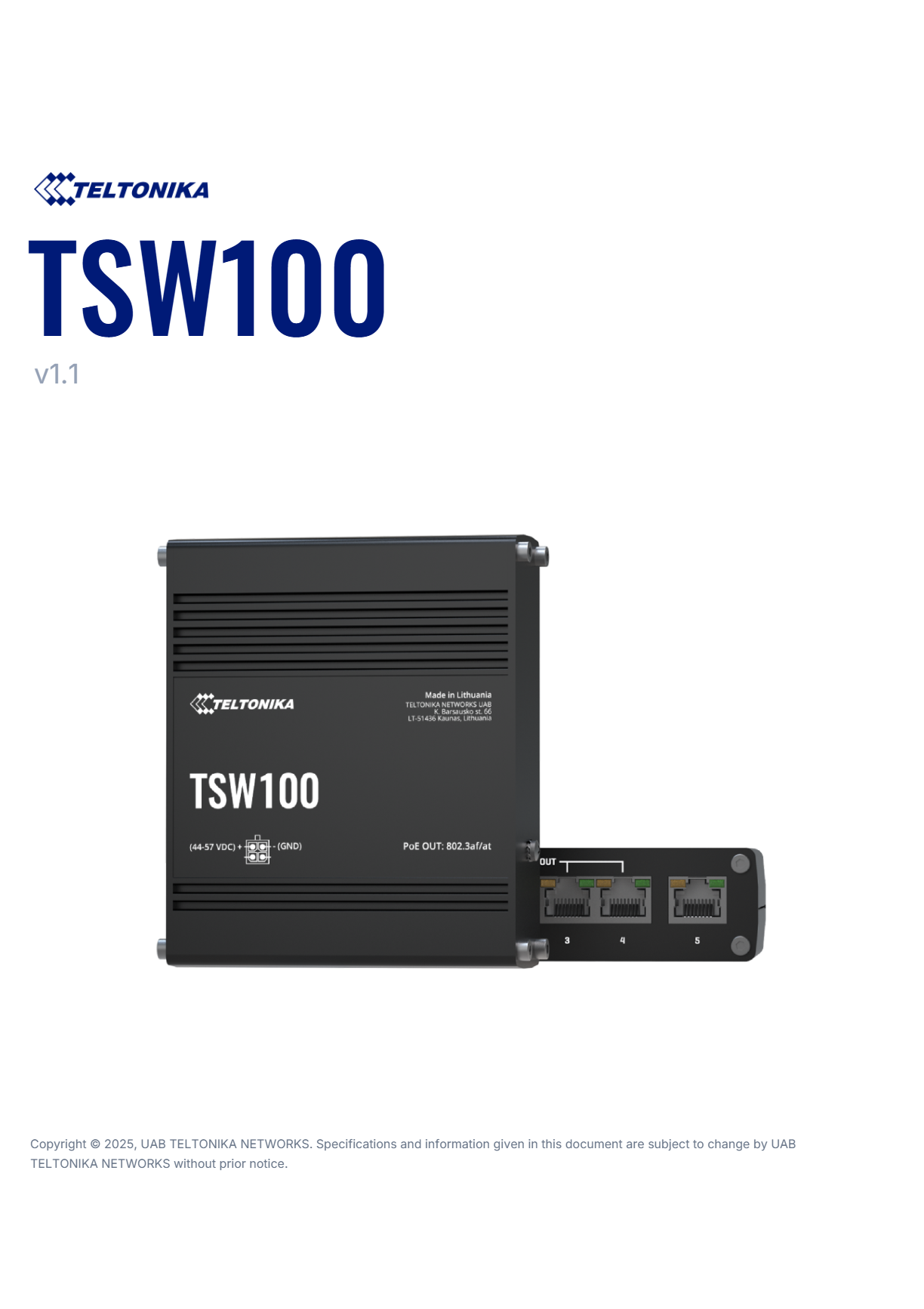

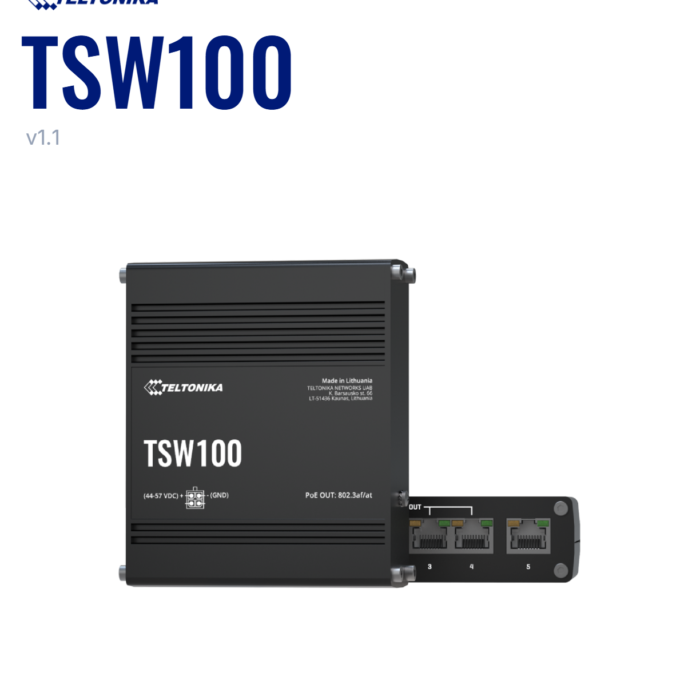

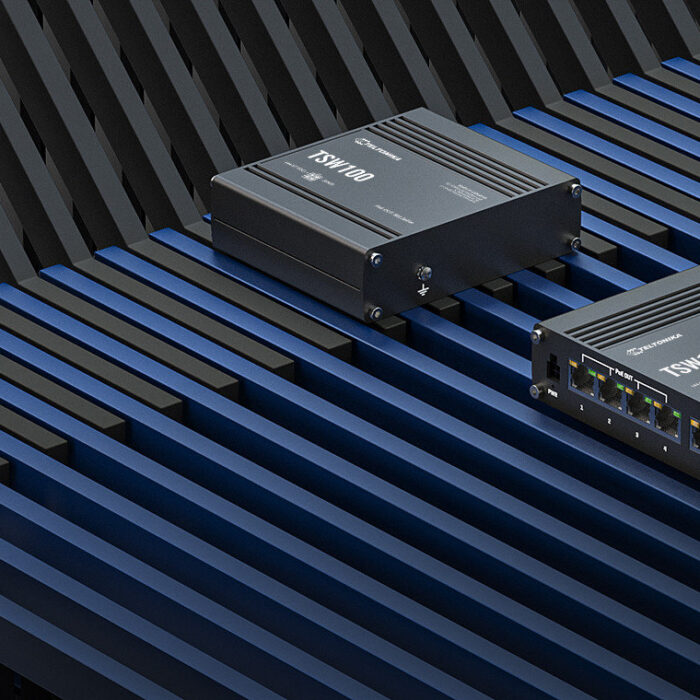

Teltonika TSW100 Industrial 5 Port Gigabit PoE+ Ethernet Switch

Powerful Industrial PoE+ Networking

The Teltonika TSW100 combines high-speed Gigabit Ethernet connectivity with PoE+ power delivery in a compact industrial design. Its five Gigabit Ethernet ports provide data connectivity up to 1000 Mbps, while ports 14 can simultaneously deliver power to compatible PoE devices.

As an unmanaged switch, the TSW100 provides plug-and-play operation without requiring complex configuration, making it suitable for installations where reliable network expansion and centralized device powering are required.

Key Features

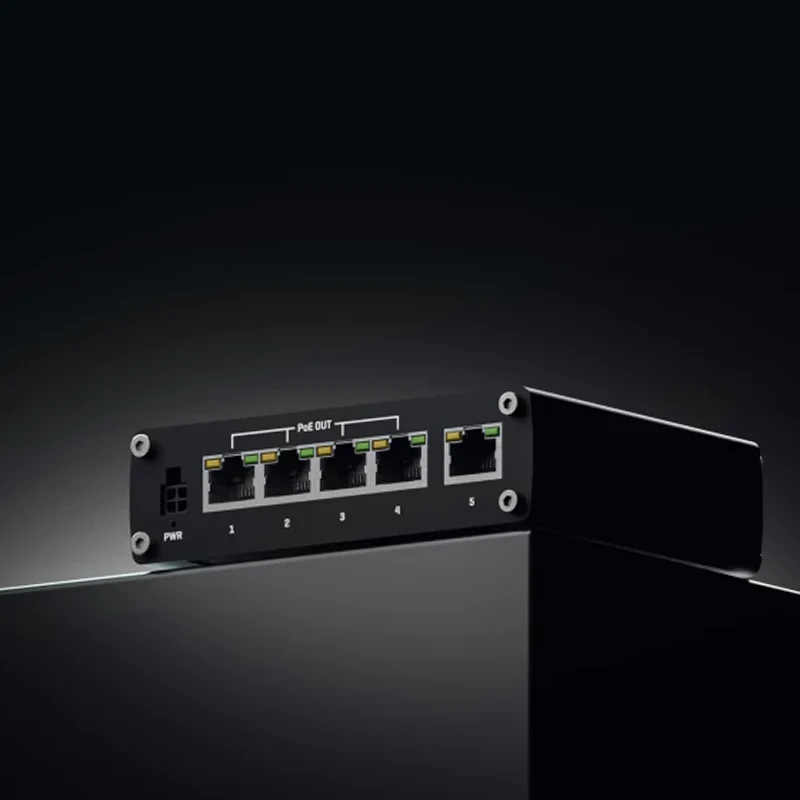

• 5 Gigabit Ethernet Ports: Supports 10/100/1000 Mbps Ethernet connectivity.
• 4 PoE+ Ports: Ports 14 support IEEE 802.3af and 802.3at standards.
• Up to 30 W per Port: Provides up to 30 W of PoE power per port at the PSE.
• 120 W Total PoE Budget: Supports a total PSE power budget of up to 120 W with an appropriate power supply.
• Unmanaged Operation: Plug-and-play networking with no additional configuration required.
• Auto MDI/MDIX: Automatically detects Ethernet cable connection requirements.
• 10 Gbps Non-Blocking Bandwidth: Provides high internal switching capacity.
• 2K MAC Address Table: Supports up to 2,000 MAC address entries.
• Jumbo Frames: Supports frames up to 9,216 bytes.
• Wide DC Input: Supports a wide 757 VDC input range.

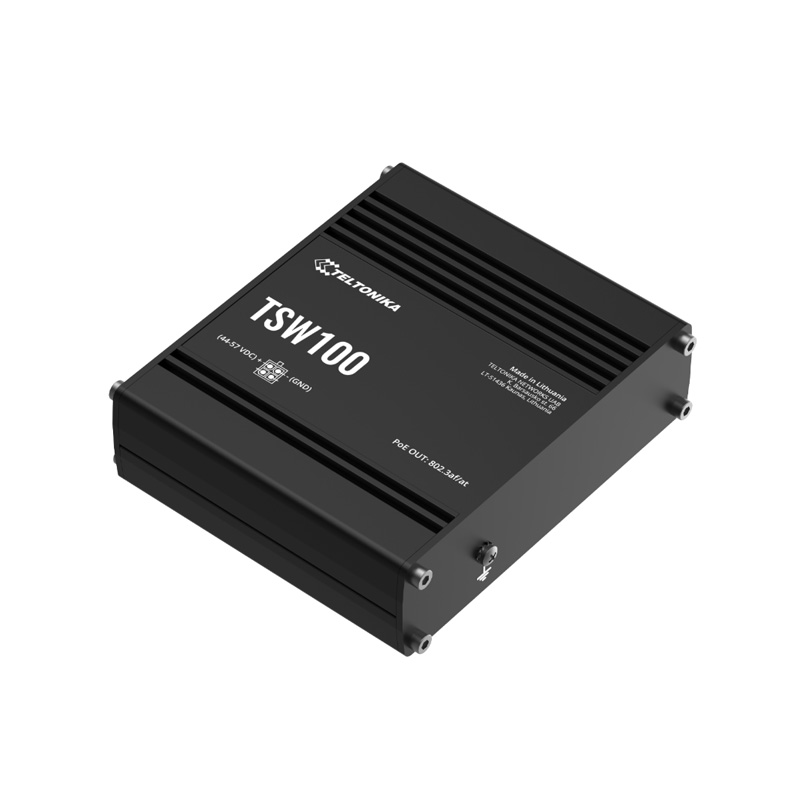

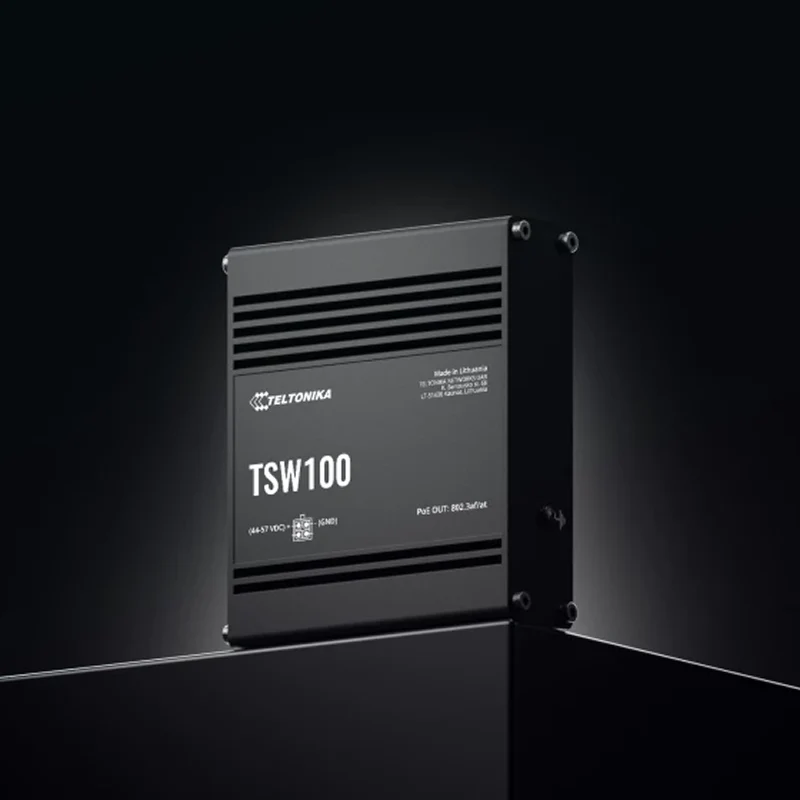

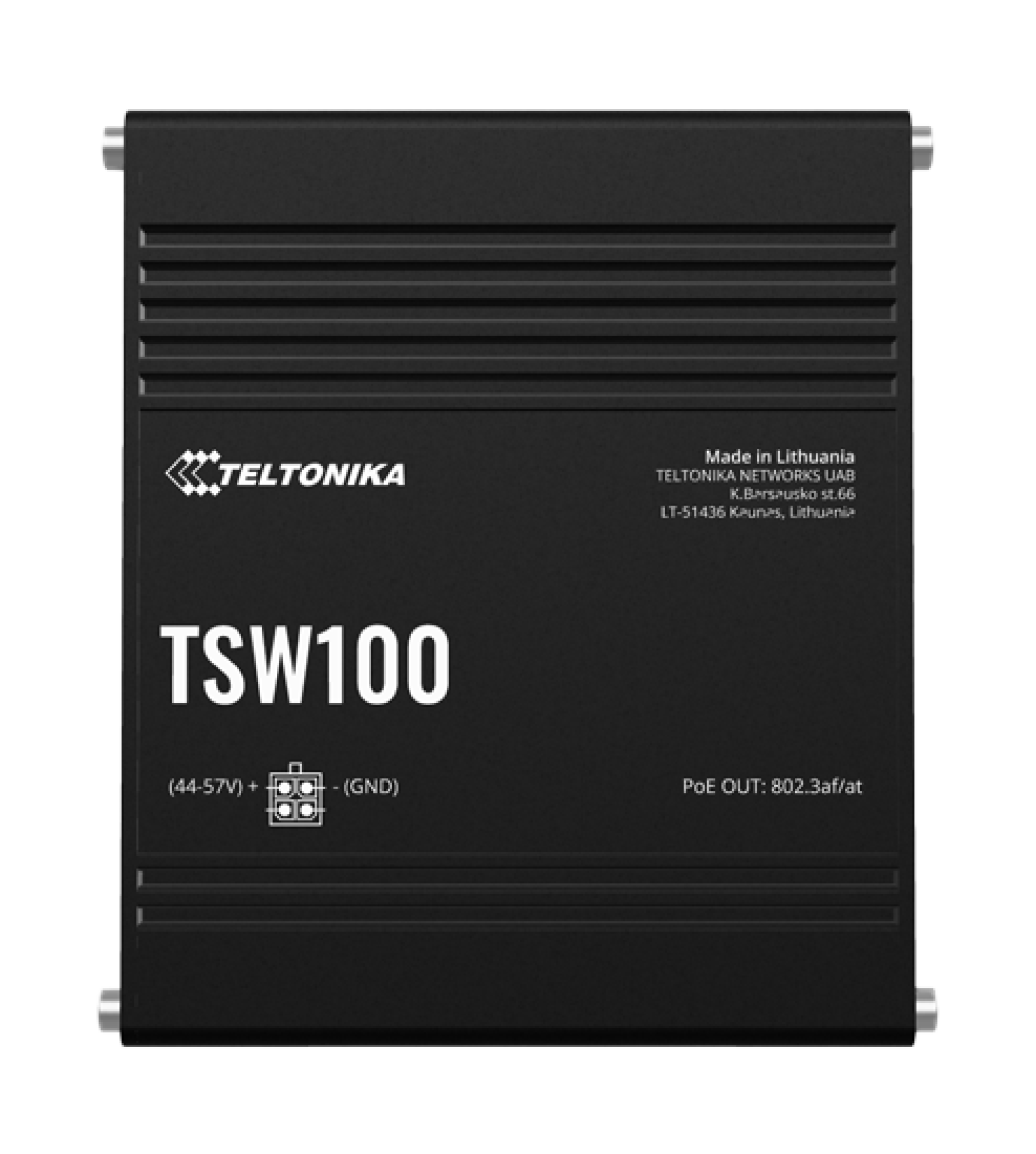

• Industrial Aluminium Housing: Rugged anodized aluminium construction.
• DIN Rail & Surface Mounting: Suitable for control cabinets and industrial installations.
• Wide Temperature Range: Designed for operation from -40C to +75C.

Efficient PoE+ Deployment

The TSW100 helps simplify installations by combining Ethernet data and power delivery over a single network cable. It can be used to power compatible IP cameras, wireless access points, routers, and other PoE-enabled equipment.

The maximum PoE output depends on the connected power supply. Teltonika notes that the standard power supply may provide a lower PoE budget, while a suitable higher-power supply is required to achieve the maximum 120 W PSE budget.

Industrial Applications

The TSW100 is suitable for:

• IP surveillance and CCTV networks
• Wireless access point installations
• Industrial automation
• IoT infrastructure
• Enterprise Ethernet networks
• Smart-city deployments
• Transportation systems
• Building automation
• Remote monitoring systems
• Industrial control cabinets

Technical Specifications

• Switch type: Unmanaged industrial PoE+ switch
• Ethernet: 5 RJ45
• Ethernet speed: 10/100/1000 Mbps
• PoE ports: 4 PoE+
• PoE standards: IEEE 802.3af / 802.3at
• Maximum PoE output: Up to 30 W per port
• Total PoE budget: Up to 120 W at PSE
• Non-blocking bandwidth: 10 Gbps
• MAC address table: 2K entries
• Jumbo frame: Up to 9,216 bytes
• Input voltage: 757 VDC
• PoE operating input: 4457 VDC
• Maximum consumption without PoE: Up to 9 W
• Housing: Anodized aluminium
• Mounting: DIN rail, wall, or flat surface with appropriate mounting accessories
• Operating temperature: -40C to +75C
• Operating humidity: 595% non-condensing
• Ingress protection: IP30
• Dimensions: 115 32.2 101.2 mm
• Weight: Approximately 350 g
