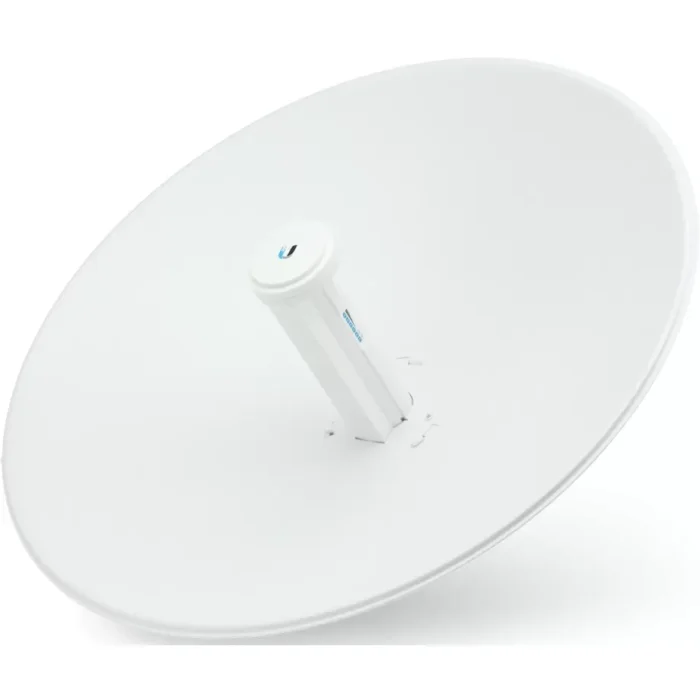

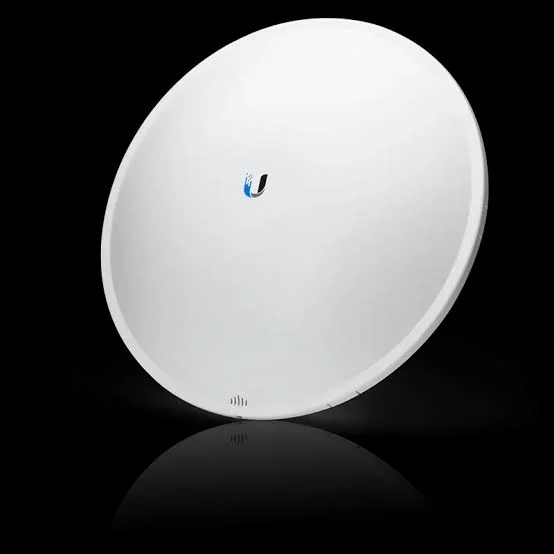

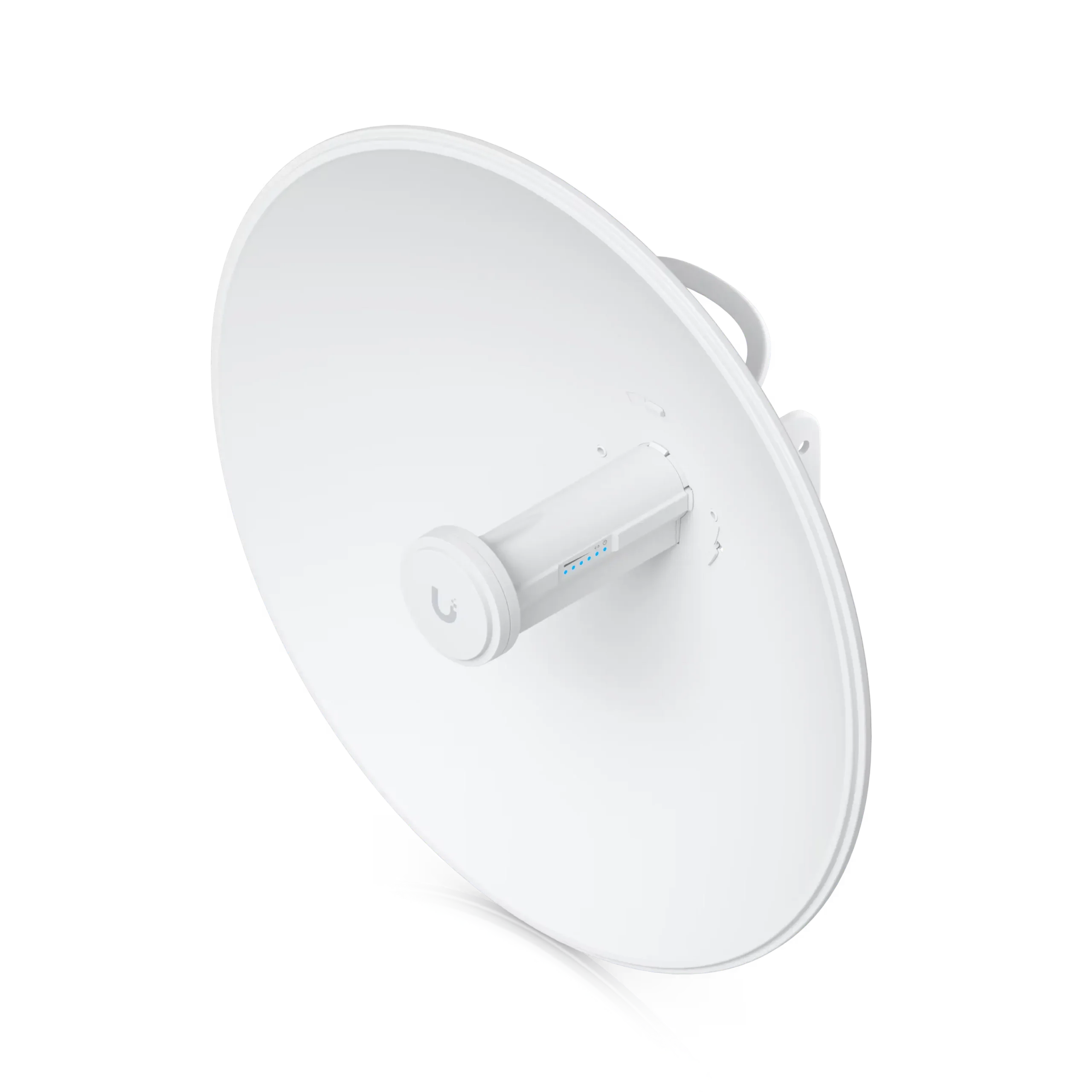

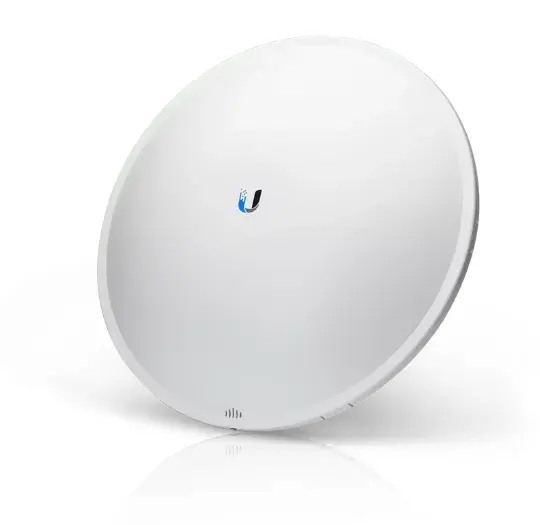

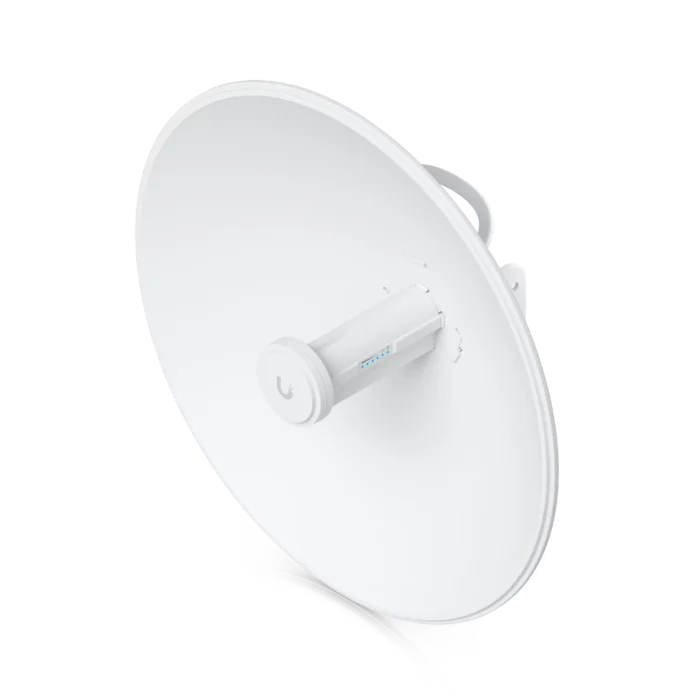

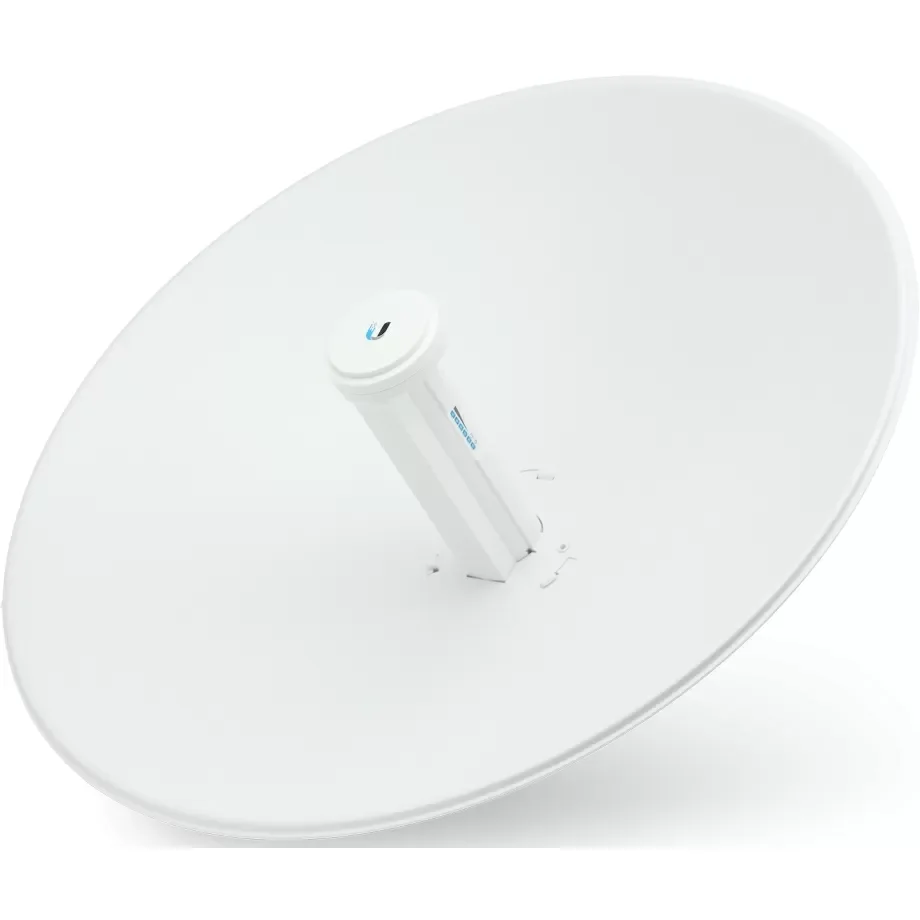

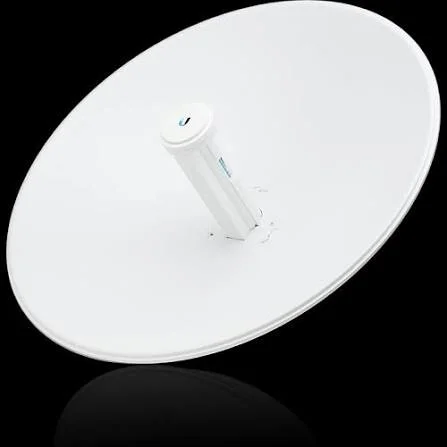

Ubiquiti PBE-5AC-500: Powerful 5GHz PowerBeam | AirPath is an outdoor 5 GHz wireless bridge designed for high-performance point-to-point and point-to-multipoint networking. Featuring a directional 27 dBi antenna, airMAX AC technology, and Ubiquiti PBE-5AC-500 Gigabit Ethernet, it provides a practical solution for connecting remote buildings, business locations, and wireless infrastructure.

Table of Contents

• Key Features
• Wireless Performance and Antenna Design
• Network Connectivity and Management
• Outdoor Installation and Power
• Applications
• Technical Specifications
• Buy Ubiquiti PBE-5AC-500 in India
• Frequently Asked Questions

Key Features of Ubiquiti PBE-5AC-500: Powerful 5GHz PowerBeam | AirPath

Ubiquiti PBE-5AC-500: Powerful 5GHz PowerBeam | AirPath combines directional wireless connectivity with an integrated dish antenna for outdoor networking deployments. Ubiquiti PBE-5AC-500 design helps network installers establish wireless links between locations where running physical Ethernet or fiber cables may be difficult.

• 5 GHz wireless operation: Supports wireless networking across the manufacturer’s specified frequency range, subject to regional restrictions.
• 27 dBi antenna gain: Provides directional wireless coverage for suitable long-distance links.
• airMAX AC technology: Supports Ubiquiti’s proprietary airMAX AC wireless networking mode.
• Gigabit Ethernet: Includes one 10/100/1000 Mbps RJ45 network interface.
• Flexible link configuration: Supports access point and station operating modes.
• Outdoor-ready construction: Features a UV-stabilized polycarbonate enclosure and included pole-mount hardware.
• Passive PoE: Uses a compatible passive Power over Ethernet connection for power delivery.

Because the antenna is directional, correct alignment is important when establishing a wireless connection. Consequently, installers should consider line of sight, interference, mounting position, and the capabilities of the remote device before deployment.

Ubiquiti PBE-5AC-500 Wireless Performance and Antenna Design

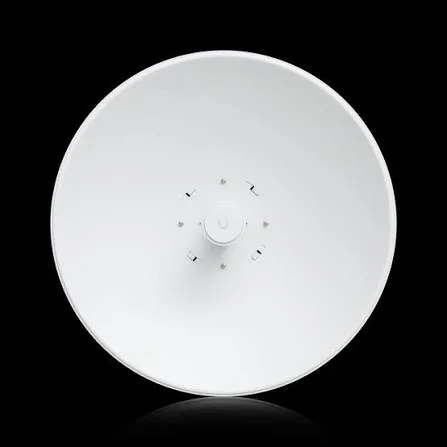

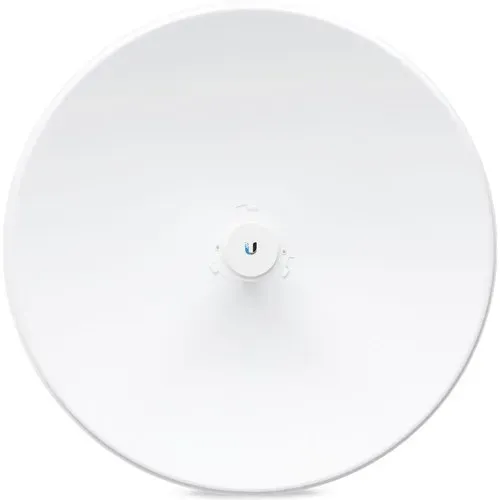

The integrated 27 dBi directional antenna is a central feature of this wireless bridge. It focuses radio energy toward the intended connection, making the device suitable for appropriately planned outdoor links between buildings, network sites, or other compatible locations.

The manufacturer specifies a real TCP/IP throughput rate of 450 Mbps or higher under suitable conditions. Actual performance varies with signal quality, channel configuration, interference, distance, and the capabilities of the connected equipment.

The device operates within a supported worldwide frequency range of 5150–5875 MHz, with regional frequency restrictions applying. Network operators must configure permitted channels and transmit settings according to local regulations.

For example, a wireless service provider may use compatible units to connect a central network site with a remote building. However, the achievable range and throughput depend on the complete radio link, including antenna alignment, environmental conditions, and the receiving device.

Ubiquiti PBE-5AC-500 Network Connectivity and Management

Ubiquiti PBE-5AC-500 includes one Gigabit Ethernet port for connecting the device to a compatible router, switch, or other network equipment. ubiquiti PBE-5AC-500 wired interface provides the local network connection while the wireless radio carries traffic across the configured link.

The device supports airMAX AC mode and access point or station operation. These capabilities allow network professionals to plan compatible wireless links according to the requirements of their infrastructure.

Management and monitoring features include a web interface, SSH, SNMP, and network statistics. Supported services include bridging, DHCP, routing, and ping watchdog functionality, depending on the selected configuration and software capabilities.

As a result, administrators can monitor connection performance and configure supported networking functions. For reliable operation, both ends of the wireless link should be configured with compatible settings and suitable security controls.

Ubiquiti PBE-5AC-500 Outdoor Installation and Power Requirements

The outdoor enclosure uses UV-stabilized polycarbonate, and the product includes pole-mount hardware. Its design supports installations where equipment must be mounted outside to establish a suitable directional wireless connection.

The specified operating temperature range is -40°C to 70°C, with an operating humidity range of 5% to 95% non-condensing. The device is designed for outdoor use, but installers should follow the manufacturer’s mounting and installation guidance.

Power is supplied through passive PoE, and a compatible 24 V, 0.5 A Gigabit PoE adapter is specified for the product. Maximum power consumption is 8.5 W, so the power source and Ethernet connection must match the device’s requirements.

Before installation Ubiquiti PBE-5AC-500 , verify the mounting position, cable route, power supply, and grounding requirements. Proper alignment and secure mounting help reduce connection problems and support consistent wireless performance.

Applications

Ubiquiti PBE-5AC-500: Powerful 5GHz PowerBeam | AirPath This outdoor wireless bridge can support different networking scenarios when the site layout and radio conditions are appropriate.

• Building-to-building links: Ubiquiti PBE-5AC-500 Connect separate buildings without installing a dedicated physical data cable between them.
• Internet service providers: Support compatible wireless infrastructure for service delivery.
• Business campuses: Establish network connectivity between suitable campus locations.
• Remote facilities: Connect offices, warehouses, or other sites where cable installation is challenging.
• Wireless backhaul: Carry network traffic between compatible wireless infrastructure points.

Every installation should be assessed individually. Distance, Fresnel zone clearance, interference, local frequency rules, and the capabilities of the remote radio all influence whether the product is suitable for a particular link.

Technical Specifications

• Product: Ubiquiti PowerBeam 5AC 500
• Model: PBE-5AC-500
• Wireless band: 5 GHz
• Supported frequency range: 5150–5875 MHz worldwide, subject to regional restrictions
• Antenna gain: 27 dBi
• Wireless technology: airMAX AC
• Real TCP/IP throughput: 450 Mbps or higher under suitable conditions
• Networking interface: 1 × 10/100/1000 Mbps RJ45
• Operating modes: Access point and station
• Power method: Passive PoE
• Specified power supply: 24 V, 0.5 A Gigabit PoE adapter
• Maximum power consumption: 8.5 W
• Enclosure material: UV-stabilized polycarbonate
• Mounting: Pole mount
• Operating temperature: -40°C to 70°C
• Operating humidity: 5%–95% non-condensing
• Dimensions without radome: 520 × 520 × 308 mm
• Dimensions with radome: 525 × 525 × 315 mm
• Weight without radome: 2.35 kg

Review the official Ubiquiti PowerBeam 5AC 500 product specifications for additional technical details and installation documentation.

Buy Ubiquiti PBE-5AC-500: Powerful 5GHz PowerBeam | AirPath in India

Ubiquiti PBE-5AC-500: Powerful 5GHz PowerBeam | AirPath Choosing the right wireless bridge starts with understanding the distance, network capacity, installation environment, and compatibility requirements of your project. Check the radio configuration, power requirements, and mounting accessories before placing an order.

AirPath Wirelessnet Solutions supplies networking equipment for businesses, internet service providers, and system integrators. Explore the available Ubiquiti networking products at AirPath to find equipment for wireless connectivity and infrastructure projects.

For a successful deployment, plan the wireless link carefully and confirm that the selected equipment meets your regional requirements. This helps you make an informed purchasing decision for your network.

Frequently Asked Questions

What is Ubiquiti PBE-5AC-500: Powerful 5GHz PowerBeam | AirPath used for?

It is an outdoor wireless bridge designed for compatible point-to-point and point-to-multipoint networking deployments, including links between buildings and network locations.

What is the antenna gain of this PowerBeam model?

The manufacturer specifies an integrated directional antenna with 27 dBi gain. Actual link performance depends on installation conditions and the configuration of the complete wireless connection.

Does the device support Gigabit Ethernet?

Yes. It includes one 10/100/1000 Mbps RJ45 Ethernet port for wired network connectivity.

What power supply does it require?

Ubiquiti PBE-5AC-500 device uses passive PoE and specifies a compatible 24 V, 0.5 A Gigabit PoE adapter. Verify the adapter and voltage requirements before connecting power.

Ubiquiti PBE-5AC-500: Powerful 5GHz PowerBeam | AirPath is worth considering for outdoor wireless links that require a directional 27 dBi antenna, airMAX AC technology, and Gigabit Ethernet. Evaluate the site conditions and compatibility requirements to determine whether it is the right choice for your project.
