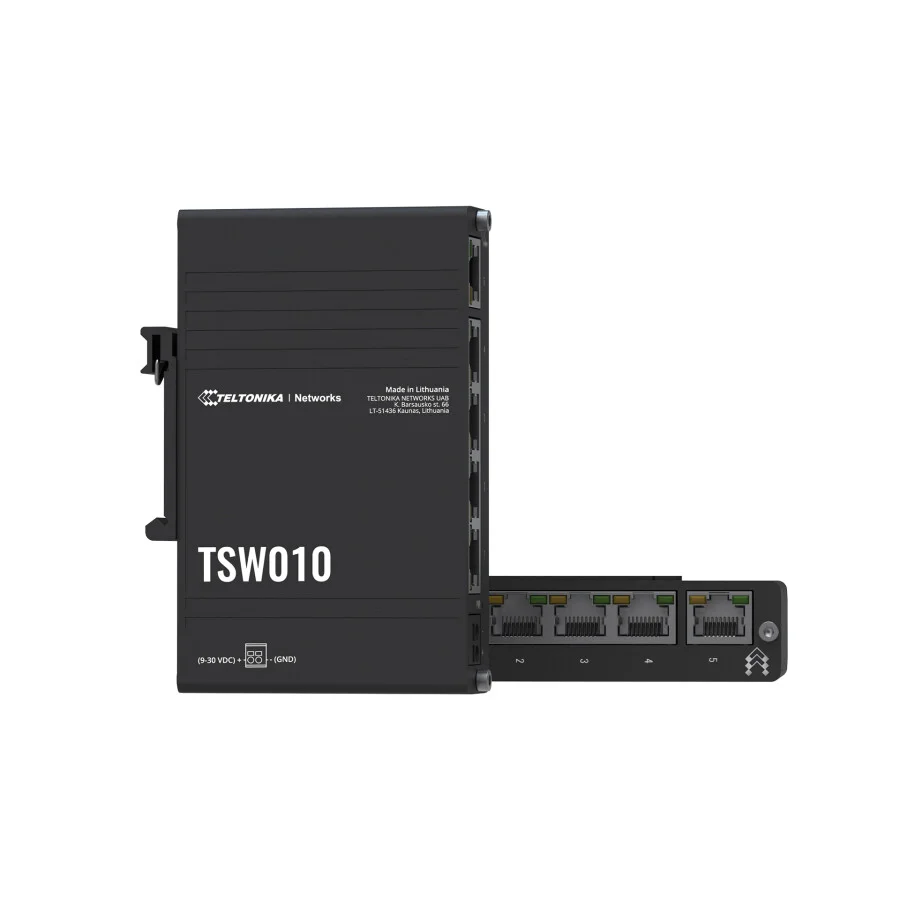

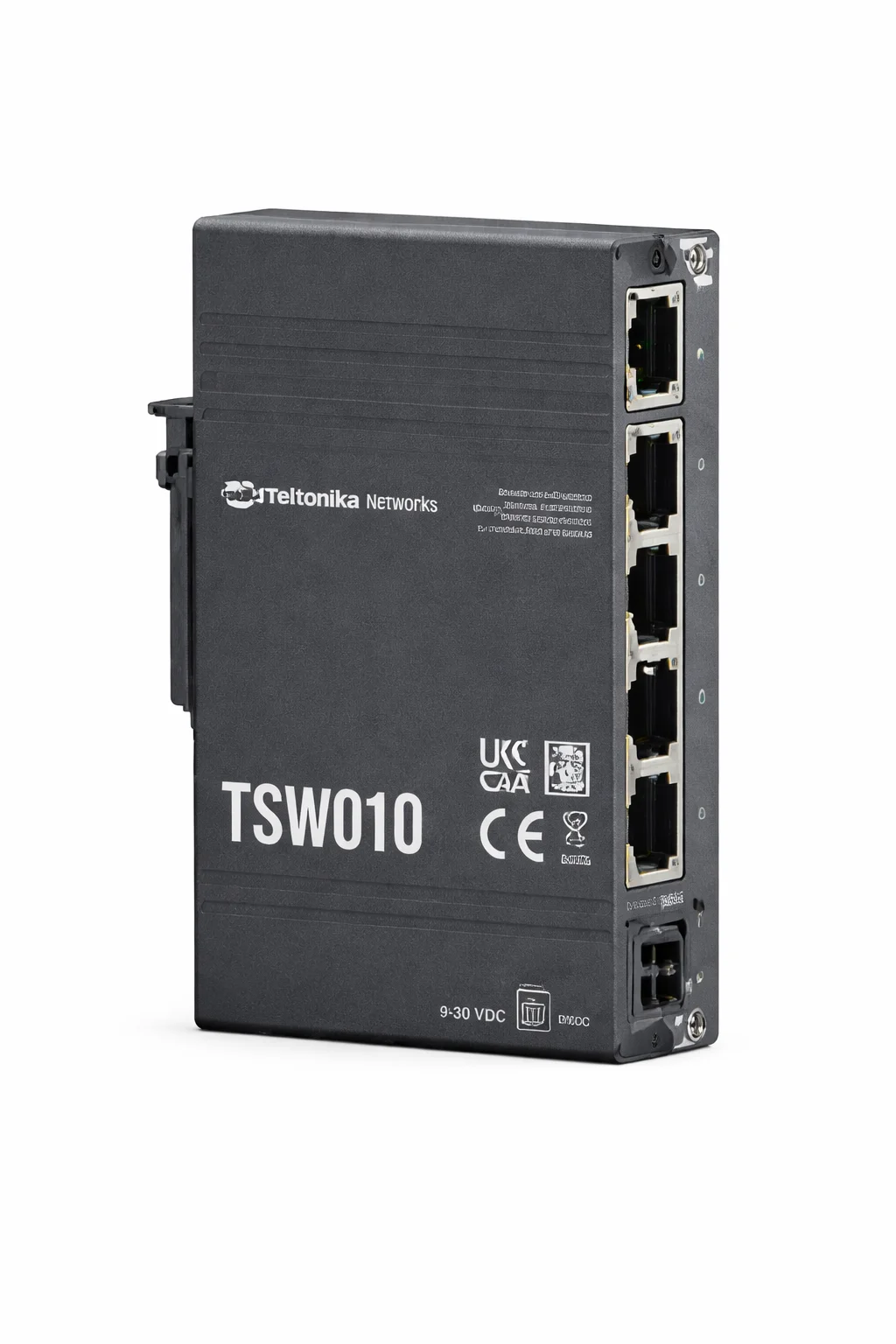

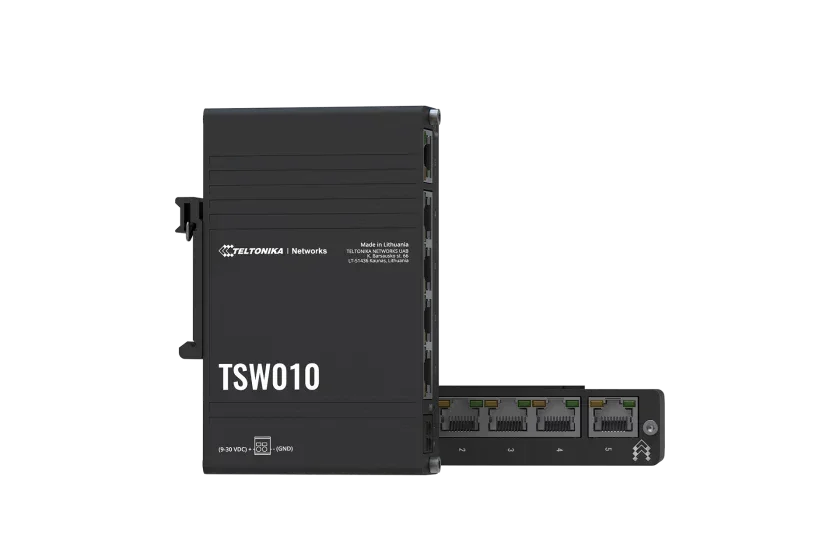

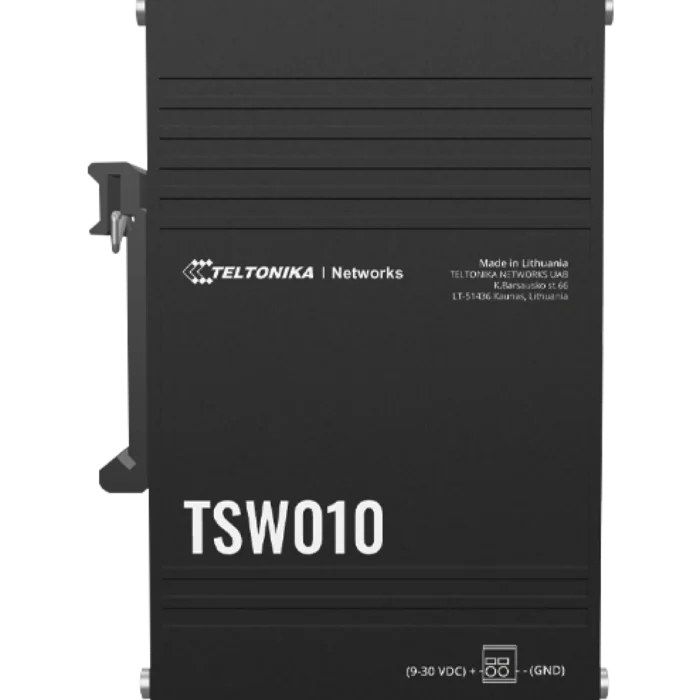

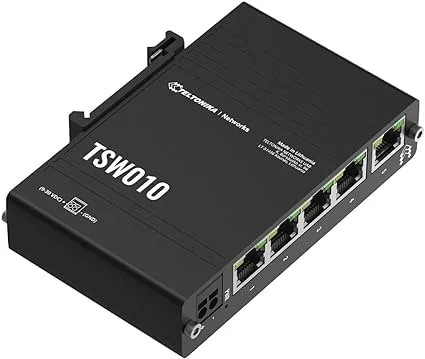

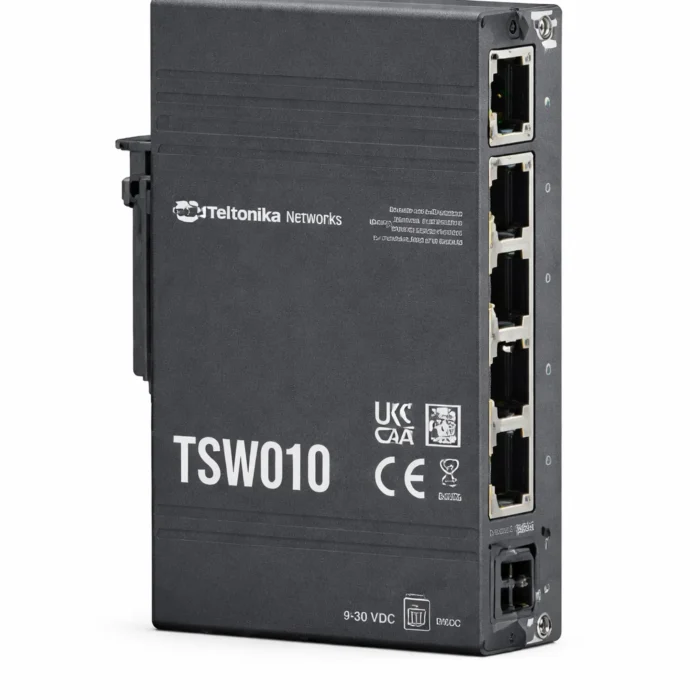

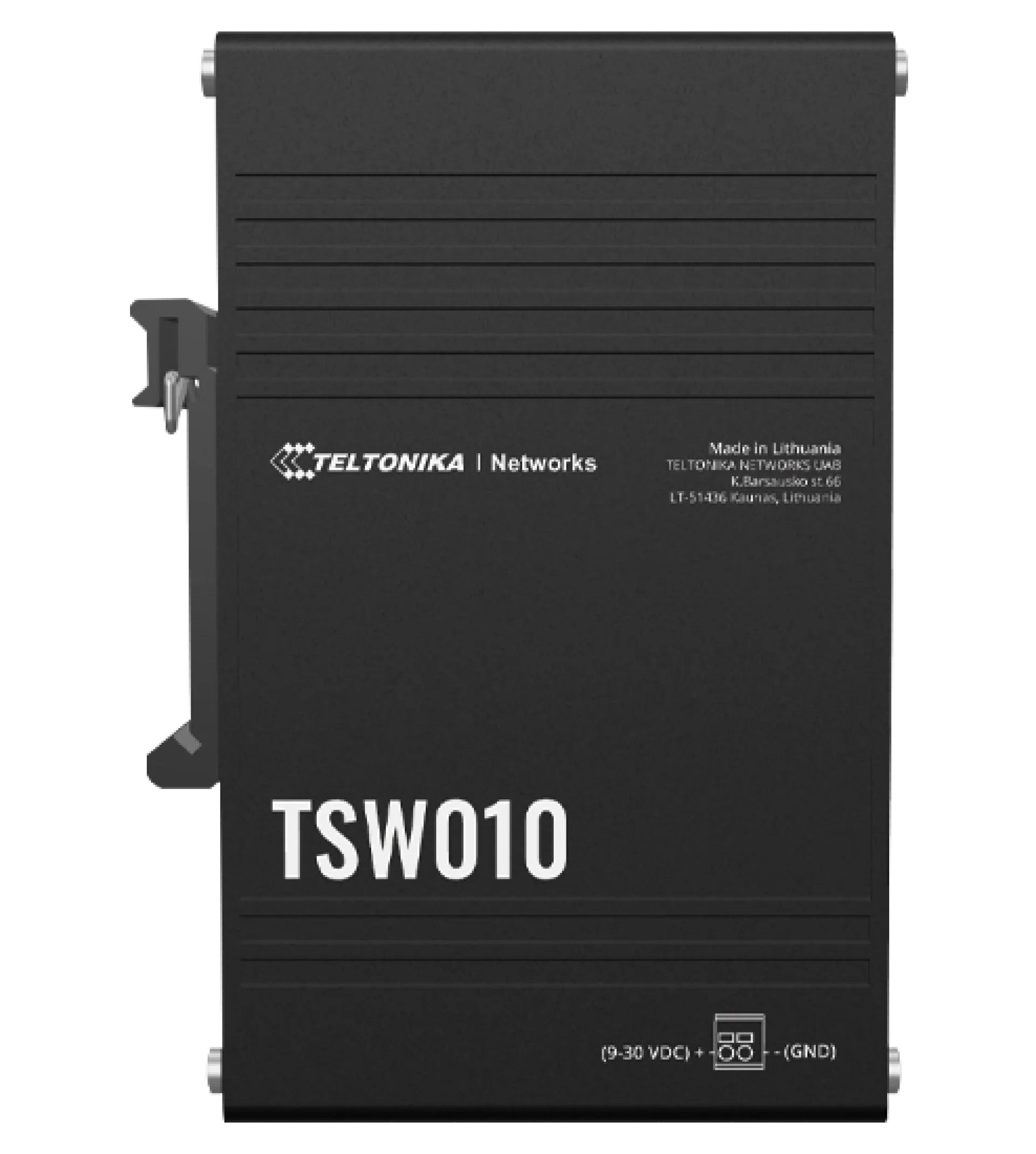

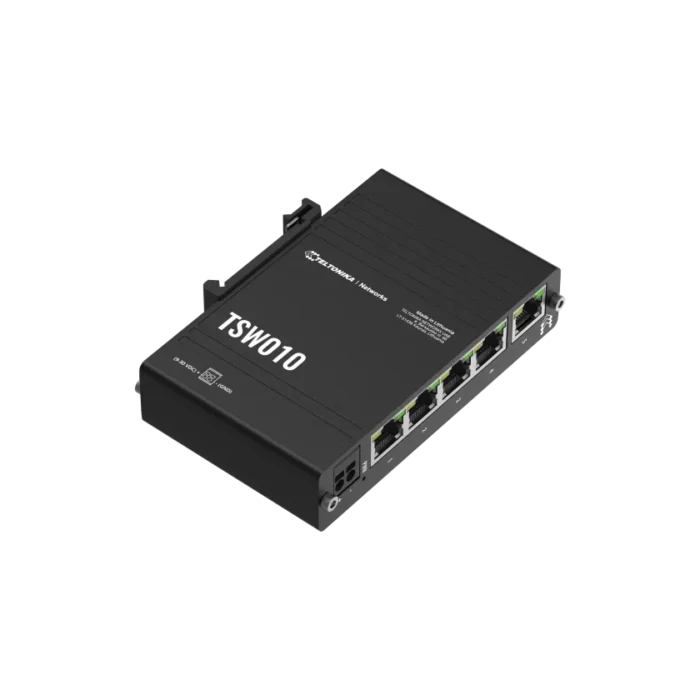

Teltonika TSW010: Compact 5-Port Industrial Ethernet Switch

Name: Teltonika TSW010: Reliable 5-Port Ethernet Switch | AirPath
Price: 3770.00 INR
Availability: InStock

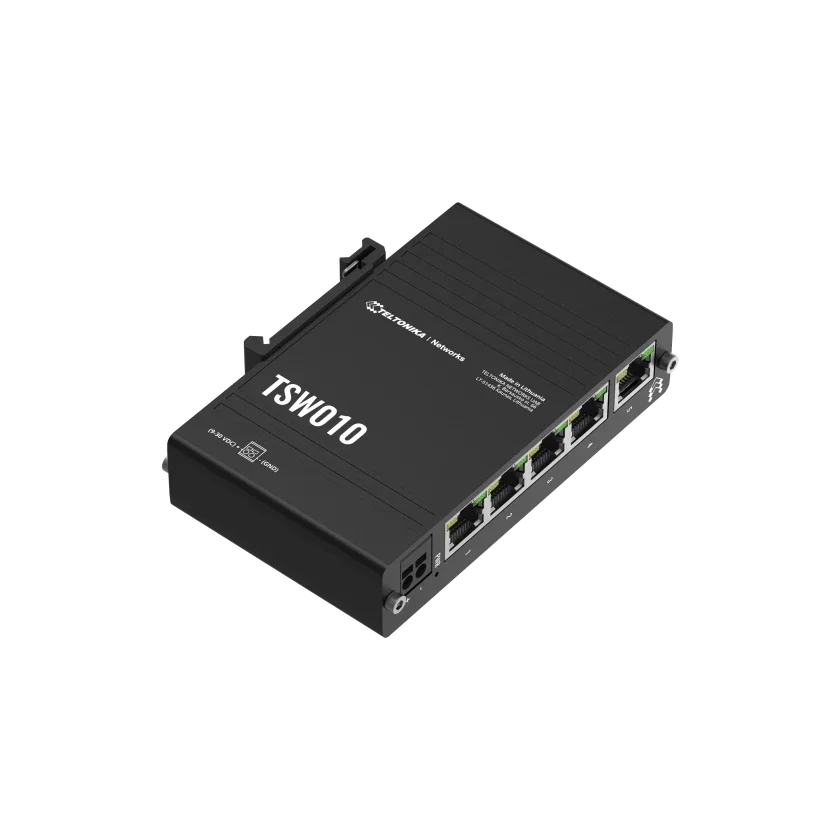

Teltonika TSW010 is a compact industrial Ethernet switch designed to extend network connectivity to multiple Ethernet devices. It provides five 10/100 Mbps Ethernet ports and a simple plug-and-play design, making it suitable for industrial applications where high throughput is not required.

The switch combines an anodized aluminium housing, integrated DIN rail mounting, and flexible power options in a compact form factor. Because no additional configuration is needed, installation can be straightforward in suitable industrial networking environments.

Teltonika TSW010 Key Features

Teltonika TSW010 is an unmanaged industrial Ethernet switch designed for simple and reliable network expansion. It provides five RJ45 Ethernet ports supporting 10/100 Mbps connections and uses automatic Ethernet functions to simplify device installation.

The switch supports Auto-Negotiation and automatic MDI/MDIX crossover. As a result, compatible Ethernet devices can establish the appropriate connection without requiring complex manual configuration.

5-Port Ethernet Connectivity

The five Ethernet ports provide wired connectivity for multiple network devices through standard RJ45 interfaces. Each port supports 10/100 Mbps Ethernet communication, which is suitable for applications that do not require Gigabit throughput.

Teltonika TSW010 supports IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3az standards. It also supports Auto-Negotiation and automatic MDI/MDIX crossover, helping simplify connections between compatible Ethernet equipment.

The switch provides 1 Gbps of non-blocking bandwidth and a 2K MAC address table. For example, several connected devices can communicate through the switch while its store-and-forward switching method processes Ethernet frames before forwarding them.

Industrial Design and Mounting

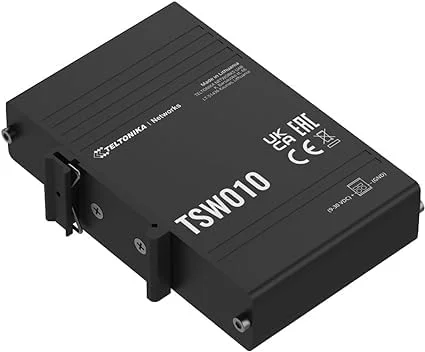

Teltonika TSW010 features an anodized aluminium housing and panels designed for professional industrial networking environments. Its compact dimensions help make it suitable for installations where equipment space needs to be used efficiently.

An integrated DIN rail bracket allows the switch to be mounted directly on compatible DIN rail installations. Wall mounting with an additional kit and flat-surface placement are also supported, providing flexibility for different installation requirements.

The specified operating temperature range is -40°C to +75°C, while operating humidity is specified at 10% to 90% non-condensing. Consequently, the switch can be deployed in professional environments where temperature and humidity conditions can vary within the specified limits.

Power and Network Performance

The switch uses a 2-pin industrial DC power socket with an input voltage range of 9–30 VDC. Passive PoE input through the first Ethernet port is also supported for compatible configurations, although it is not compatible with IEEE 802.3af, 802.3at, or 802.3bt standards.

Power consumption is specified at 0.3 W during idle operation and up to 0.9 W maximum. Because the switch is designed for straightforward Ethernet expansion, its low power requirements can be useful in installations where efficient networking equipment is preferred.

The device supports store-and-forward switching and 2048-byte jumbo frames. However, its Ethernet ports operate at 10/100 Mbps, so it is intended for network applications where Fast Ethernet performance is sufficient.

Applications

Teltonika TSW010 can be used to expand wired Ethernet connectivity across industrial and professional networking environments. Its compact design, plug-and-play operation, and DIN rail mounting make it suitable for straightforward network expansion.

Technical Specifications

Product Type: Compact Industrial Ethernet Switch
Switch Type: Unmanaged
Ethernet Ports: 5 × RJ45
Ethernet Speed: 10/100 Mbps
Bandwidth: 1 Gbps non-blocking
MAC Address Table: 2K entries
Jumbo Frame Support: 2048 bytes
Switch Processing: Store-and-Forward
Ethernet Standards: IEEE 802.3, 802.3u, 802.3x and 802.3az
Power Connector: 2-pin industrial DC power socket
Input Voltage: 9–30 VDC
Passive PoE: Supported through the first Ethernet port
Power Consumption: 0.3 W idle / 0.9 W maximum
Housing: Anodized aluminium housing and panels
Mounting: Integrated DIN rail bracket, wall mounting with additional kit, flat-surface placement
Operating Temperature: -40°C to +75°C
Operating Humidity: 10% to 90% non-condensing
Ingress Protection: IP30
Dimensions: 113.1 × 27.4 × 80.5 mm
Weight: Approximately 146.5 g

Buy Teltonika TSW010 in India

Teltonika TSW010 is designed for industrial Ethernet installations that need simple network expansion through five 10/100 Mbps ports. Its plug-and-play operation, compact aluminium construction, DIN rail mounting, and flexible power options make it suitable for professional networking deployments.

If you are looking for related networking equipment, explore Ethernet networking products from AirPath for additional connectivity solutions.

For complete specifications and manufacturer documentation, visit the official Teltonika TSW010 product page.

Frequently Asked Questions

What is Teltonika TSW010?

Teltonika TSW010 is a compact unmanaged industrial Ethernet switch with five 10/100 Mbps Ethernet ports. It is designed to extend wired network connectivity without requiring additional switch configuration.

How many Ethernet ports does Teltonika TSW010 have?

The switch has five RJ45 Ethernet ports supporting 10/100 Mbps connectivity. These ports can connect multiple Ethernet-enabled devices to the same network.

Does Teltonika TSW010 support DIN rail mounting?

Yes. The switch has an integrated DIN rail bracket. Wall mounting with an additional kit and flat-surface placement are also supported.

What power supply does Teltonika TSW010 use?

Teltonika TSW010 supports 9–30 VDC input through its 2-pin industrial DC power socket. Passive PoE input through the first Ethernet port is also supported for compatible configurations.
